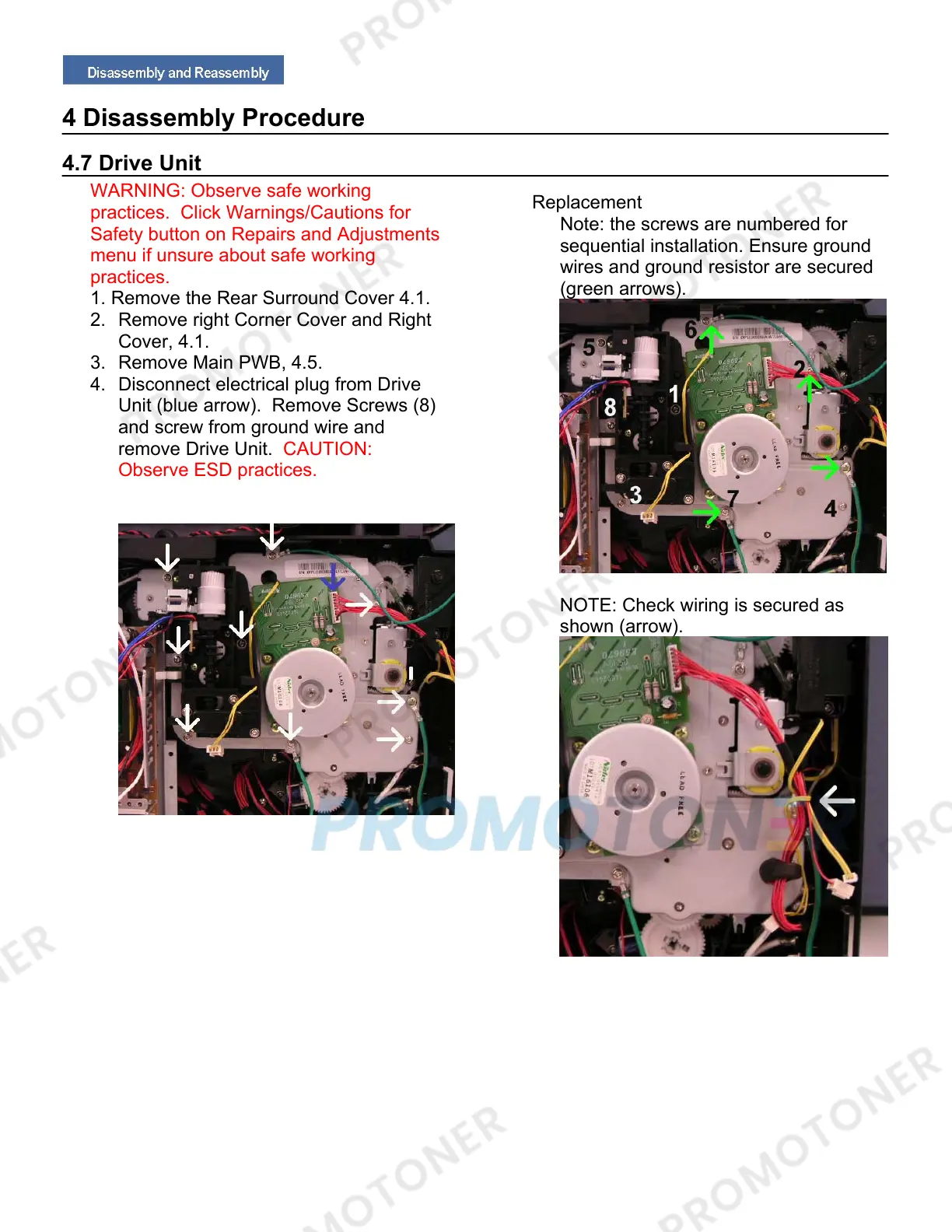

4 Disassembly Procedure
4.7 Drive Unit
WARNING: Observe safe working
practices. Click Warnings/Cautions for
Safety button on Repairs and Adjustments
menu if unsure about safe working
practices.
1. Remove the Rear Surround Cover 4.1.
2. Remove right Corner Cover and Right
Cover, 4.1.
3. Remove Main PWB, 4.5.
4. Disconnect electrical plug from Drive
Unit (blue arrow). Remove Screws (8)
and screw from ground wire and
remove Drive Unit. CAUTION:
Observe ESD practices.
Replacement
Note: the screws are numbered for
sequential installation. Ensure ground
wires and ground resistor are secured
(green arrows).
NOTE: Check wiring is secured as
shown (arrow).
