Xerox Phaser 6110 Service Documentation

S/W Structure and Descriptions
Overview

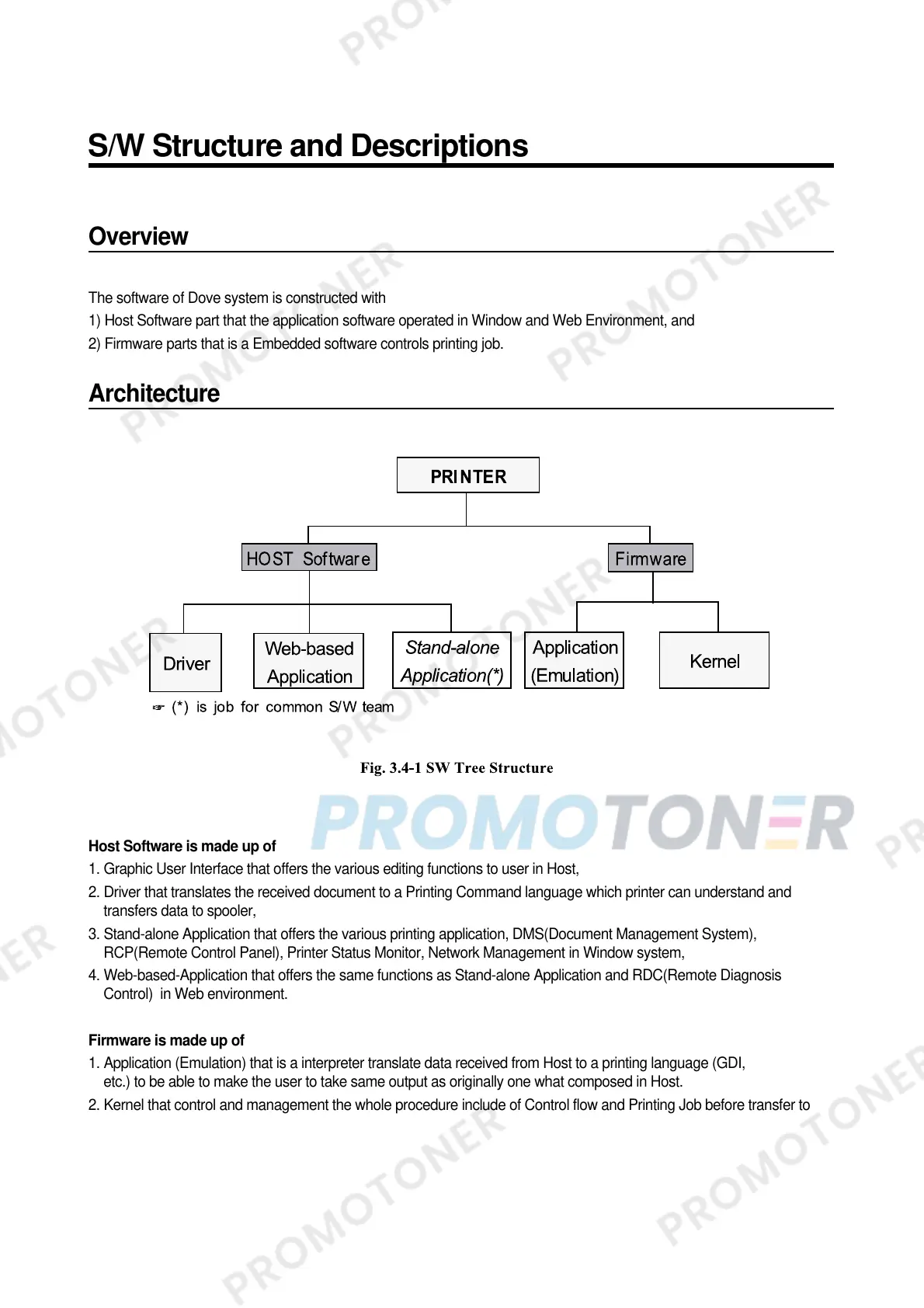

The software of Dove system is constructed with
1) Host Software part that the application software operated in Window and Web Environment, and
2) Firmware parts that is a Embedded software controls printing job.
Architecture
Host Software is made up of
1. Graphic User Interface that offers the various editing functions to user in Host,
2. Driver that translates the received document to a Printing Command language which printer can understand and
transfers data to spooler,
3. Stand-alone Application that offers the various printing application, DMS(Document Management System),
RCP(Remote Control Panel), Printer Status Monitor, Network Management in Window system,
4. Web-based-Application that offers the same functions as Stand-alone Application and RDC(Remote Diagnosis
Control) in Web environment.
Firmware is made up of
1. Application (Emulation) that is a interpreter translate data received from Host to a printing language (GDI,
etc.) to be able to make the user to take same output as originally one what composed in Host.
2. Kernel that control and management the whole procedure include of Control flow and Printing Job before transfer to

Xerox Phaser 6110 Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	2400 x 600 DPI
Time to first page (black, normal)	14 s
Time to first page (color, normal)	26 s
Print speed (black, normal quality, A4/US Letter)	17 ppm
Print speed (color, normal quality, A4/US Letter)	4 ppm
Internal memory	32 MB
Maximum internal memory	- MB
Sound power level (standby)	26 dB
Sound pressure level (printing)	47 dB
Total input capacity	150 sheets
Total output capacity	100 sheets
Maximum duty cycle	24200 pages per month
Maximum print size	216 x 356 mm
Media weight (tray 1)	60 - 163 g/sm2
Paper tray media types	Card stock, Envelopes, Plain paper, Transparencies
Non-ISO print media sizes	Folio (media size), Letter (media size)
ISO A-series sizes (A0...A9)	A4, A5
Maximum ISO A-series paper size	A4
Network ready	No
Power requirements	110 - 220 V, 50/60 Hz
Compatible operating systems	Windows 2000/XP/Vista Mac OS 10.3 - 10.4 Linux: Redhat 7.1 Mandrake 8.0 SuSE 7.1 Caldera Open Linux 3.1 Turbo Linux 7.0 Slackware 8.1
Acoustic power emissions (active, print, copy or scan)	34/56 dB
Sustainability certificates	ENERGY STAR
Power consumption (standby)	17 W
Power consumption (printing)	300 W
Display	-
Certification	FCC, CE, CB
Operating temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Dimensions (WxDxH)	390 x 344 x 265 mm
