Xerox Phaser 6110 Service Documentation

System Overview
3-7

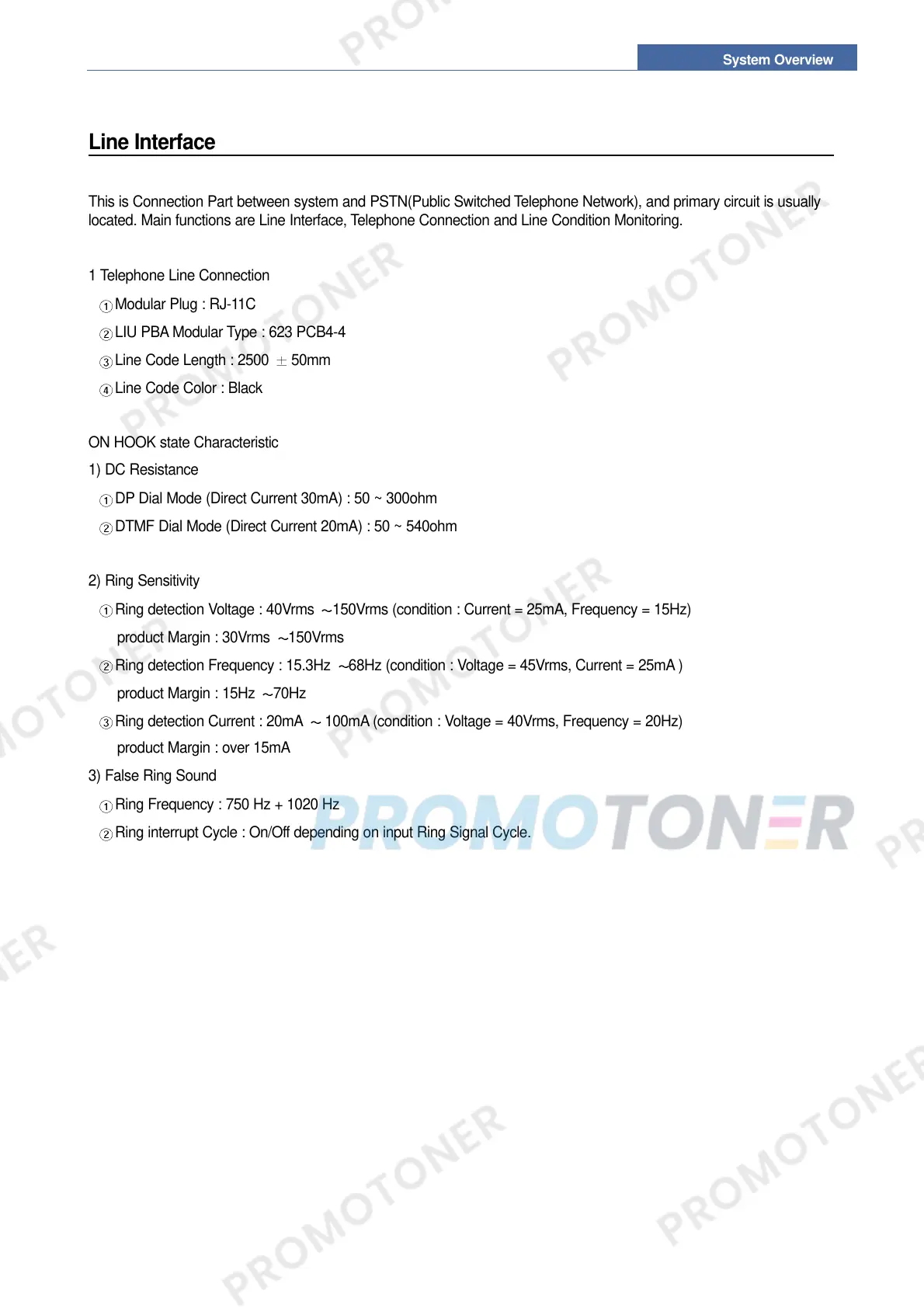

Line Interface
This is Connection Part between system and PSTN(Public Switched Telephone Network), and primary circuit is usually
located. Main functions are Line Interface, Telephone Connection and Line Condition Monitoring.
1 Telephone Line Connection
Modular Plug : RJ-11C
LIU PBA Modular Type : 623 PCB4-4
Line Code Length : 2500 50mm
Line Code Color : Black
ON HOOK state Characteristic
1) DC Resistance
DP Dial Mode (Direct Current 30mA) : 50 ~ 300ohm
DTMF Dial Mode (Direct Current 20mA) : 50 ~ 540ohm
2) Ring Sensitivity
Ring detection Voltage : 40Vrms 150Vrms (condition : Current = 25mA, Frequency = 15Hz)
product Margin : 30Vrms 150Vrms
Ring detection Frequency : 15.3Hz 68Hz (condition : Voltage = 45Vrms, Current = 25mA )
product Margin : 15Hz 70Hz
Ring detection Current : 20mA 100mA (condition : Voltage = 40Vrms, Frequency = 20Hz)
product Margin : over 15mA
3) False Ring Sound
Ring Frequency : 750 Hz + 1020 Hz
Ring interrupt Cycle : On/Off depending on input Ring Signal Cycle.

Xerox Phaser 6110 Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	2400 x 600 DPI
Time to first page (black, normal)	14 s
Time to first page (color, normal)	26 s
Print speed (black, normal quality, A4/US Letter)	17 ppm
Print speed (color, normal quality, A4/US Letter)	4 ppm
Internal memory	32 MB
Maximum internal memory	- MB
Sound power level (standby)	26 dB
Sound pressure level (printing)	47 dB
Total input capacity	150 sheets
Total output capacity	100 sheets
Maximum duty cycle	24200 pages per month
Maximum print size	216 x 356 mm
Media weight (tray 1)	60 - 163 g/sm2
Paper tray media types	Card stock, Envelopes, Plain paper, Transparencies
Non-ISO print media sizes	Folio (media size), Letter (media size)
ISO A-series sizes (A0...A9)	A4, A5
Maximum ISO A-series paper size	A4
Network ready	No
Power requirements	110 - 220 V, 50/60 Hz
Compatible operating systems	Windows 2000/XP/Vista Mac OS 10.3 - 10.4 Linux: Redhat 7.1 Mandrake 8.0 SuSE 7.1 Caldera Open Linux 3.1 Turbo Linux 7.0 Slackware 8.1
Acoustic power emissions (active, print, copy or scan)	34/56 dB
Sustainability certificates	ENERGY STAR
Power consumption (standby)	17 W
Power consumption (printing)	300 W
Display	-
Certification	FCC, CE, CB
Operating temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Dimensions (WxDxH)	390 x 344 x 265 mm
