System Overview
3-6

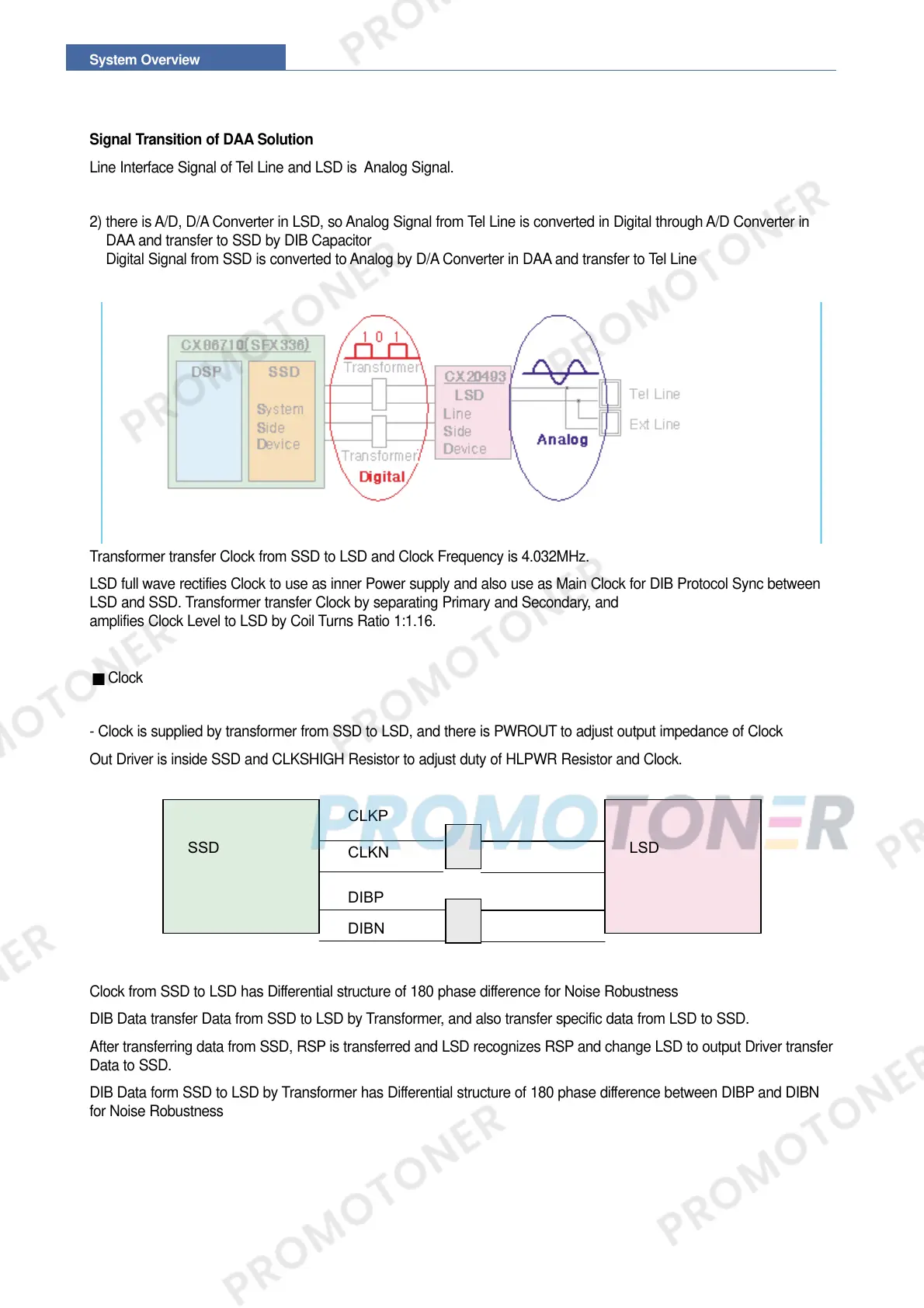

Signal Transition of DAA Solution
Line Interface Signal of Tel Line and LSD is Analog Signal.
2) there is A/D, D/A Converter in LSD, so Analog Signal from Tel Line is converted in Digital through A/D Converter in
DAA and transfer to SSD by DIB Capacitor
Digital Signal from SSD is converted to Analog by D/A Converter in DAA and transfer to Tel Line
Transformer transfer Clock from SSD to LSD and Clock Frequency is 4.032MHz.
LSD full wave rectifies Clock to use as inner Power supply and also use as Main Clock for DIB Protocol Sync between
LSD and SSD. Transformer transfer Clock by separating Primary and Secondary, and
amplifies Clock Level to LSD by Coil Turns Ratio 1:1.16.
Clock
- Clock is supplied by transformer from SSD to LSD, and there is PWROUT to adjust output impedance of Clock
Out Driver is inside SSD and CLKSHIGH Resistor to adjust duty of HLPWR Resistor and Clock.
Clock from SSD to LSD has Differential structure of 180 phase difference for Noise Robustness
DIB Data transfer Data from SSD to LSD by Transformer, and also transfer specific data from LSD to SSD.
After transferring data from SSD, RSP is transferred and LSD recognizes RSP and change LSD to output Driver transfer
Data to SSD.
DIB Data form SSD to LSD by Transformer has Differential structure of 180 phase difference between DIBP and DIBN
for Noise Robustness
