Xerox Phaser 6110 Service Documentation

System Overview
3-5

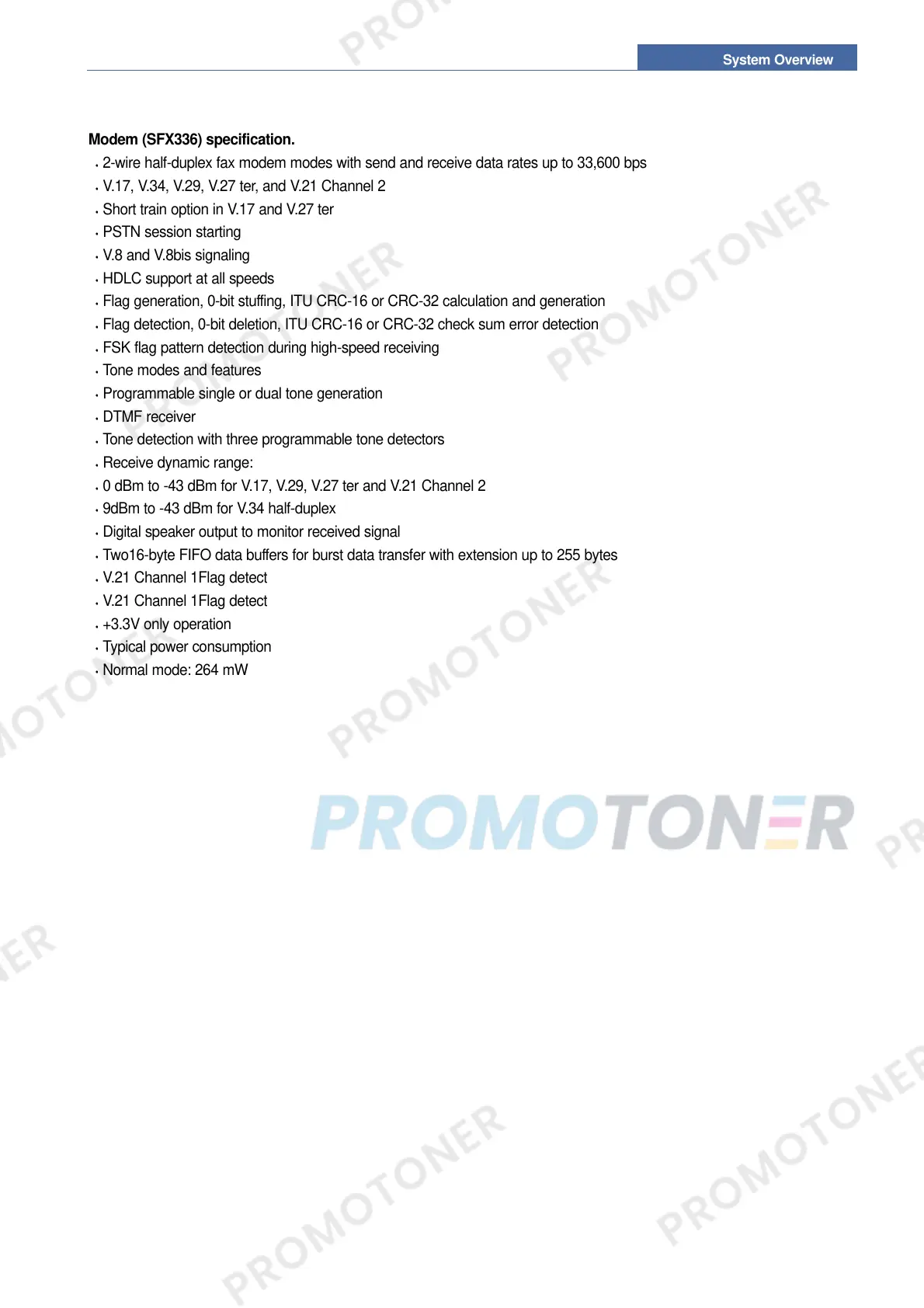

Modem (SFX336) specification.
2-wire half-duplex fax modem modes with send and receive data rates up to 33,600 bps
V.17, V.34, V.29, V.27 ter, and V.21 Channel 2
Short train option in V.17 and V.27 ter
PSTN session starting
V.8 and V.8bis signaling
HDLC support at all speeds
Flag generation, 0-bit stuffing, ITU CRC-16 or CRC-32 calculation and generation
Flag detection, 0-bit deletion, ITU CRC-16 or CRC-32 check sum error detection
FSK flag pattern detection during high-speed receiving
Tone modes and features
Programmable single or dual tone generation
DTMF receiver
Tone detection with three programmable tone detectors
Receive dynamic range:
0 dBm to -43 dBm for V.17, V.29, V.27 ter and V.21 Channel 2
9dBm to -43 dBm for V.34 half-duplex
Digital speaker output to monitor received signal
Two16-byte FIFO data buffers for burst data transfer with extension up to 255 bytes
V.21 Channel 1Flag detect
V.21 Channel 1Flag detect
+3.3V only operation
Typical power consumption
Normal mode: 264 mW

Xerox Phaser 6110 Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	2400 x 600 DPI
Time to first page (black, normal)	14 s
Time to first page (color, normal)	26 s
Print speed (black, normal quality, A4/US Letter)	17 ppm
Print speed (color, normal quality, A4/US Letter)	4 ppm
Internal memory	32 MB
Maximum internal memory	- MB
Sound power level (standby)	26 dB
Sound pressure level (printing)	47 dB
Total input capacity	150 sheets
Total output capacity	100 sheets
Maximum duty cycle	24200 pages per month
Maximum print size	216 x 356 mm
Media weight (tray 1)	60 - 163 g/sm2
Paper tray media types	Card stock, Envelopes, Plain paper, Transparencies
Non-ISO print media sizes	Folio (media size), Letter (media size)
ISO A-series sizes (A0...A9)	A4, A5
Maximum ISO A-series paper size	A4
Network ready	No
Power requirements	110 - 220 V, 50/60 Hz
Compatible operating systems	Windows 2000/XP/Vista Mac OS 10.3 - 10.4 Linux: Redhat 7.1 Mandrake 8.0 SuSE 7.1 Caldera Open Linux 3.1 Turbo Linux 7.0 Slackware 8.1
Acoustic power emissions (active, print, copy or scan)	34/56 dB
Sustainability certificates	ENERGY STAR
Power consumption (standby)	17 W
Power consumption (printing)	300 W
Display	-
Certification	FCC, CE, CB
Operating temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Dimensions (WxDxH)	390 x 344 x 265 mm
