Xerox Phaser 6110 Service Documentation

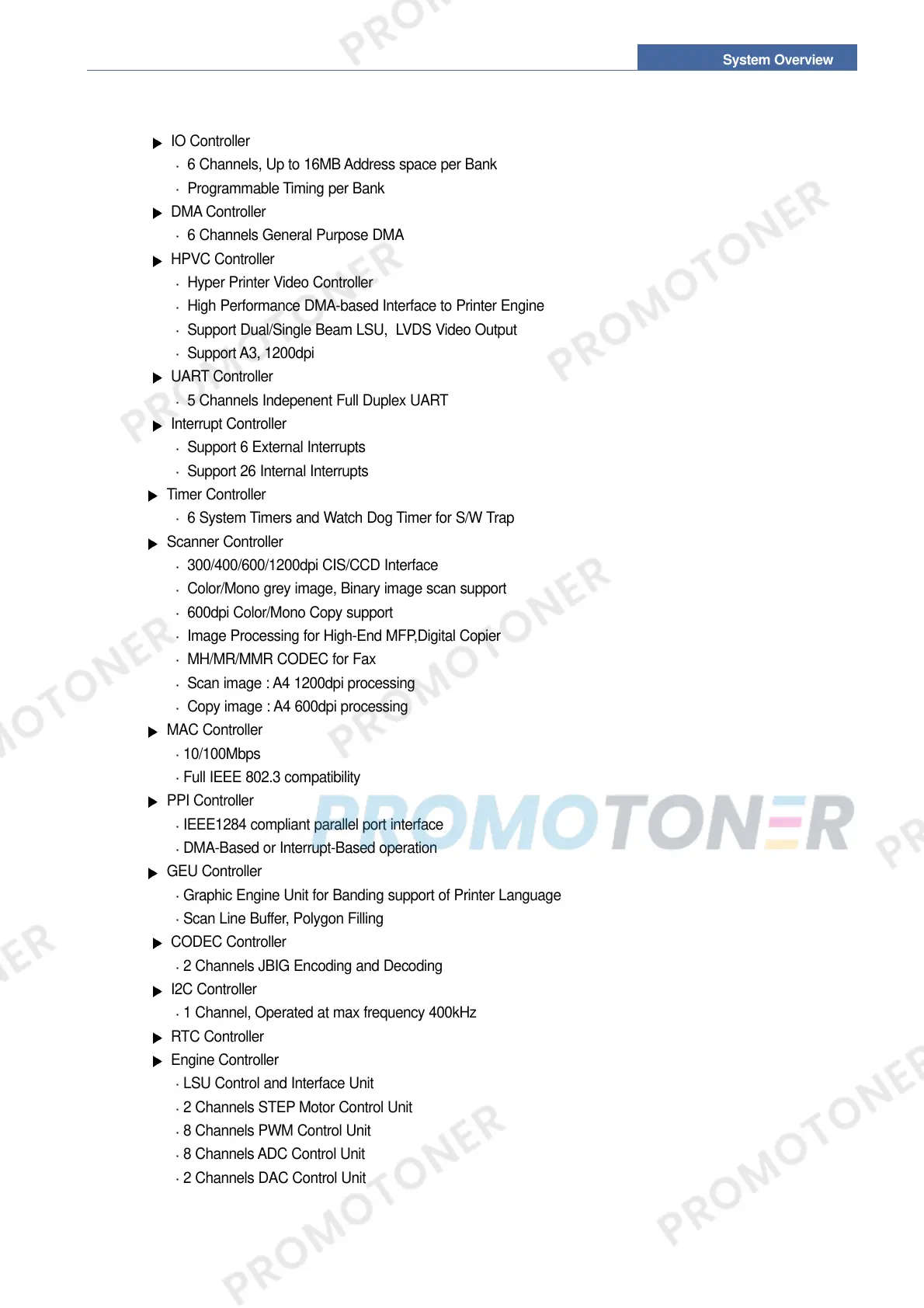

System Overview
3-17
IO Controller
6 Channels, Up to 16MB Address space per Bank
Programmable Timing per Bank
DMA Controller
6 Channels General Purpose DMA
HPVC Controller
Hyper Printer Video Controller
High Performance DMA-based Interface to Printer Engine
Support Dual/Single Beam LSU, LVDS Video Output
Support A3, 1200dpi
UART Controller
5 Channels Indepenent Full Duplex UART
Interrupt Controller
Support 6 External Interrupts
Support 26 Internal Interrupts
Timer Controller
6 System Timers and Watch Dog Timer for S/W Trap
Scanner Controller
300/400/600/1200dpi CIS/CCD Interface
Color/Mono grey image, Binary image scan support
600dpi Color/Mono Copy support
Image Processing for High-End MFP,Digital Copier
MH/MR/MMR CODEC for Fax
Scan image : A4 1200dpi processing
Copy image : A4 600dpi processing
MAC Controller
10/100Mbps
Full IEEE 802.3 compatibility
PPI Controller
IEEE1284 compliant parallel port interface
DMA-Based or Interrupt-Based operation
GEU Controller
Graphic Engine Unit for Banding support of Printer Language
Scan Line Buffer, Polygon Filling
CODEC Controller
2 Channels JBIG Encoding and Decoding
I2C Controller
1 Channel, Operated at max frequency 400kHz
RTC Controller
Engine Controller
LSU Control and Interface Unit
2 Channels STEP Motor Control Unit
8 Channels PWM Control Unit
8 Channels ADC Control Unit
2 Channels DAC Control Unit

Xerox Phaser 6110 Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	2400 x 600 DPI
Time to first page (black, normal)	14 s
Time to first page (color, normal)	26 s
Print speed (black, normal quality, A4/US Letter)	17 ppm
Print speed (color, normal quality, A4/US Letter)	4 ppm
Internal memory	32 MB
Maximum internal memory	- MB
Sound power level (standby)	26 dB
Sound pressure level (printing)	47 dB
Total input capacity	150 sheets
Total output capacity	100 sheets
Maximum duty cycle	24200 pages per month
Maximum print size	216 x 356 mm
Media weight (tray 1)	60 - 163 g/sm2
Paper tray media types	Card stock, Envelopes, Plain paper, Transparencies
Non-ISO print media sizes	Folio (media size), Letter (media size)
ISO A-series sizes (A0...A9)	A4, A5
Maximum ISO A-series paper size	A4
Network ready	No
Power requirements	110 - 220 V, 50/60 Hz
Compatible operating systems	Windows 2000/XP/Vista Mac OS 10.3 - 10.4 Linux: Redhat 7.1 Mandrake 8.0 SuSE 7.1 Caldera Open Linux 3.1 Turbo Linux 7.0 Slackware 8.1
Acoustic power emissions (active, print, copy or scan)	34/56 dB
Sustainability certificates	ENERGY STAR
Power consumption (standby)	17 W
Power consumption (printing)	300 W
Display	-
Certification	FCC, CE, CB
Operating temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Dimensions (WxDxH)	390 x 344 x 265 mm
