Xerox Phaser 6110 Service Documentation

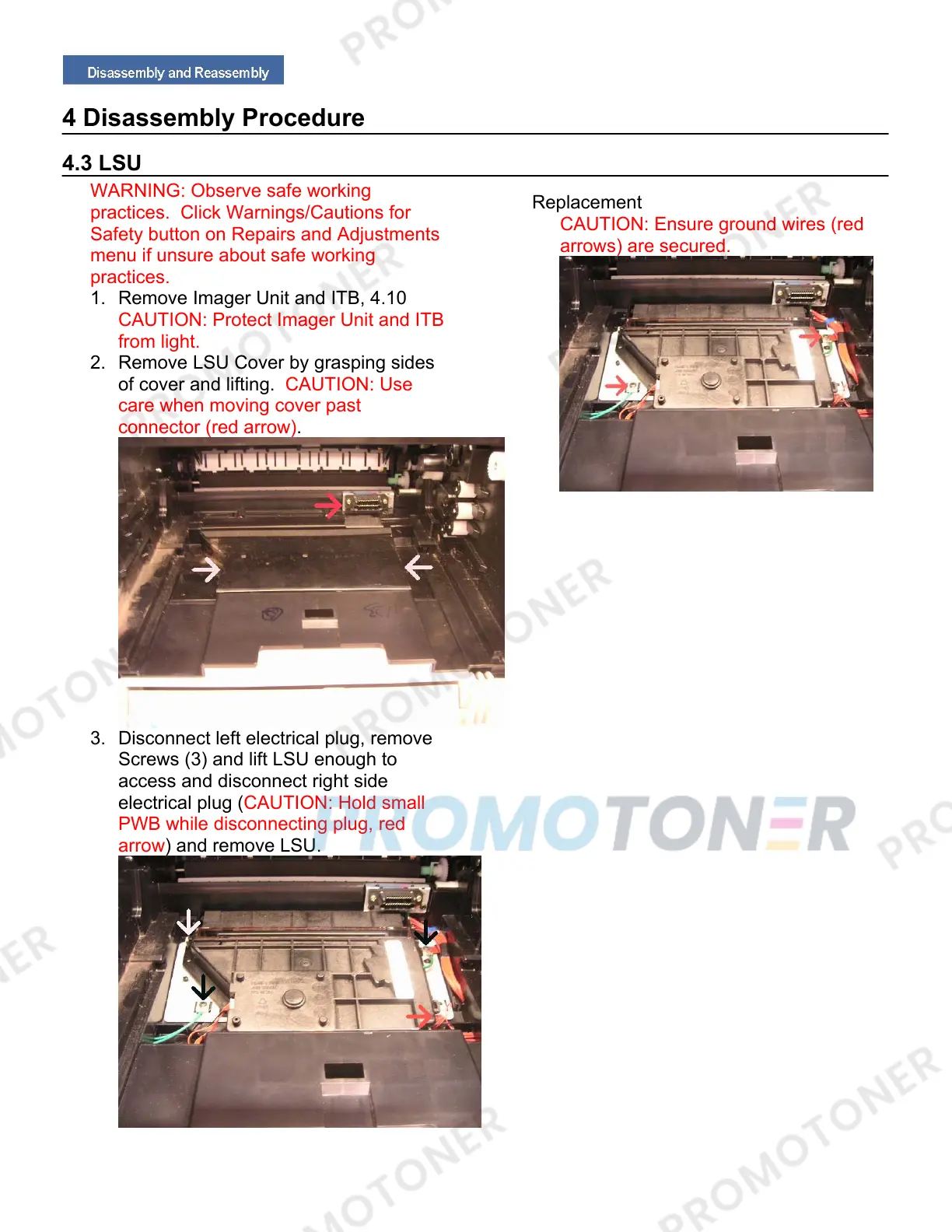

4 Disassembly Procedure
4.3 LSU
WARNING: Observe safe working
practices. Click Warnings/Cautions for
Safety button on Repairs and Adjustments
menu if unsure about safe working
practices.
1. Remove Imager Unit and ITB, 4.10
CAUTION: Protect Imager Unit and ITB
from light.
2. Remove LSU Cover by grasping sides
of cover and lifting. CAUTION: Use
care when moving cover past
connector (red arrow).
3. Disconnect left electrical plug, remove
Screws (3) and lift LSU enough to
access and disconnect right side
electrical plug (CAUTION: Hold small
PWB while disconnecting plug, red
arrow) and remove LSU.
Replacement
CAUTION: Ensure ground wires (red
arrows) are secured.

Xerox Phaser 6110 Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	2400 x 600 DPI
Time to first page (black, normal)	14 s
Time to first page (color, normal)	26 s
Print speed (black, normal quality, A4/US Letter)	17 ppm
Print speed (color, normal quality, A4/US Letter)	4 ppm
Internal memory	32 MB
Maximum internal memory	- MB
Sound power level (standby)	26 dB
Sound pressure level (printing)	47 dB
Total input capacity	150 sheets
Total output capacity	100 sheets
Maximum duty cycle	24200 pages per month
Maximum print size	216 x 356 mm
Media weight (tray 1)	60 - 163 g/sm2
Paper tray media types	Card stock, Envelopes, Plain paper, Transparencies
Non-ISO print media sizes	Folio (media size), Letter (media size)
ISO A-series sizes (A0...A9)	A4, A5
Maximum ISO A-series paper size	A4
Network ready	No
Power requirements	110 - 220 V, 50/60 Hz
Compatible operating systems	Windows 2000/XP/Vista Mac OS 10.3 - 10.4 Linux: Redhat 7.1 Mandrake 8.0 SuSE 7.1 Caldera Open Linux 3.1 Turbo Linux 7.0 Slackware 8.1
Acoustic power emissions (active, print, copy or scan)	34/56 dB
Sustainability certificates	ENERGY STAR
Power consumption (standby)	17 W
Power consumption (printing)	300 W
Display	-
Certification	FCC, CE, CB
Operating temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Dimensions (WxDxH)	390 x 344 x 265 mm
