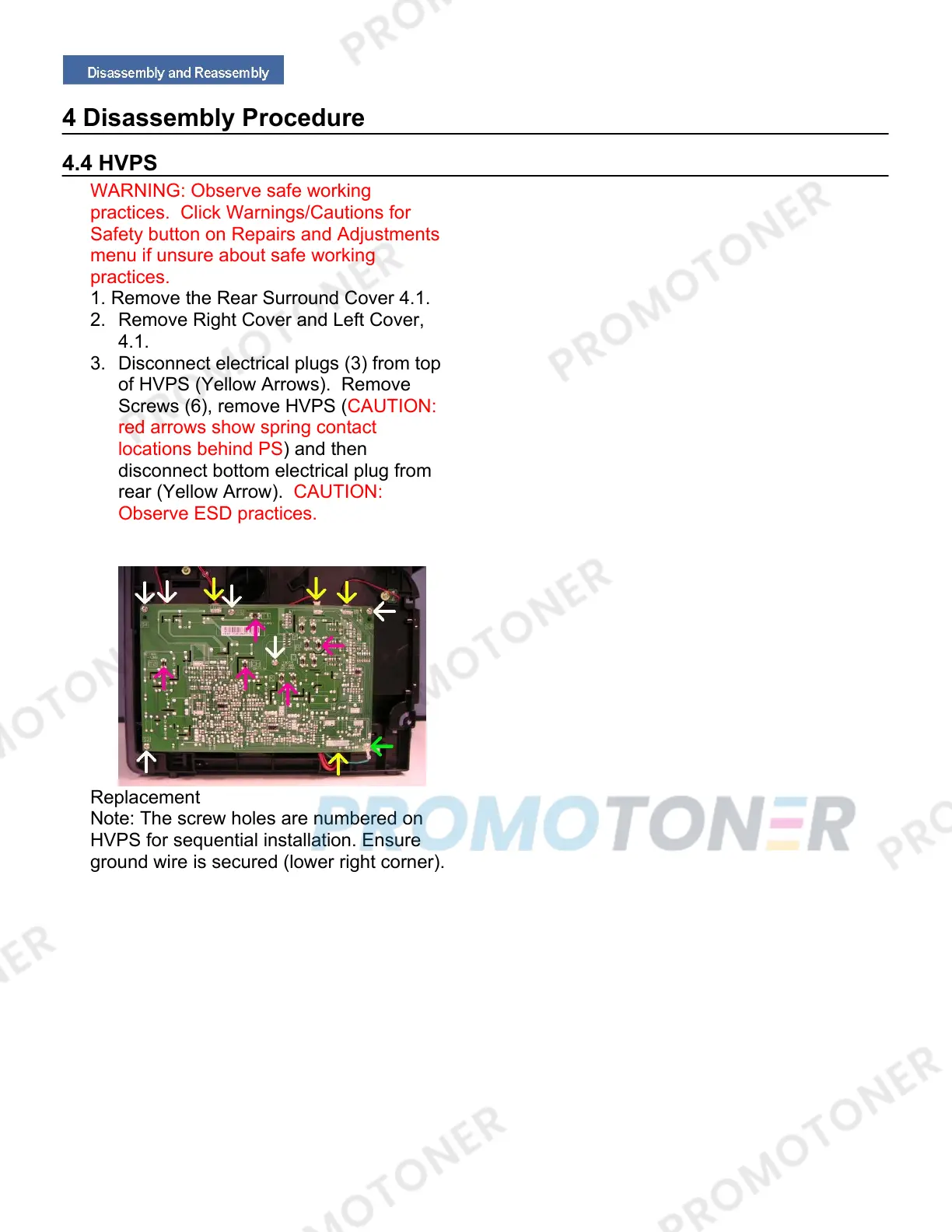

4 Disassembly Procedure
4.4 HVPS
WARNING: Observe safe working
practices. Click Warnings/Cautions for
Safety button on Repairs and Adjustments
menu if unsure about safe working
practices.
1. Remove the Rear Surround Cover 4.1.
2. Remove Right Cover and Left Cover,
4.1.
3. Disconnect electrical plugs (3) from top
of HVPS (Yellow Arrows). Remove
Screws (6), remove HVPS (CAUTION:
red arrows show spring contact
locations behind PS) and then
disconnect bottom electrical plug from
rear (Yellow Arrow). CAUTION:
Observe ESD practices.
Replacement
Note: The screw holes are numbered on
HVPS for sequential installation. Ensure
ground wire is secured (lower right corner).
