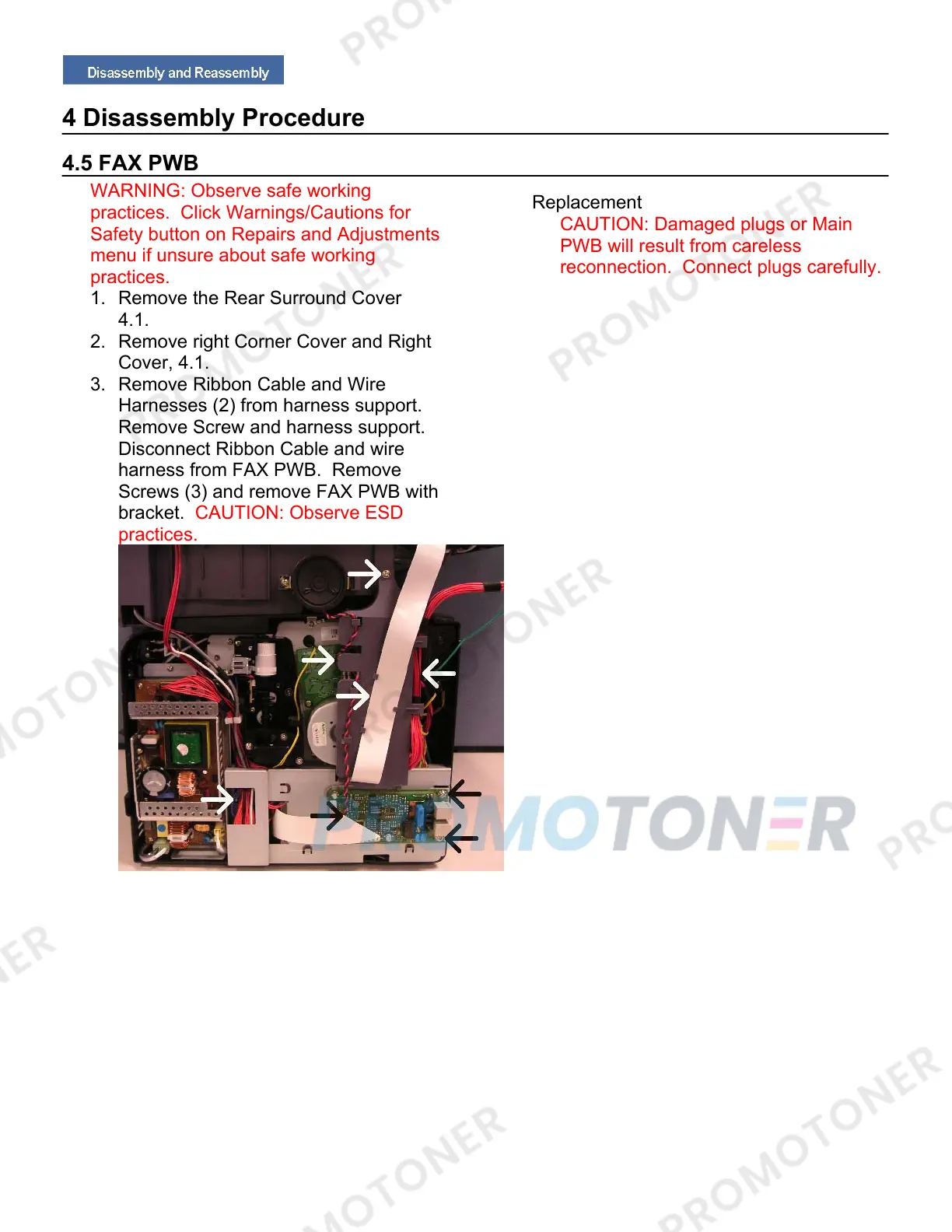

4 Disassembly Procedure
4.5 FAX PWB
WARNING: Observe safe working
practices. Click Warnings/Cautions for
Safety button on Repairs and Adjustments
menu if unsure about safe working
practices.
1. Remove the Rear Surround Cover
4.1.
2. Remove right Corner Cover and Right
Cover, 4.1.
3. Remove Ribbon Cable and Wire
Harnesses (2) from harness support.
Remove Screw and harness support.
Disconnect Ribbon Cable and wire
harness from FAX PWB. Remove
Screws (3) and remove FAX PWB with
bracket. CAUTION: Observe ESD
practices.
Replacement
CAUTION: Damaged plugs or Main
PWB will result from careless
reconnection. Connect plugs carefully.
