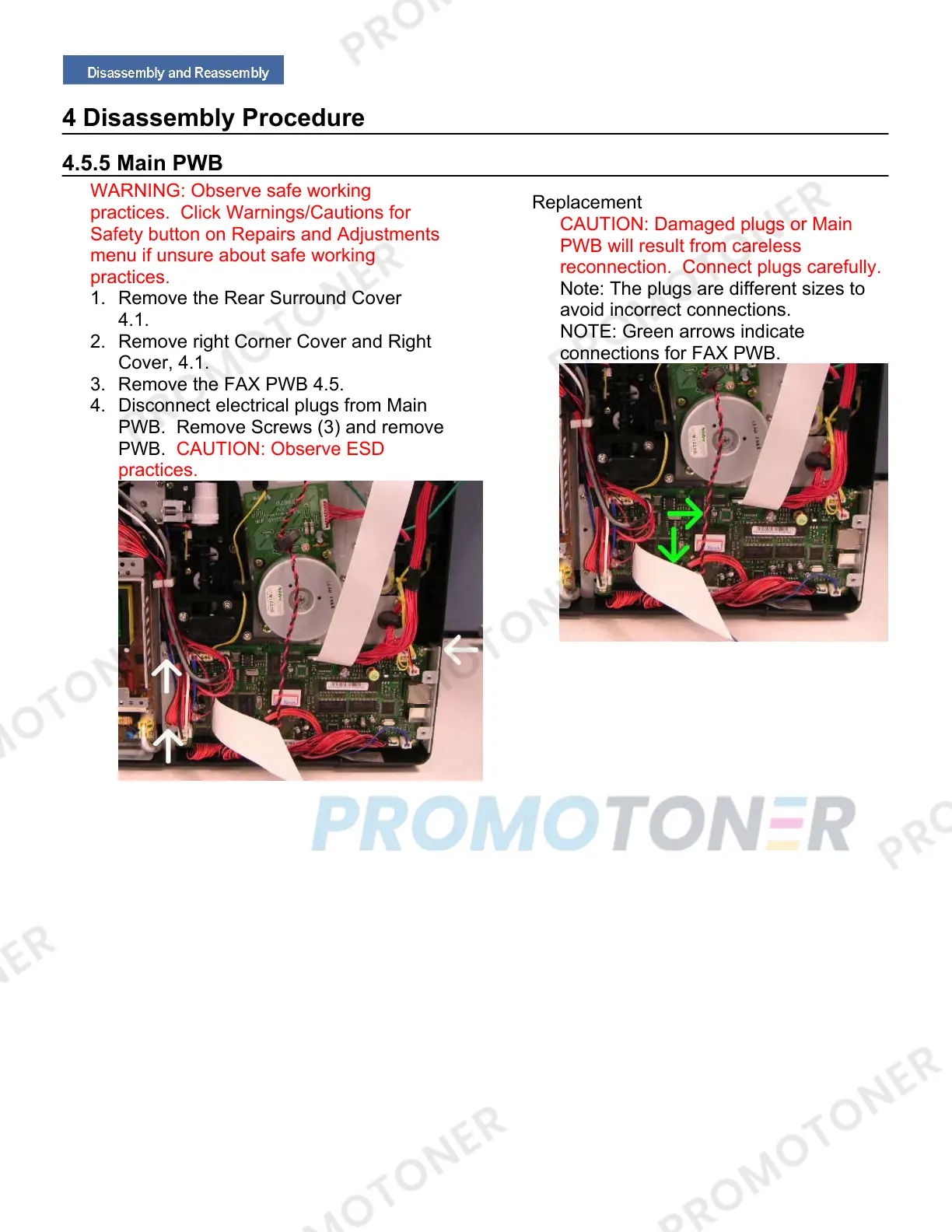

4 Disassembly Procedure
4.5.5 Main PWB
WARNING: Observe safe working
practices. Click Warnings/Cautions for
Safety button on Repairs and Adjustments
menu if unsure about safe working
practices.
1. Remove the Rear Surround Cover
4.1.
2. Remove right Corner Cover and Right
Cover, 4.1.
3. Remove the FAX PWB 4.5.
4. Disconnect electrical plugs from Main
PWB. Remove Screws (3) and remove
PWB. CAUTION: Observe ESD
practices.
Replacement
CAUTION: Damaged plugs or Main
PWB will result from careless
reconnection. Connect plugs carefully.
Note: The plugs are different sizes to
avoid incorrect connections.
NOTE: Green arrows indicate
connections for FAX PWB.
