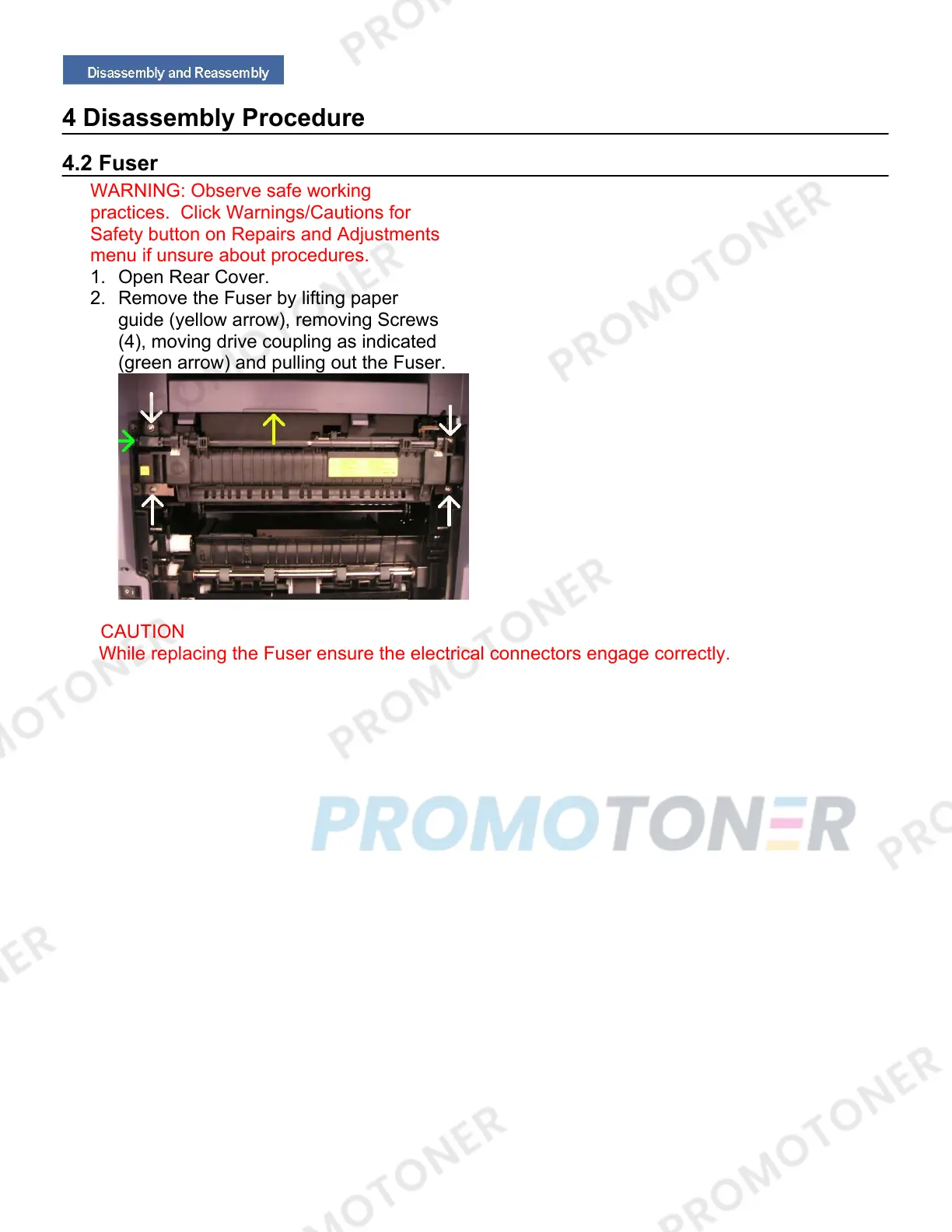

4 Disassembly Procedure
4.2 Fuser
WARNING: Observe safe working
practices. Click Warnings/Cautions for
Safety button on Repairs and Adjustments
menu if unsure about procedures.
1. Open Rear Cover.
2. Remove the Fuser by lifting paper
guide (yellow arrow), removing Screws
(4), moving drive coupling as indicated
(green arrow) and pulling out the Fuser.
CAUTION
While replacing the Fuser ensure the electrical connectors engage correctly.
