Disassembly and Reassembly

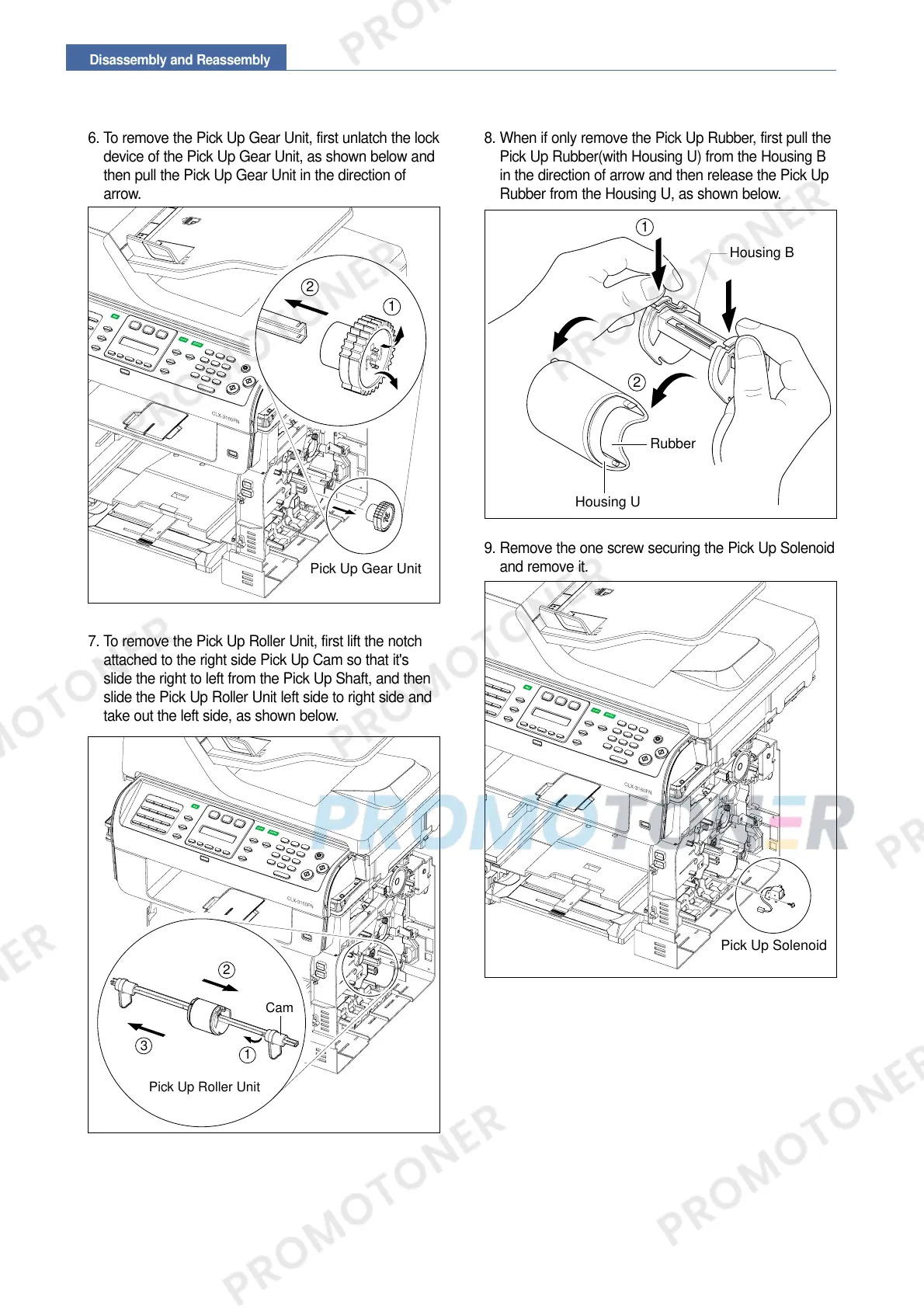

6. To remove the Pick Up Gear Unit, first unlatch the lock
device of the Pick Up Gear Unit, as shown below and
then pull the Pick Up Gear Unit in the direction of
arrow.
7. To remove the Pick Up Roller Unit, first lift the notch
attached to the right side Pick Up Cam so that it's
slide the right to left from the Pick Up Shaft, and then
slide the Pick Up Roller Unit left side to right side and
take out the left side, as shown below.
8. When if only remove the Pick Up Rubber, first pull the
Pick Up Rubber(with Housing U) from the Housing B
in the direction of arrow and then release the Pick Up
Rubber from the Housing U, as shown below.
9. Remove the one screw securing the Pick Up Solenoid
and remove it.
