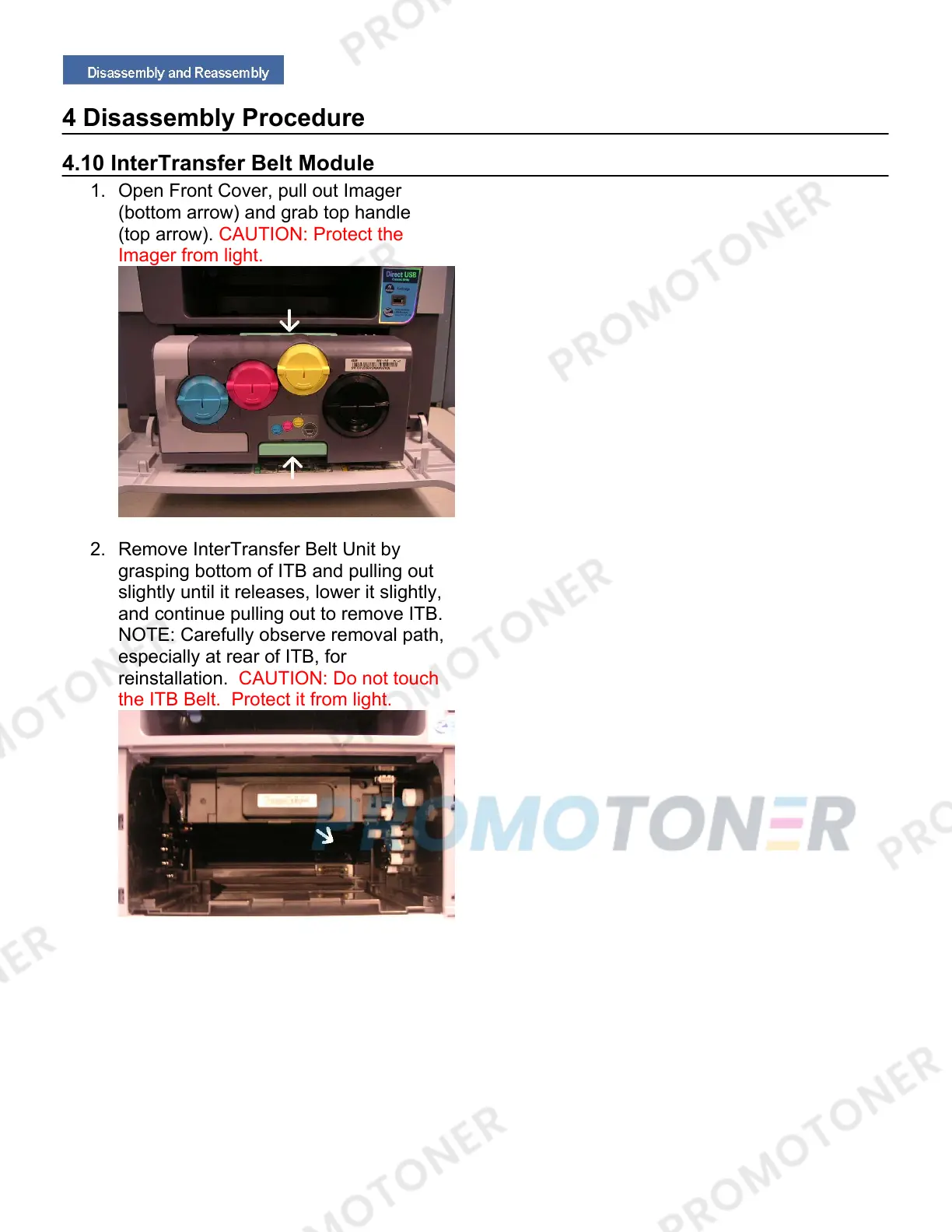

4 Disassembly Procedure
4.10 InterTransfer Belt Module
1. Open Front Cover, pull out Imager
(bottom arrow) and grab top handle
(top arrow). CAUTION: Protect the
Imager from light.
2. Remove InterTransfer Belt Unit by
grasping bottom of ITB and pulling out
slightly until it releases, lower it slightly,
and continue pulling out to remove ITB.
NOTE: Carefully observe removal path,
especially at rear of ITB, for
reinstallation. CAUTION: Do not touch
the ITB Belt. Protect it from light.
