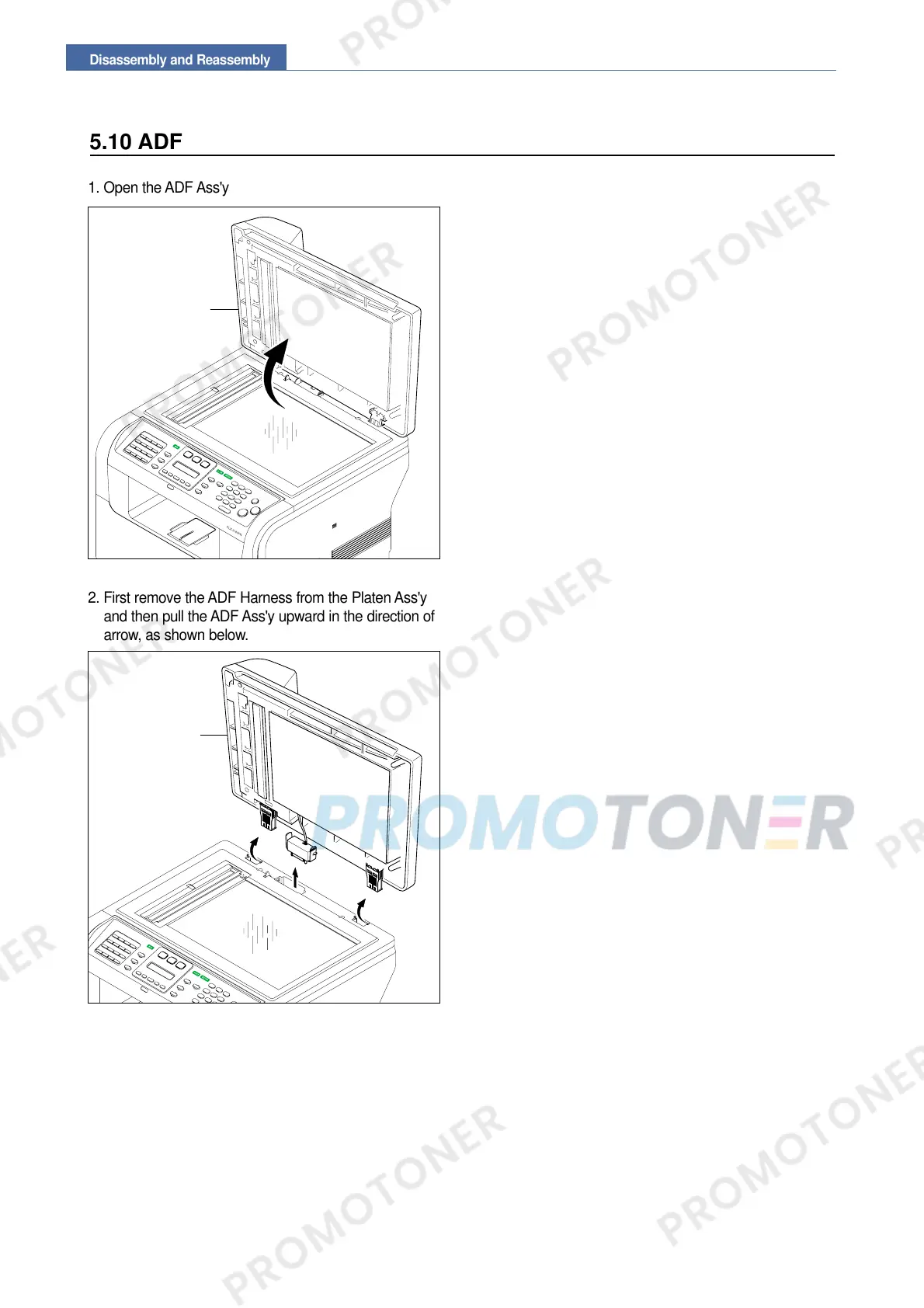

Disassembly and Reassembly
1. Open the ADF Ass'y
2. First remove the ADF Harness from the Platen Ass'y
and then pull the ADF Ass'y upward in the direction of
arrow, as shown below.
5.10 ADF
