Xerox PrimeLink B9100 User Manual

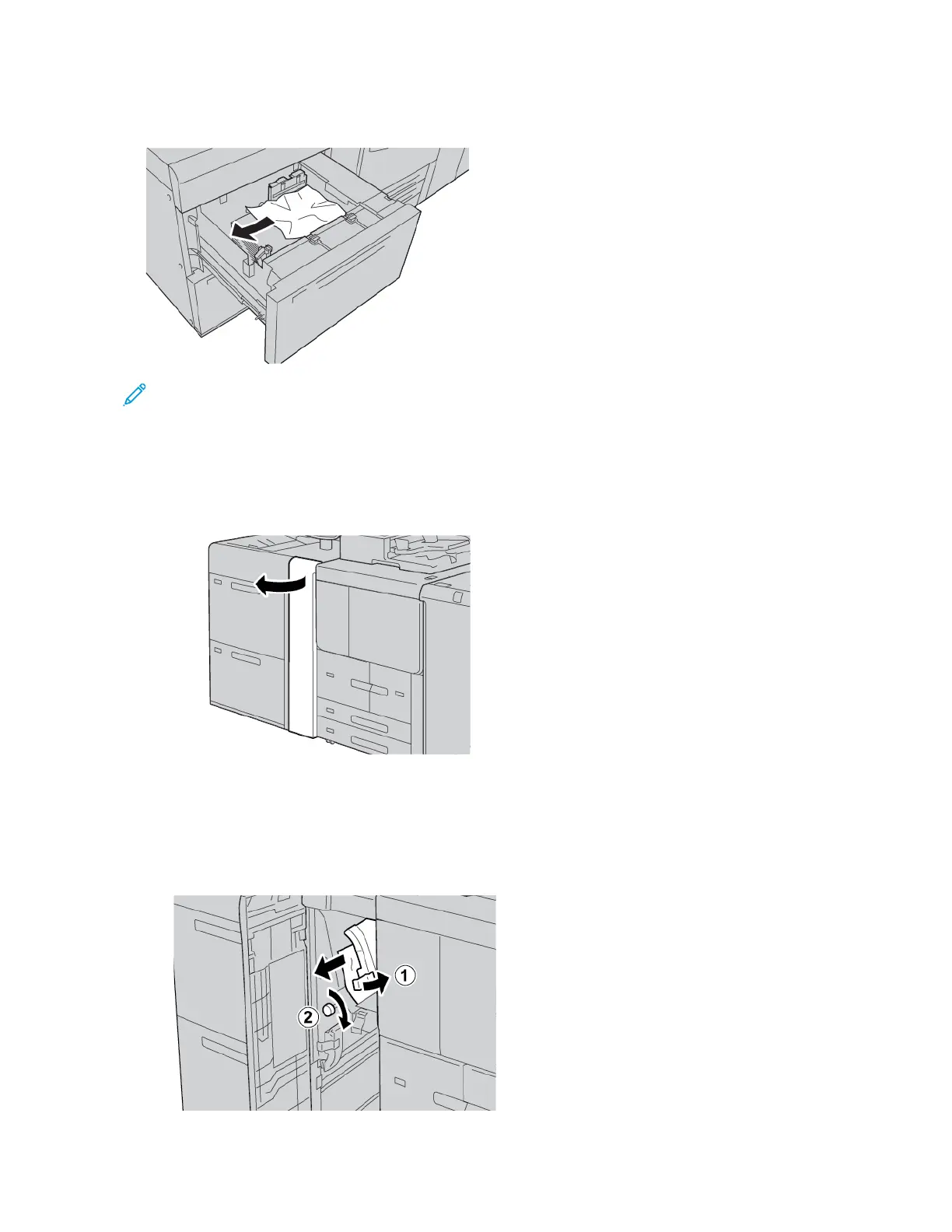

2. Remove the jammed paper.
Note: If paper is torn, check inside the printer, then remove the torn paper.
3. Gently push in the tray until it stops.
OHCF Paper Jams at Lever 1a and Knob 1c
1. Open the front cover of the OHCF.
2. To remove the jammed paper, do the following steps:
a. Pull the lever 11aa to the right.
b. Rotate the knob 11cc to the right.
c. Remove the jammed paper.
322 Xerox
®
PrimeLink
®
B9100/B9110/B9125/B9136 Copier/Printer User Guide
Oversized High Capacity Feeder

Xerox PrimeLink B9100 Specifications

General

Recommended Monthly Print Volume	70, 000 - 700, 000 pages
Duplex Printing	Standard
Type	Multifunction Printer
Print Technology	Laser
Supported Operating Systems	Windows, Mac OS, Linux
Print Resolution	2400 x 2400 dpi
First-page-out time, printing	4.1 seconds
Network Connectivity	Ethernet
Supported Media Sizes	A3, A4, A5, B4, B5
Weight	210 kg
Print Speed (Black)	100 ppm
