Xerox PrimeLink B9100 User Manual

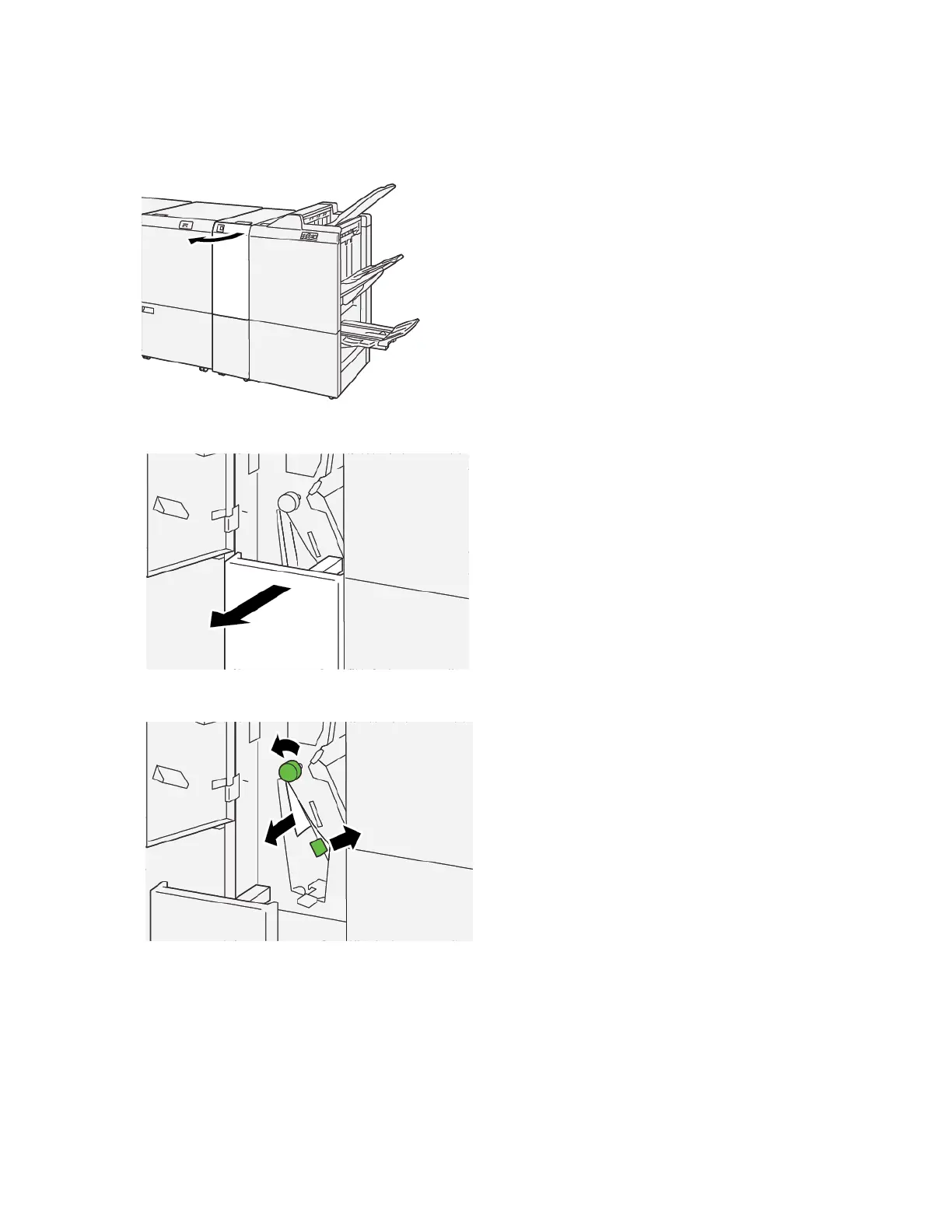

Clearing Paper Jams from Folder Area E12
1. Open the folder front cover.
2. Pull open the C/Z fold output tray 22dd.
3. To remove jammed paper, do the following:
a. Pull lever 22ee to the right.
b. Rotate knob 22cc counterclockwise.
c. Remove the jammed paper.
410
Xerox
®
PrimeLink
®
B9100/B9110/B9125/B9136 Copier/Printer User Guide
C/Z Folder

Xerox PrimeLink B9100 Specifications

General

Recommended Monthly Print Volume	70, 000 - 700, 000 pages
Duplex Printing	Standard
Type	Multifunction Printer
Print Technology	Laser
Supported Operating Systems	Windows, Mac OS, Linux
Print Resolution	2400 x 2400 dpi
First-page-out time, printing	4.1 seconds
Network Connectivity	Ethernet
Supported Media Sizes	A3, A4, A5, B4, B5
Weight	210 kg
Print Speed (Black)	100 ppm
