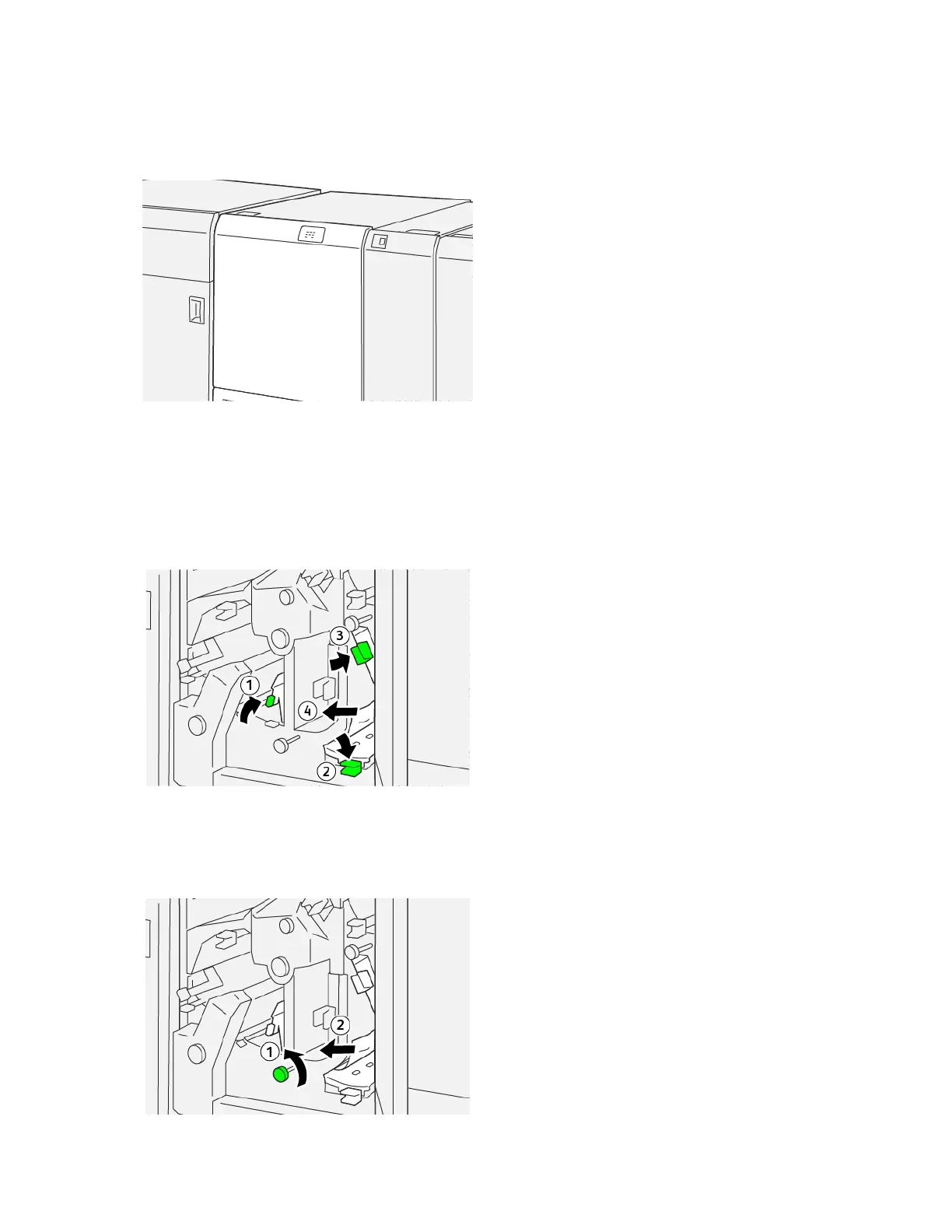

Clearing Paper Jams from Trimmer Area E6
1. Open the trimmer upper cover.
2. To remove the jammed paper, perform the following steps:
a. Move lever 33aa to the right.
b. Push down lever 44bb.
c. Move lever 44cc to the right.
d. Remove the jammed paper.
3. To remove the jammed paper, perform the following steps:
a. Rotate knob 44dd counterclockwise.
b. Remove the jammed paper.
Xerox
®
PrimeLink
®
B9100/B9110/B9125/B9136 Copier/Printer User Guide 395
Crease and Two-Sided Trimmer

Xerox PrimeLink B9100 Specifications

General

Recommended Monthly Print Volume	70, 000 - 700, 000 pages
Duplex Printing	Standard
Type	Multifunction Printer
Print Technology	Laser
Supported Operating Systems	Windows, Mac OS, Linux
Print Resolution	2400 x 2400 dpi
First-page-out time, printing	4.1 seconds
Network Connectivity	Ethernet
Supported Media Sizes	A3, A4, A5, B4, B5
Weight	210 kg
Print Speed (Black)	100 ppm
