Xerox PrimeLink B9100 User Manual

5. Return lever 11cc to the original position.
6. Close the inserter front cover.

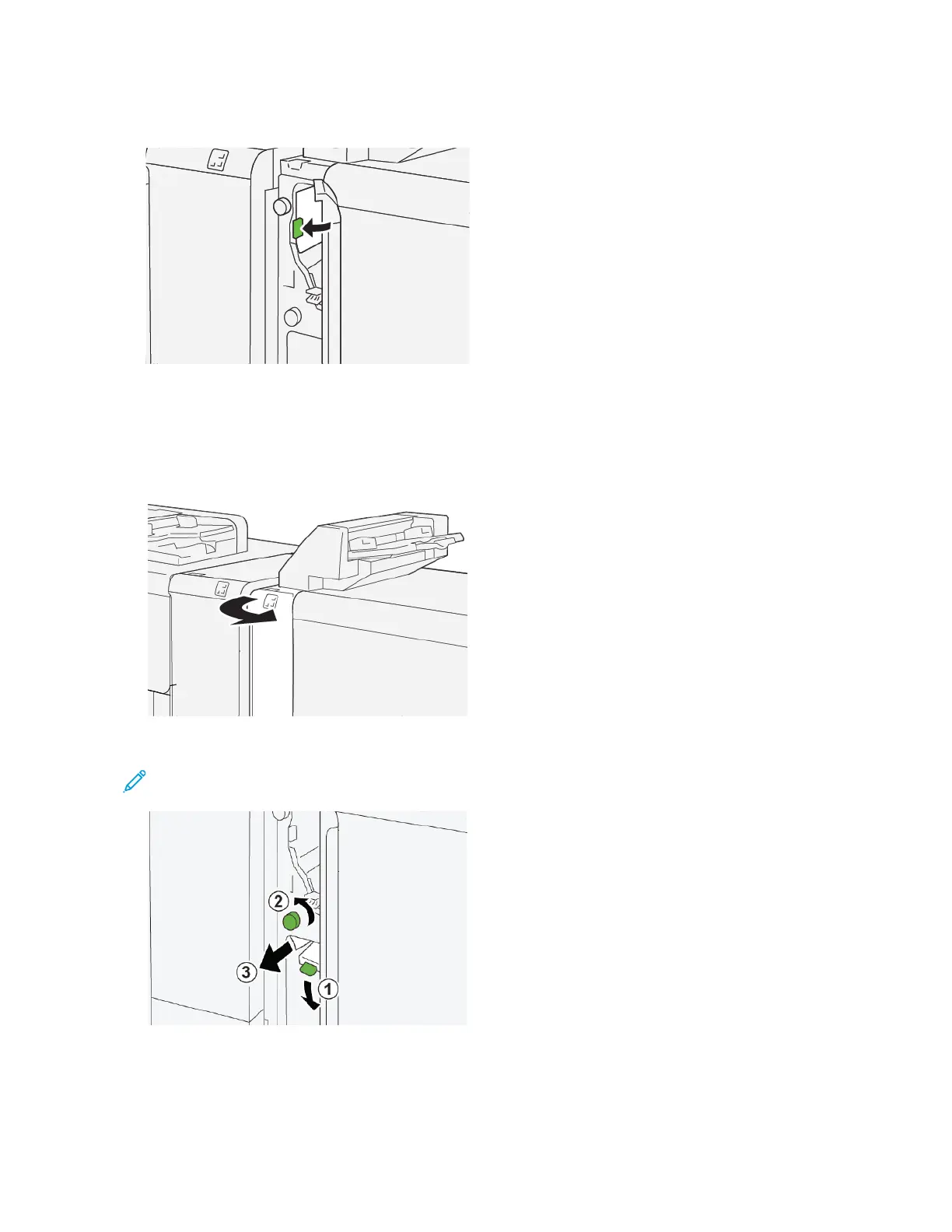

Clearing Paper Jams from the Inserter E3 Area
1. Open the inserter front cover.
2. To remove paper jams from the inserter E3 area:
Note: The jammed paper can be hidden behind the upper-left cover area.
a. Push down lever 11dd.
b. Rotate knob 11ee counterclockwise.
Xerox
®
PrimeLink
®
B9100/B9110/B9125/B9136 Copier/Printer User Guide 353
Inserter Module

Xerox PrimeLink B9100 Specifications

General

Recommended Monthly Print Volume	70, 000 - 700, 000 pages
Duplex Printing	Standard
Type	Multifunction Printer
Print Technology	Laser
Supported Operating Systems	Windows, Mac OS, Linux
Print Resolution	2400 x 2400 dpi
First-page-out time, printing	4.1 seconds
Network Connectivity	Ethernet
Supported Media Sizes	A3, A4, A5, B4, B5
Weight	210 kg
Print Speed (Black)	100 ppm
