Xerox PrimeLink B9100 User Manual

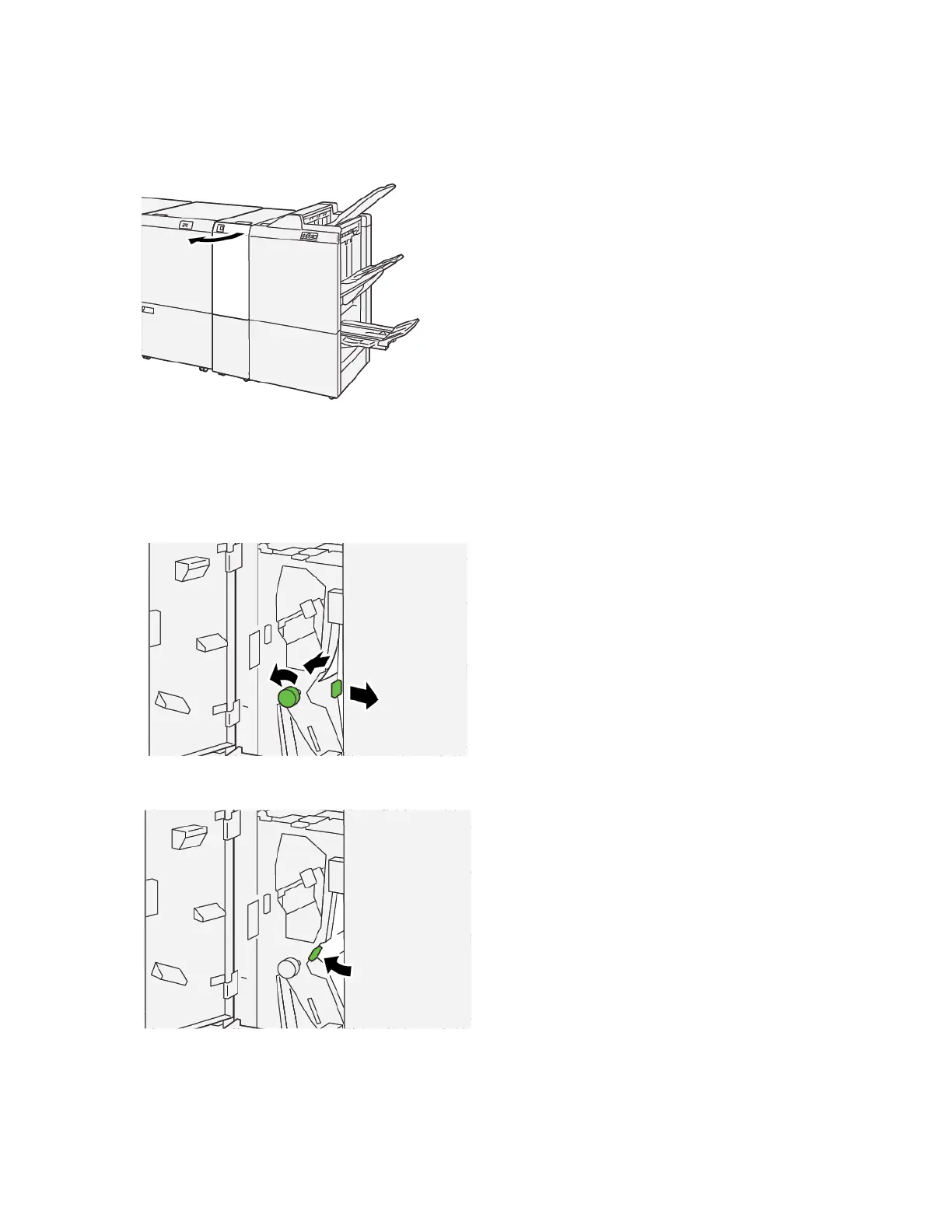

Clearing Paper Jams from Folder Area E11
1. Open the folder front cover.
2. To remove jammed paper, do the following:
a. Pull lever 22gg to the right.
b. Rotate knob 22cc counterclockwise.
c. Remove jammed paper.
3. Return lever 22gg to its original position.
4. Close the folder front cover.
5. If the printer indicates that there are more paper jams, follow the instructions to clear the paper and to resume
printing.
Xerox
®
PrimeLink
®
B9100/B9110/B9125/B9136 Copier/Printer User Guide 409
C/Z Folder

Xerox PrimeLink B9100 Specifications

General

Recommended Monthly Print Volume	70, 000 - 700, 000 pages
Duplex Printing	Standard
Type	Multifunction Printer
Print Technology	Laser
Supported Operating Systems	Windows, Mac OS, Linux
Print Resolution	2400 x 2400 dpi
First-page-out time, printing	4.1 seconds
Network Connectivity	Ethernet
Supported Media Sizes	A3, A4, A5, B4, B5
Weight	210 kg
Print Speed (Black)	100 ppm
