Quick Break Down Guide, Continued....
mAINTENANCE AND qUICK bREAK DOWN GUIDE

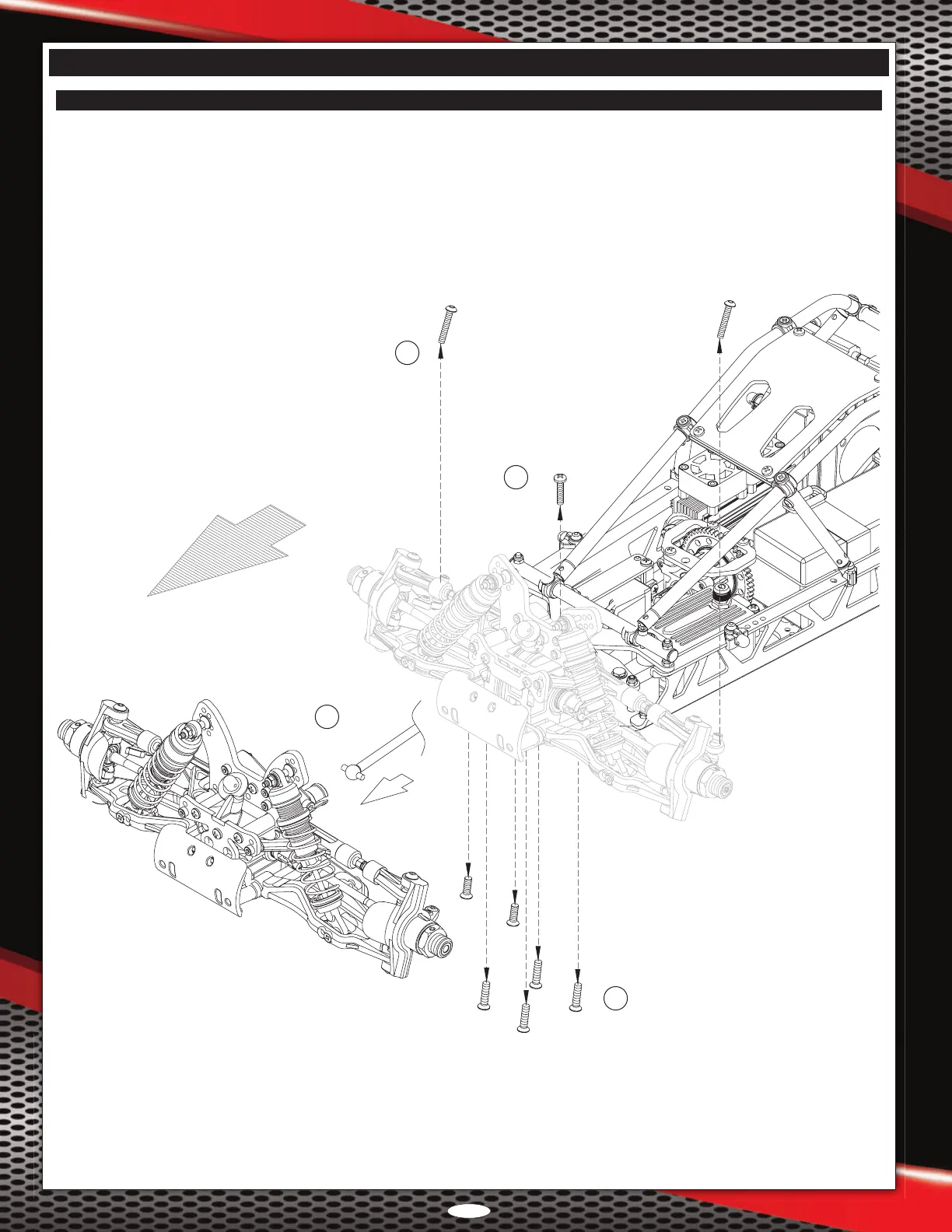

Remove the two 3 x 20mm machine screws that secure
the steering tie-rods to the steering knuckles.
Remove the two 4 x 12mm self-tapping screws and the four 4 x 16mm
self-tapping screws from the bottom of the chassis that hold the front
bumper and the front suspension assembly in place.
Remove the 3 x 15mm self-tapping
screw that holds front chassis brace
to the front chassis cross-brace.
Pull the front suspension assembly,
along with the rear centre dog bone out
and off the chassis.
A
C
B
D
