Page 33
STEP 12: REAR SHOCK TOWER
(148649) Cap Screw 4 x 45mm -- 1
(148511) Cap Screw 3 x 25mm -- 6
(148576) Button Head Tapping Screw 3 x 10mm -- 4

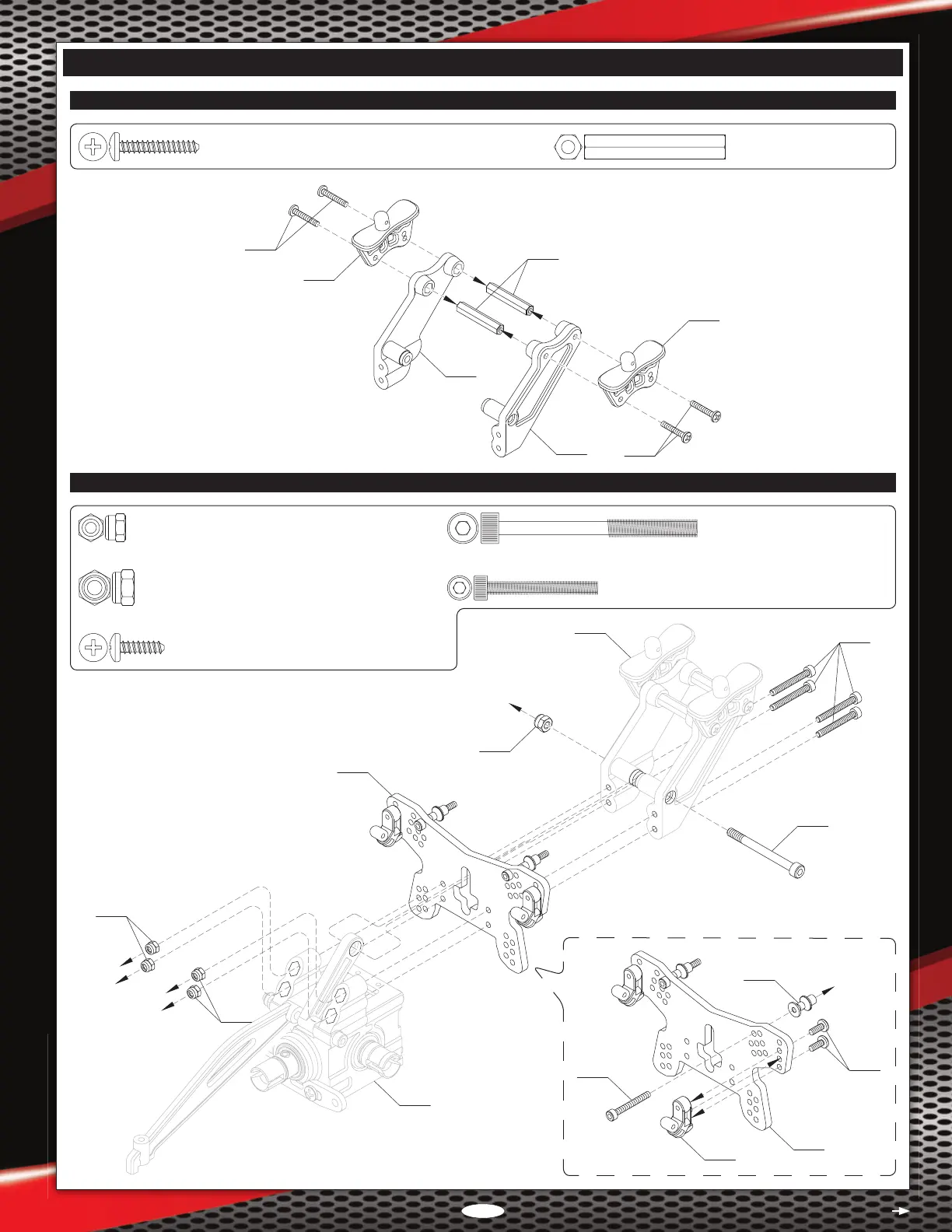

ExPLODED vIEW ASSEmbLY DRAWINGS
STEP 11: WING MOUNT
(148581) Button Head Tapping Screw 3 x 18mm -- 4
(149271) Post 6 x 32mm -- 2
(148558) Lock Nut 3mm -- 4
(148559) Lock Nut 4mm -- 1
Continued On Next Page
