Page 34
STEP 13: REAR HUBS
(149493) Turnbuckle 5 x 36mm -- 2
STEP 14: REAR LOWER SUSPENSION ARMS AND HUBS
(148533) Button Head Screw 3 x 25mm -- 2
(148567) Grub Screw 4 x 10mm -- 2
(148558) Lock Nut 3mm -- 4

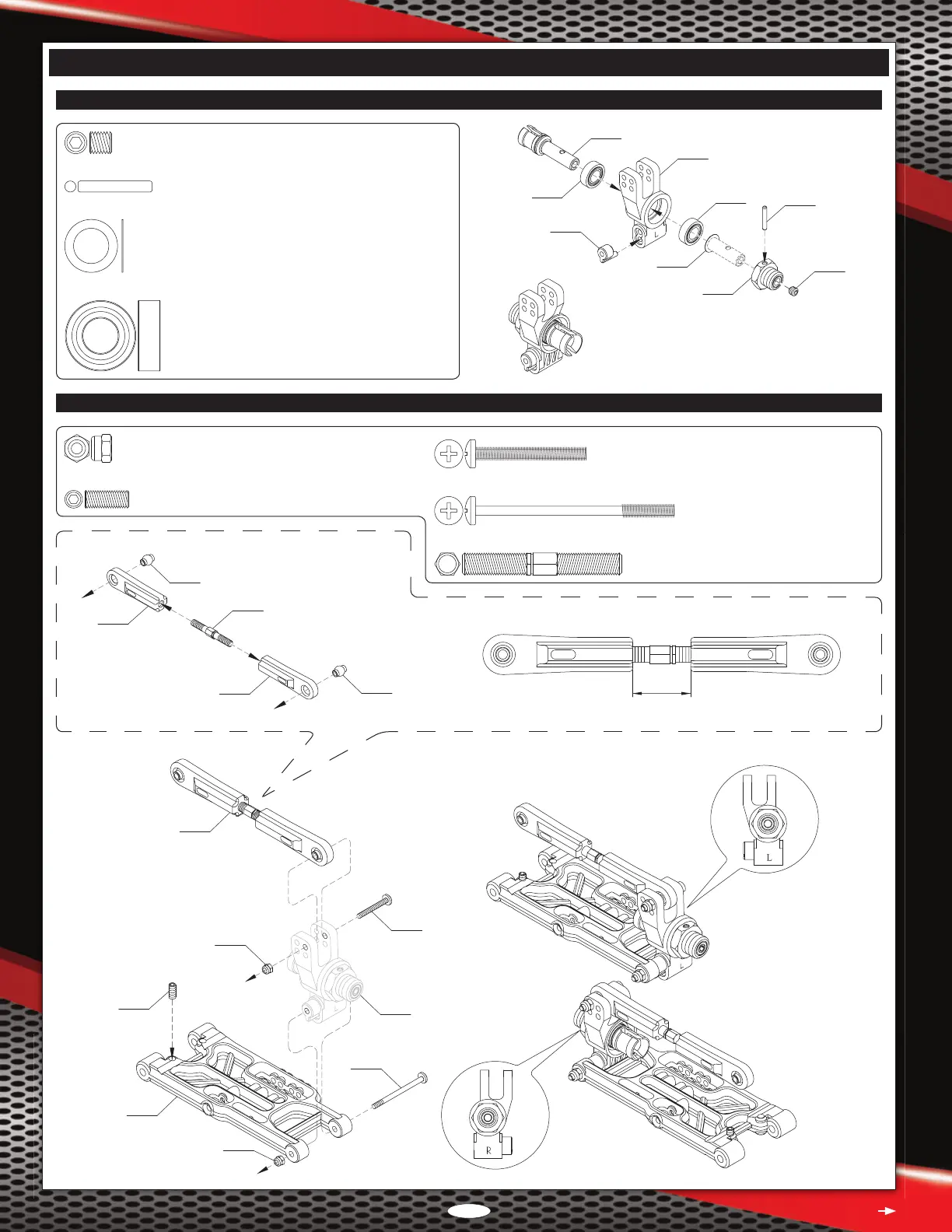

ExPLODED vIEW ASSEmbLY DRAWINGS
(148574) Grub Screw w/Threadlock 5 x 5mm -- 2
(149305) Pin 2.5 x 16.8mm -- 2
(148624) Shim 8 x 12 x 0.2mm -- 2
(149563) Ball Bearing 8 x 16 x 5mm -- 4
(149381) Hub Stud 43.5mm -- 2
Continued On Next Page
