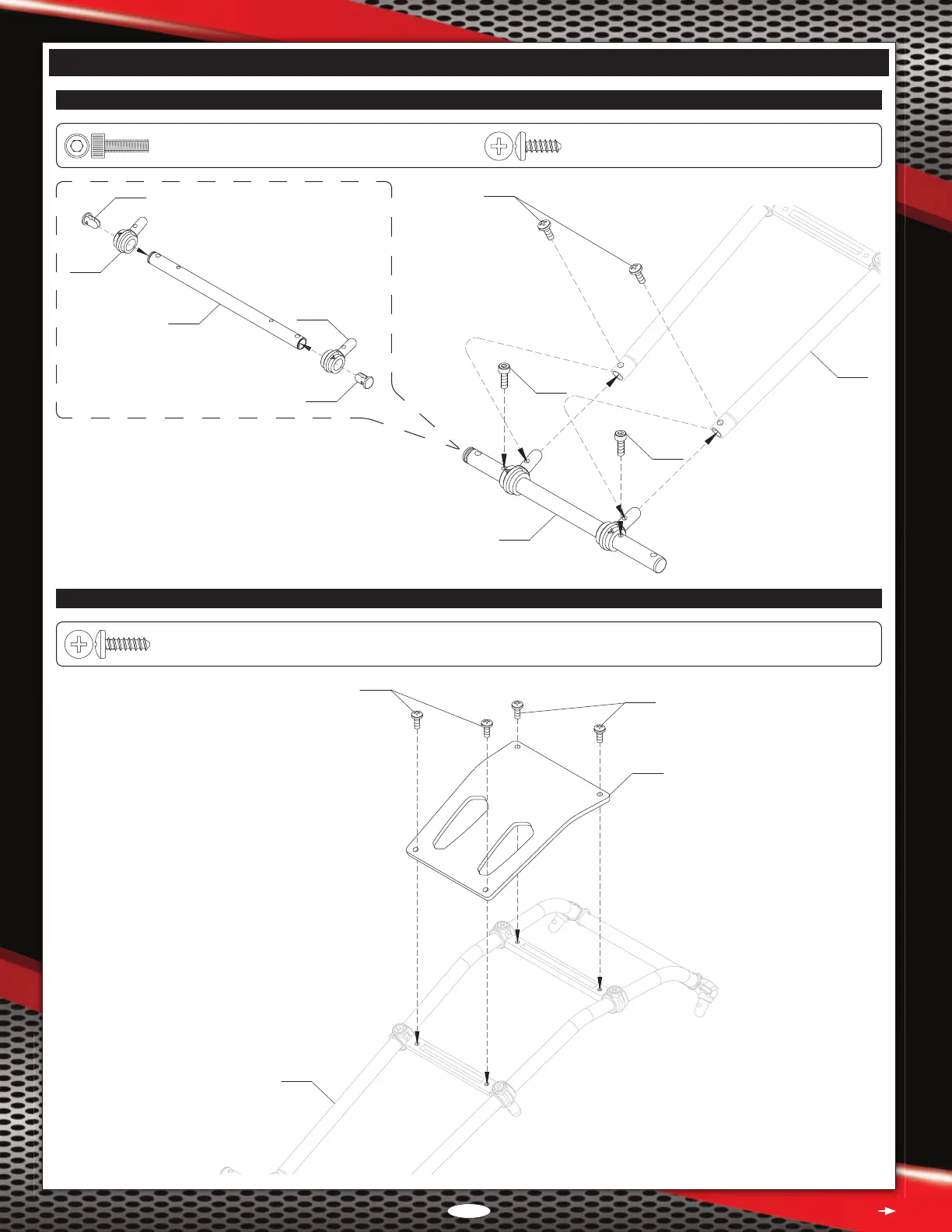

ExPLODED vIEW ASSEmbLY DRAWINGS
STEP 40: FRONT CENTRE ROLL BAR
(148505) Cap Screw w/Threadlock 3 x 10mm -- 2
STEP 41: ROOF PLATE
(148576) Button Head Tapping Screw 3 x 10mm -- 4
(148582) Button Head Tapping Screw 3 x 8mm -- 2















Continued On Next Page
