Page 40
STEP 23: FRONT AND REAR SHOCKS

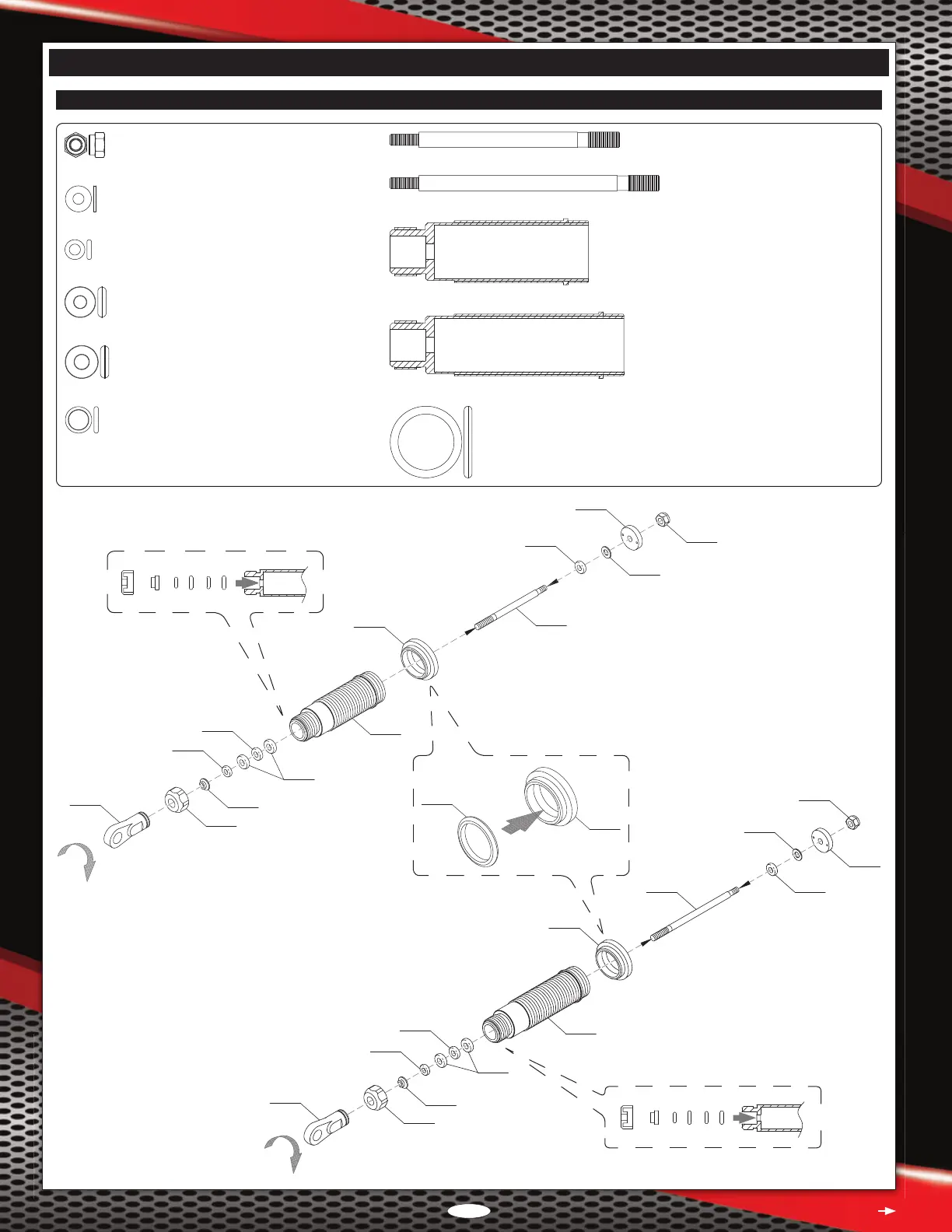

ExPLODED vIEW ASSEmbLY DRAWINGS
(149840 / 149841) Lock Nut 2.6mm -- 4
(149840 / 149841) Washer 2.5 x 5.9 x 0.5mm -- 4
(149850) O-Ring 3mm -- 4
(149850) O-Ring 3.5mm -- 8
(149840 / 149841) O-Ring 2.5 x 1mm -- 4
(149899) O-Ring 3 x 1mm -- 4
(149840) Shock Shaft 3.5 x 52mm -- 2
(149841) Shock Shaft 3.5 x 61mm -- 2
(148660) Shock Body 14 x 45mm -- 2
(148661) Shock Body 14 x 53mm -- 2
(148660 / 148661) O-Ring 12.4 x 1.78mm -- 4
