STEP 6: FRONT AXLES AND STEERING KNUCKLES
(148566) Grub Screw w/Threadlock 3 x 3mm -- 4
(149506) Pin 2.5 x 13.8mm -- 2
(149305) Pin 2.5 x 16.8mm -- 2
(149563) Ball Bearing 8 x 16 x 5mm -- 4
(148574) Grub Screw w/Threadlock 5 x 5mm -- 2
(148624) Shim 8 x 12 x 0.2mm -- 2
STEP 5: FRONT SHOCK TOWER
(148558) Lock Nut 3mm -- 4
(148576) Button Head Tapping Screw 3 x 10mm -- 1
(148511) Cap Screw 3 x 25mm -- 2
(148506) Cap Screw 3 x 16mm -- 4

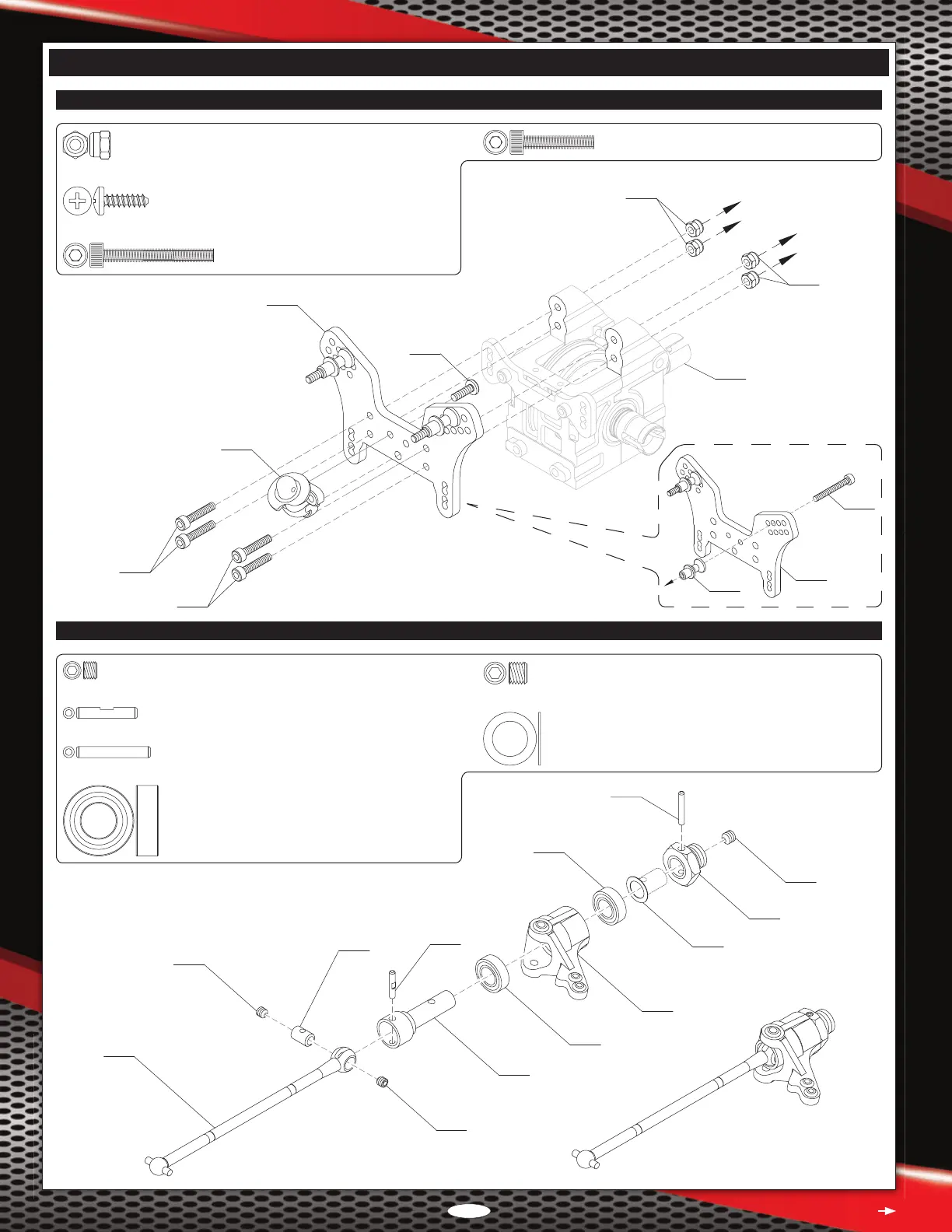

ExPLODED vIEW ASSEmbLY DRAWINGS
Continued On Next Page
To Next Page
