Front view
camera-selective
control inputs
Post-alarmPre-alarm
IntervalInterval
Alarm
Start
Interval
Start
Pre-alarm
Interval
Alarm
Post-alarm
Control input opens
positive edge triggered
Control input closes
negative edge triggered
This post-alarm
sequence is recorded
This pre-alarm
sequence is recorded
This post-alarm
sequence is recorded
This pre-alarm
sequence is recorded
"Normally closed contact""Normally open contact"

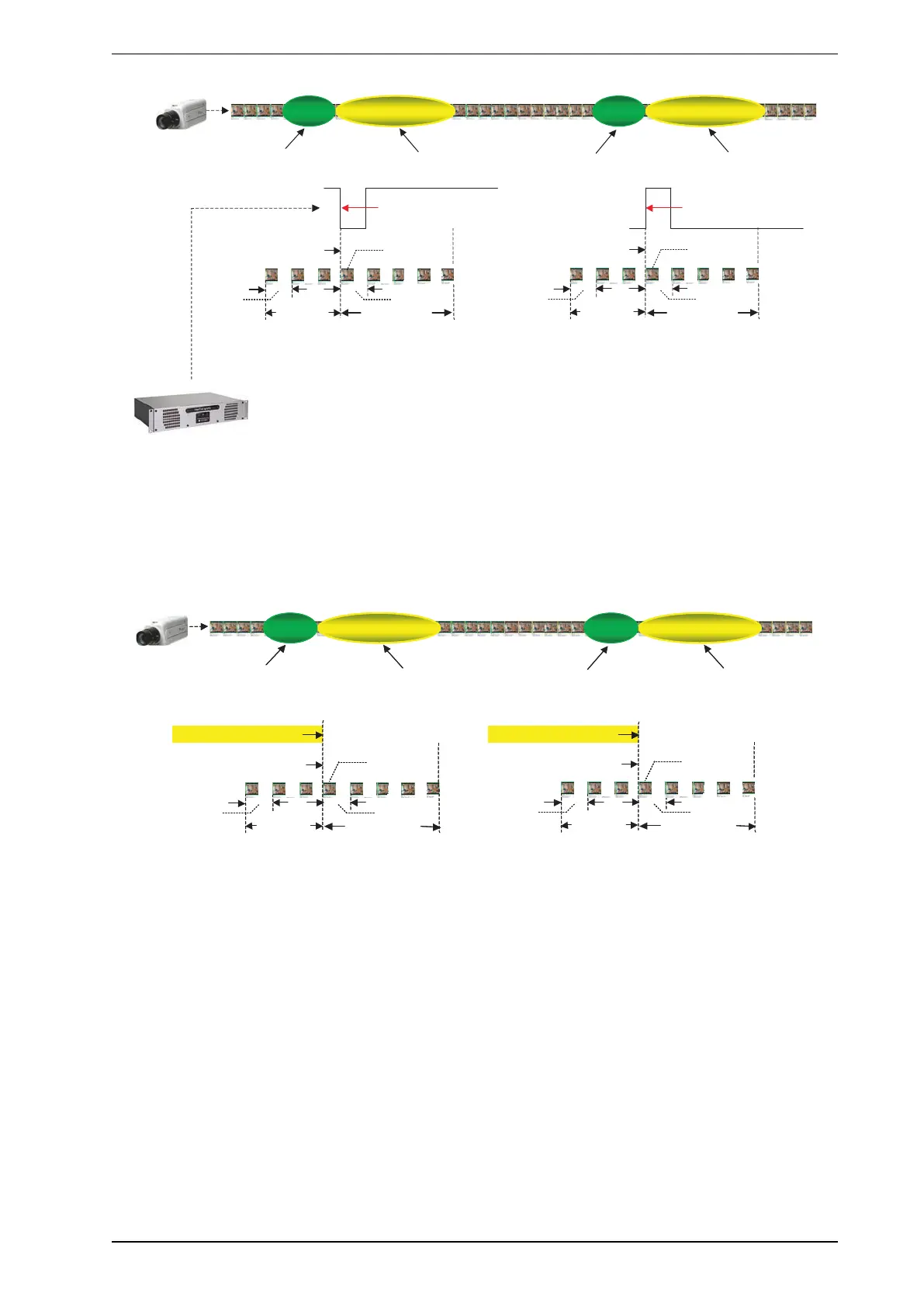

Figure 9-5: Event recording triggered by control input
Event recording triggered by IntrusionTrace.h
This mode triggers event recording with IntrusionTrace.h with adjustable sensitivity and definable detection
areas.
Pre-alarm
Start
Post-alarm
This post-alarm sequence
is recorded
Interval
Pre-alarm
Interval
This pre-alarm sequence
is recorded
Alarm picture
Start
Post-alarm
Interval
Interval
Alarm picture
This post-alarm sequence
is recorded
This pre-alarm sequence
is recorded
Motion is detected Motion is detected
Figure 9-6: Event recording triggered by IntrusionTrace.h
