VX-6E OPERATING MANUAL 5
c
PTT (Push To Talk) Switch
Press this switch to transmit, and
release it (to receive) after your
transmission is completed.
d
T-CALL Switch
Pressing this switch activates the
T-CALL (1750 Hz) for repeater
access.
e
EXT DC Jack
This coaxial DC jack allows con-
nection to an external DC power
source (6-16V DC). The center pin
of this jack is the Positive (+) con-
nection.
Do not allow the VX-6E to become submerged in water while the rubber
cap over the EXT DC jack is removed.
f
Battery Pack Latch
Open this latch for battery removal.

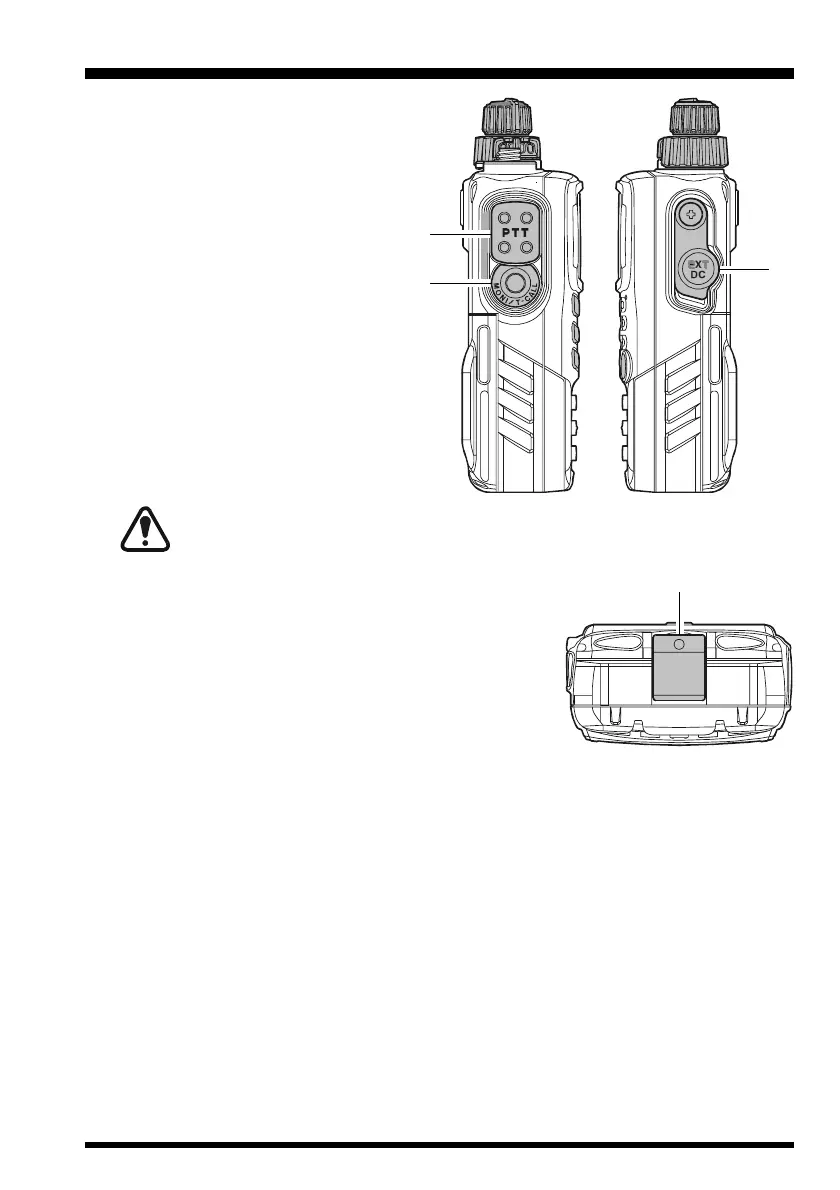

CONTROL & CONNECTIONS
(
SIDE & BOTTOM PANEL
)
c
d
e
f
