Yamaha Jupiter MX - Removing the Rocker Arms and Camshaft

4-18
ENG
CAMSHAFT
1
2
1
1
2
EASF0022

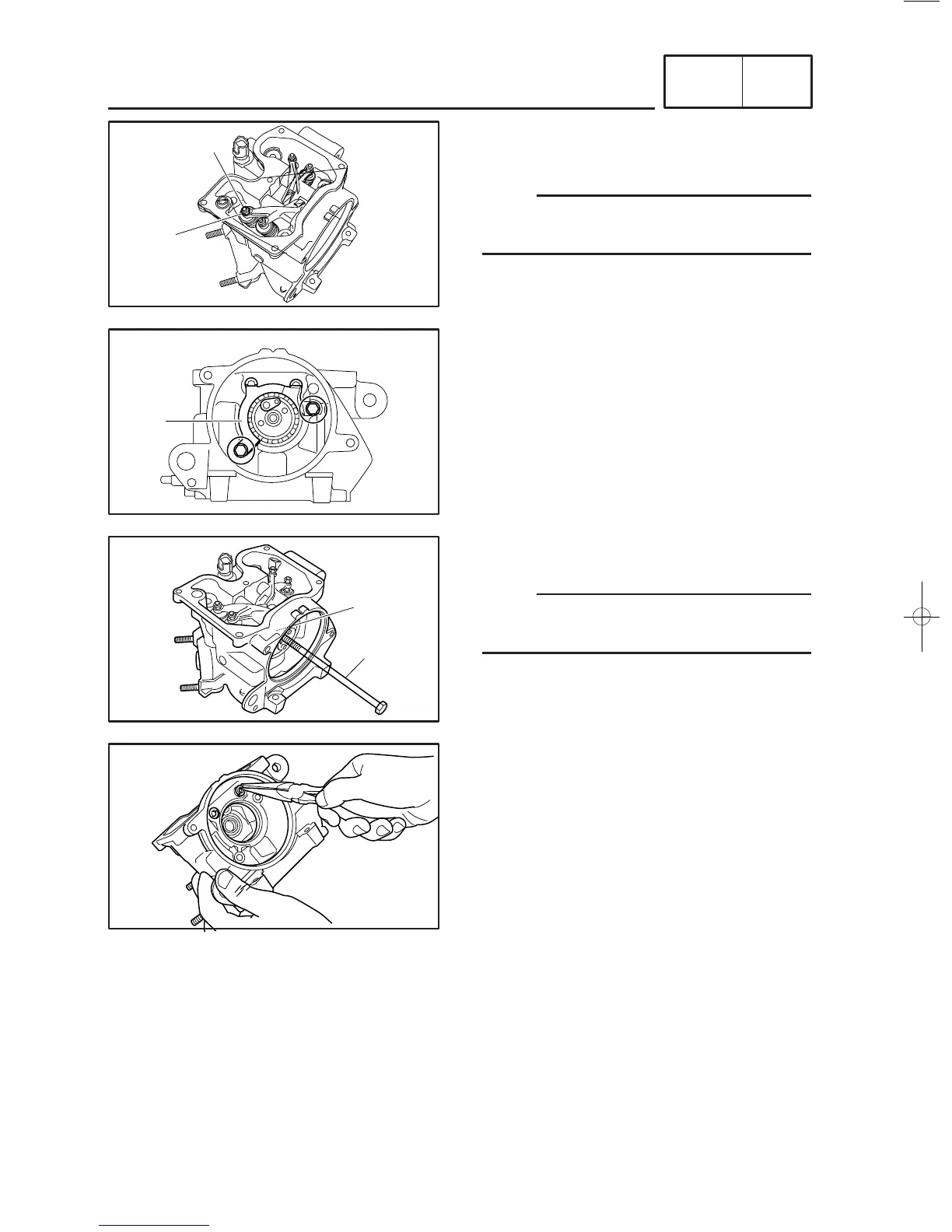

REMOVING THE ROCKER ARMS AND
CAMSHAFT
NOTE:
Prior to remove the rocker arms and camshaft,
remove the cylinder head.
1. Loosen:
9
locknuts
1
9
adjusting screws
2
2. Remove:
9
camshaft retainer
1
3. Remove:
9
camshaft
1
NOTE:
Screw an 8 mm bolt
2
into the threaded end of
the camshaft and then pull out the camshaft.
4. Remove:
9
rocker arm shafts
9
rocker arms
