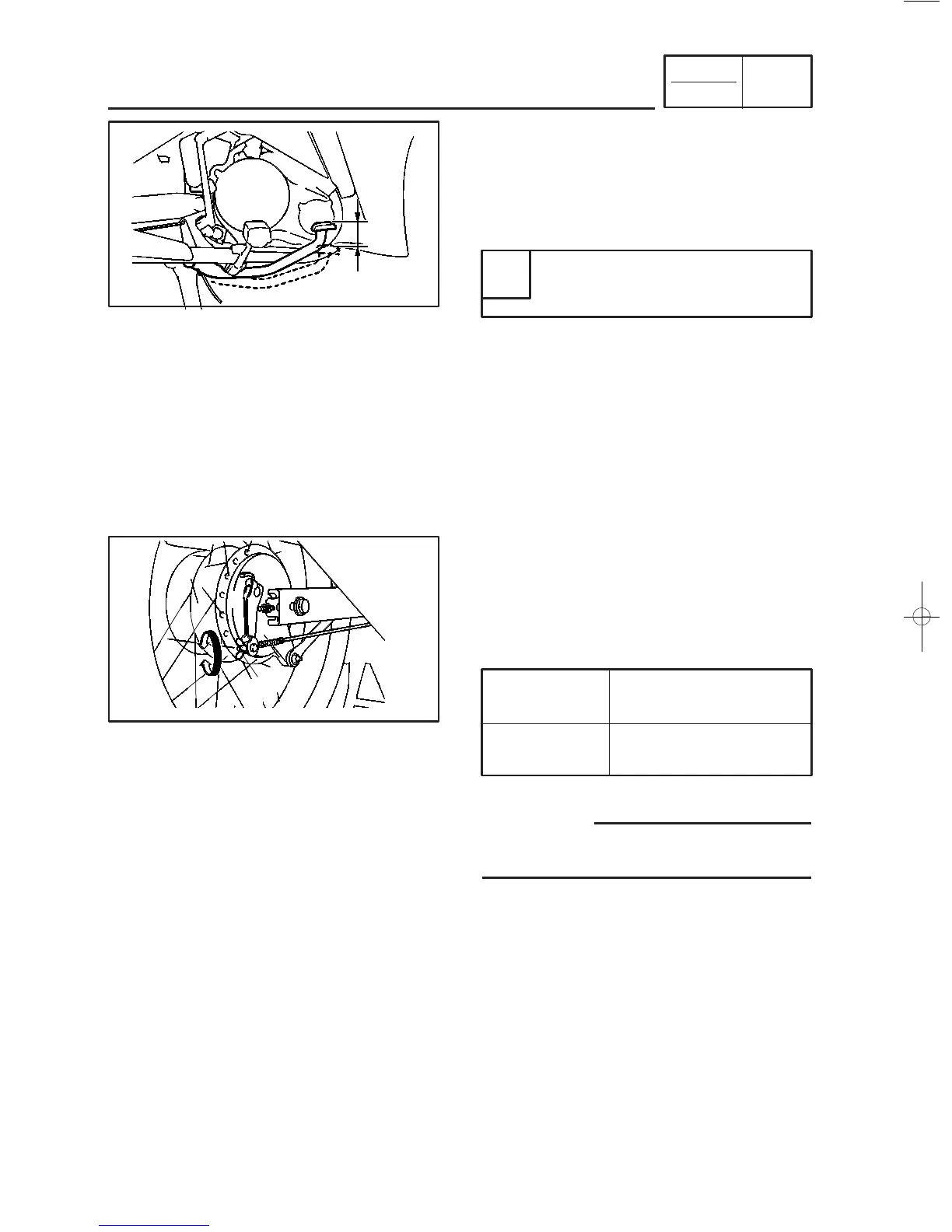

ADJUSTING THE REAR BRAKE
CHASSIS
EAS00113
ADJUSTING THE REAR BRAKE
1. Check:
9
brake pedal free play
a
Out of specification
→
Adjust.
Brake pedal free play (at the end
of the brake pedal)
25–35 mm (0.98–1.38 in)
2. Adjust:
9
brake pedal free play
✭✭✭✭✭✭✭✭✭✭✭✭✭✭✭✭✭✭✭✭✭✭✭✭
a. Turn the adjuster
1
in direction
a
or
b
until the specified brake pedal free play is
obtained.
cC
After adjusting the brake pedal free play,
make sure there is no brake drag.
✬✬✬✬✬✬✬✬✬✬✬✬✬✬✬✬✬✬✬✬✬✬✬✬
3. Adjust:
9
rear brake light switch
Refer to “ADJUSTING THE REAR BRAKE
LIGHTSWITCH”.
Direction
aa
Brake pedal free play is
increased.
Direction
bb
Brake pedal free play is
decreased.
