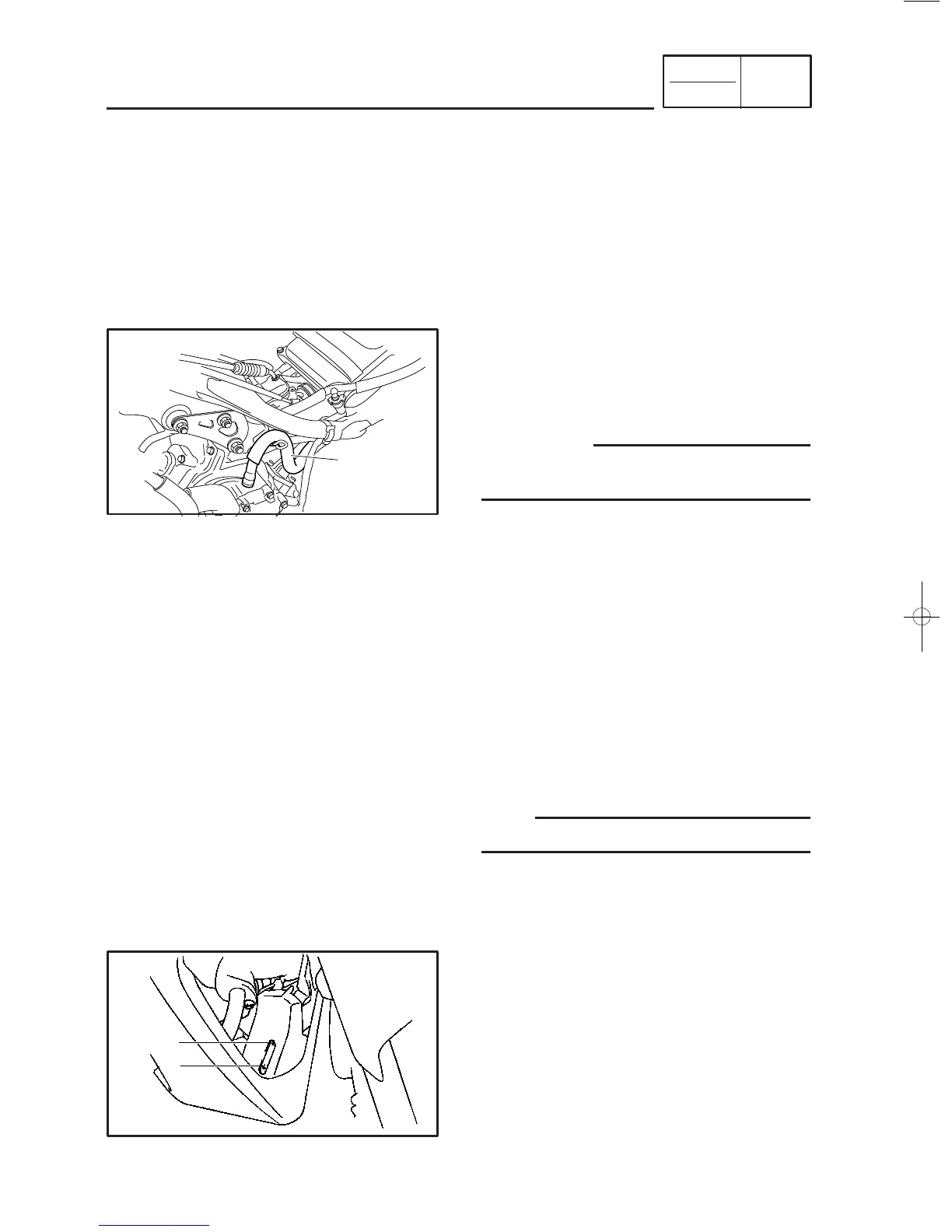

CHECKING THE CRANKCASE BREATHER PIPE/
CHECKINGTHECOOLANTLEVEL
EAS00098
CHECKING THE CRANKCASE
BREATHER PIPE
1. Remove:
9
side cowlings (left and right)
9
center panels (upper and lower)
9
front cowling
9
rear cowlings (left and right)
9
inner panel
Refer to “COVERS”.
2. Check:
9
crankcase breather pipe
1
Cracks/damage
→
Replace.
Loose connection
→
Connect properly.
cC
Make sure the crankcase breather pipe is
routed correctly.
EAS00103
CHECKING THE COOLANT LEVEL
1. Stand the vehicle on a level surface.
NOTE:
Make sure the vehicle is upright.
2. Check:
9
coolant level
The coolant level should be between the
minimum level mark
a
and maximum level
mark
b
.
Below the minimum level mark
→
Add the
recommended coolant to the proper level.
3. Install:
9
inner panel
9
rear cowlings (left and right)
9
front cowling
9
center panels (upper and lower)
9
side cowlings (left and right)
Refer to “COVERS”.
