CLEANING THE AIR FILTER ELEMENT
EAS00086
CLEANING THE AIR FILTER ELEMENT

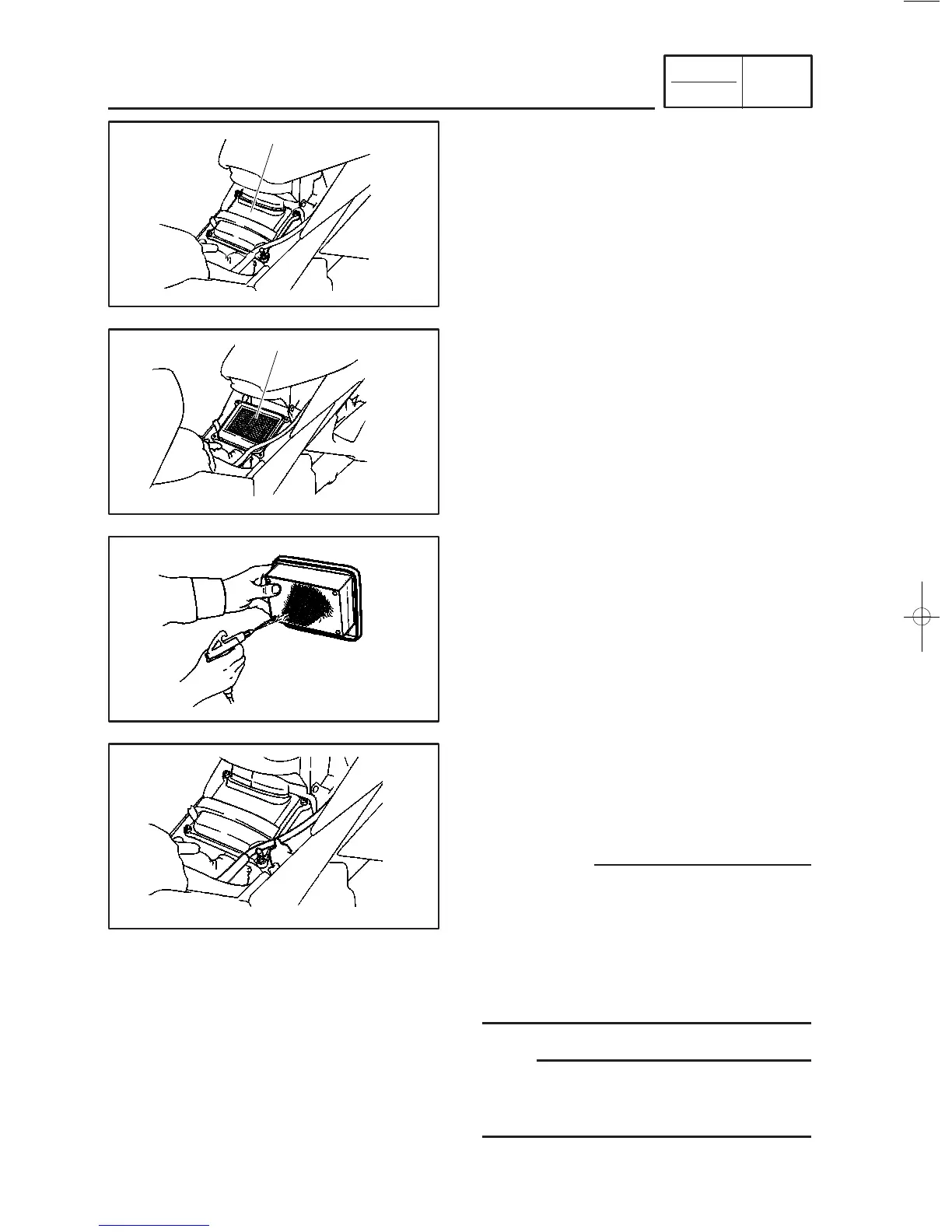

1. Remove:
9
center panel (lower)
Refer to “REMOVING THE CENTER PAN-
ELS”.
2. Remove:
9
air filter case cover
1
9
air filter element
2
3. Clean:
9
air filter elements
Apply compressed air to the outer surface
of the air filter element.
4. Check:
9
air filter element
Damage
→
Replace.
5. Install:
9
air filter element
9
air filter case cover
9
breather hose
cC
Never operate the engine without the air fil-
ter element installed. Unfiltered air will cause
rapid wear of engine parts and may damage
the engine. Operating the engine without the
air filter element will also affect the carbure-
tor tuning, leading to poor engine perfor-
mance.
NOTE:
When installing the air filter element into the air
filter case cover, make sure their sealing sur-
faces are aligned to prevent any air leaks.
