Yamaha Jupiter MX - Checking the Air Induction System; Installing the Air Induction System; Removing the Air Induction System

CARB
AIR INDUCTION SYSTEM
6-16

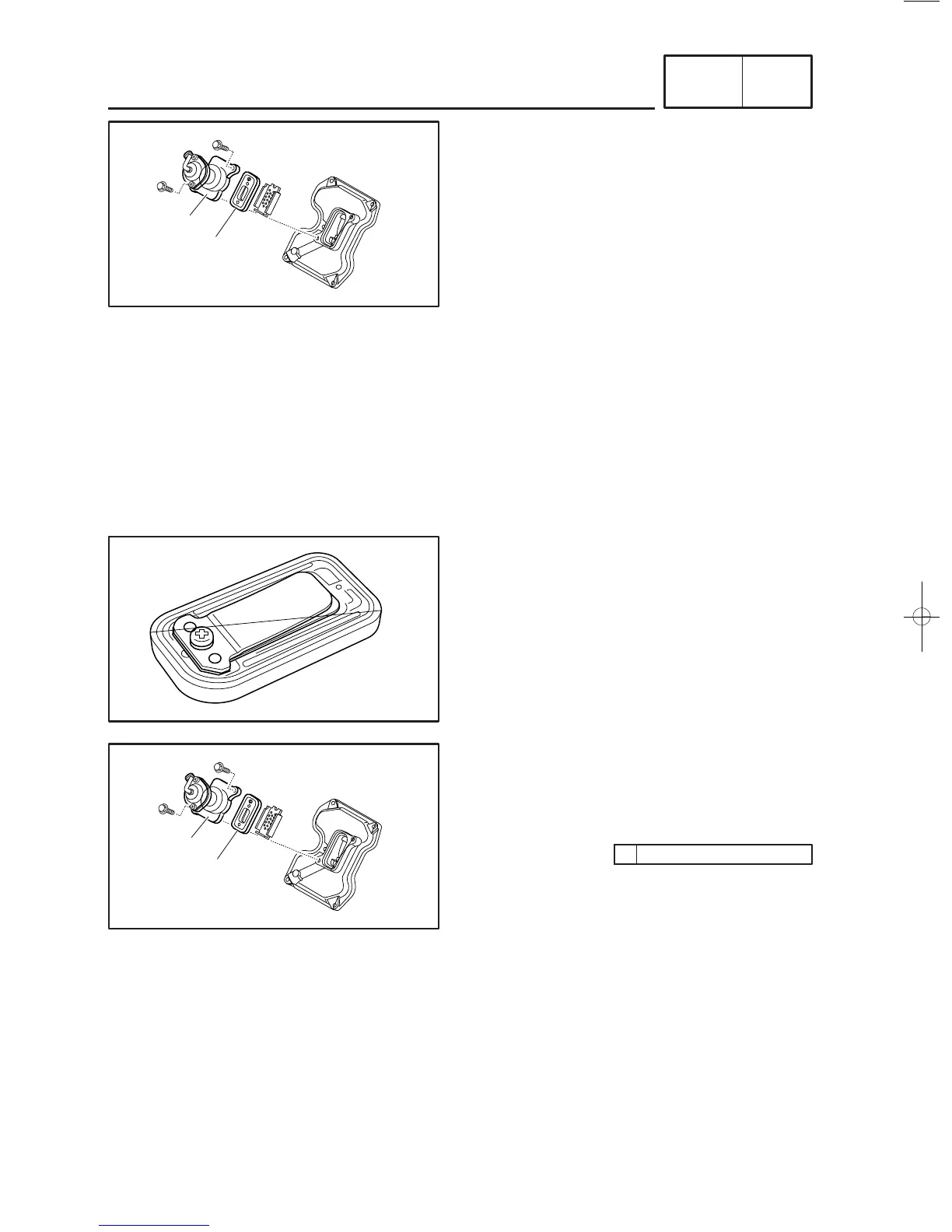

CHECKING THE AIR INDUCTION SYS-
TEM
1. Check:
9
hoses
Loose connections
→
Connect properly.
Cracks/damage
→
Replace.
9
pipes
Cracks/damage
→
Replace.
2. Check:
9
reed valve
9
reed valve stopper
9
reed valve seat
Cracks/damage
→
Replace the reed valve.
3. Check:
9
air cut-off valve
Cracks/damage
→
Replace.
2
1
1
2
REMOVING THE AIR INDUCTION SYS-
TEM
1. Disconnect:
9
vacuum sensing hose
9
bend hose
2. Remove:
9
air cut cut-off valve assembly
1
9
reed valve assembly
2
INSTALLING THE AIR INDUCTION SYS-
TEM
1. Install:
9
reed valve assembly
1
9
air cut cut-off valve assembly
2
2. Connect:
9
vacuum sensing hose
9
bend hose
10 Nm (1.0 m·kg, 7.2 ft·lb)
