Yamaha Jupiter MX - Adjusting the Clutch Release System; Checking the Carburetor Jointand Intake Manifold

1
2
1
2
CHK
ADJ
3-21
CLEANING THE AIR FILTER ELEMENT/
ADJUSTING THE CLUTCH RELEASE SYSTEM/
CHECKING THE CARBURETOR JOINT AND INTAKE MANIFOLD
6. Install:
9
center panel (lower)
Refer to “INSTALLING THE CENTERPAN-
ELS”.
EAS00086

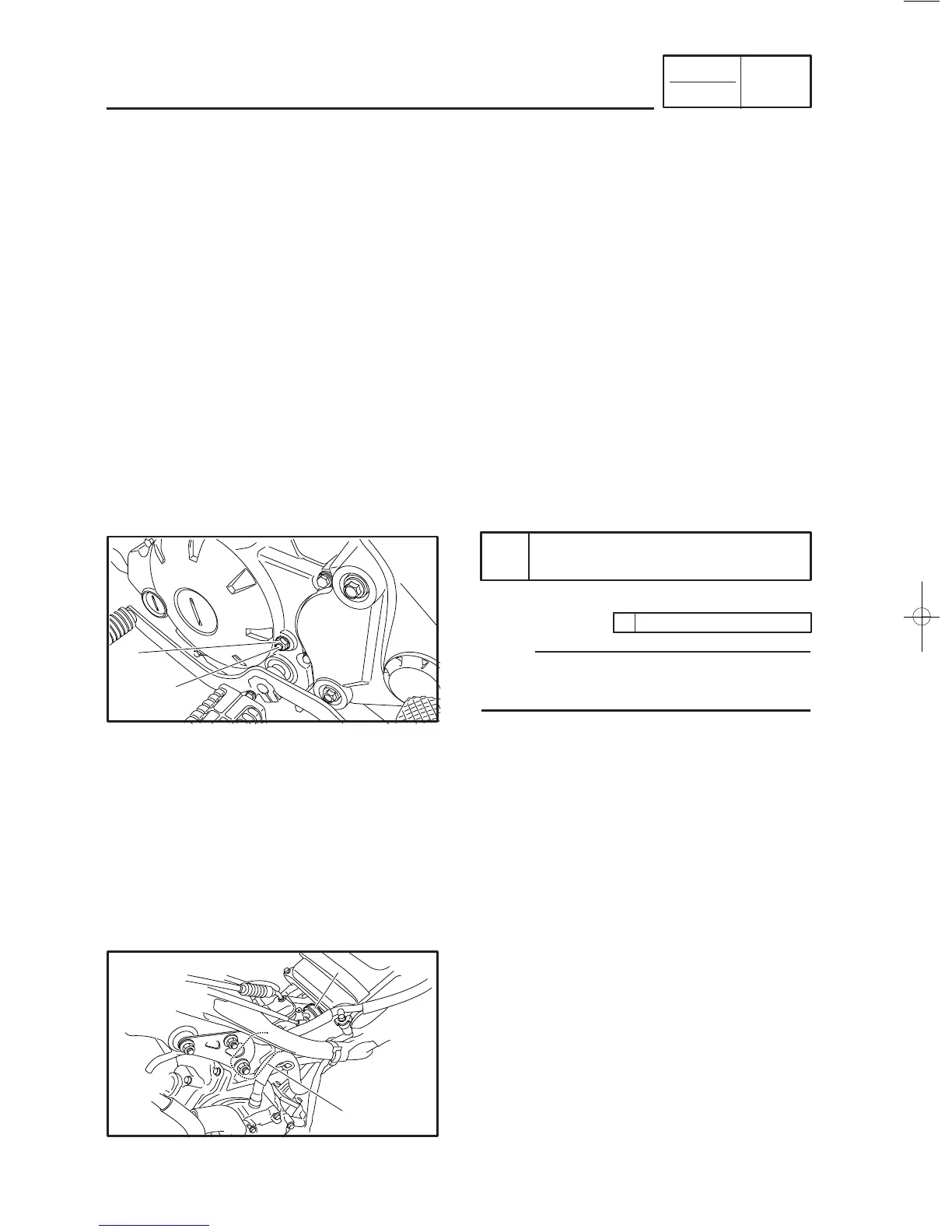

ADJUSTING THE CLUTCH RELEASE
SYSTEM
1. Adjust:
9
clutch release system
✭✭✭✭✭✭✭✭✭✭✭✭✭✭✭✭✭✭✭✭✭✭✭✭
a. Loosen the locknut
1
.
b. Turn the adjusting screw
2
in completely,
then turn the adjusting screw out the speci-
fied number of turns.
c. Tighten the locknut.
NOTE:
Hold the adjusting screw and tighten the lock-
nut.
✬✬✬✬✬✬✬✬✬✬✬✬✬✬✬✬✬✬✬✬✬✬✬✬
Adjusting screw:
1/8 turns out
8 Nm (0.8 m•kg, 6.0 ft•lb)
EAS00094
CHECKING THE CARBURETOR JOINT
AND INTAKE MANIFOLD
1. Remove:
9
side cowlings (left and right)
9
center panels (upper and lower)
9
front cowling
9
rear cowlings (left and right)
9
inner panel
Refer to “COVERS”.
2. Check:
9
carburetor joint
1
9
intake manifold
2
Cracks/damage
→
Replace.
Refer to “CARBURETOR” in chapter 6.
