REAR SHOCK ABSORBER ASSEMBLYAND SWINGARM
7-52
1
2
3
4

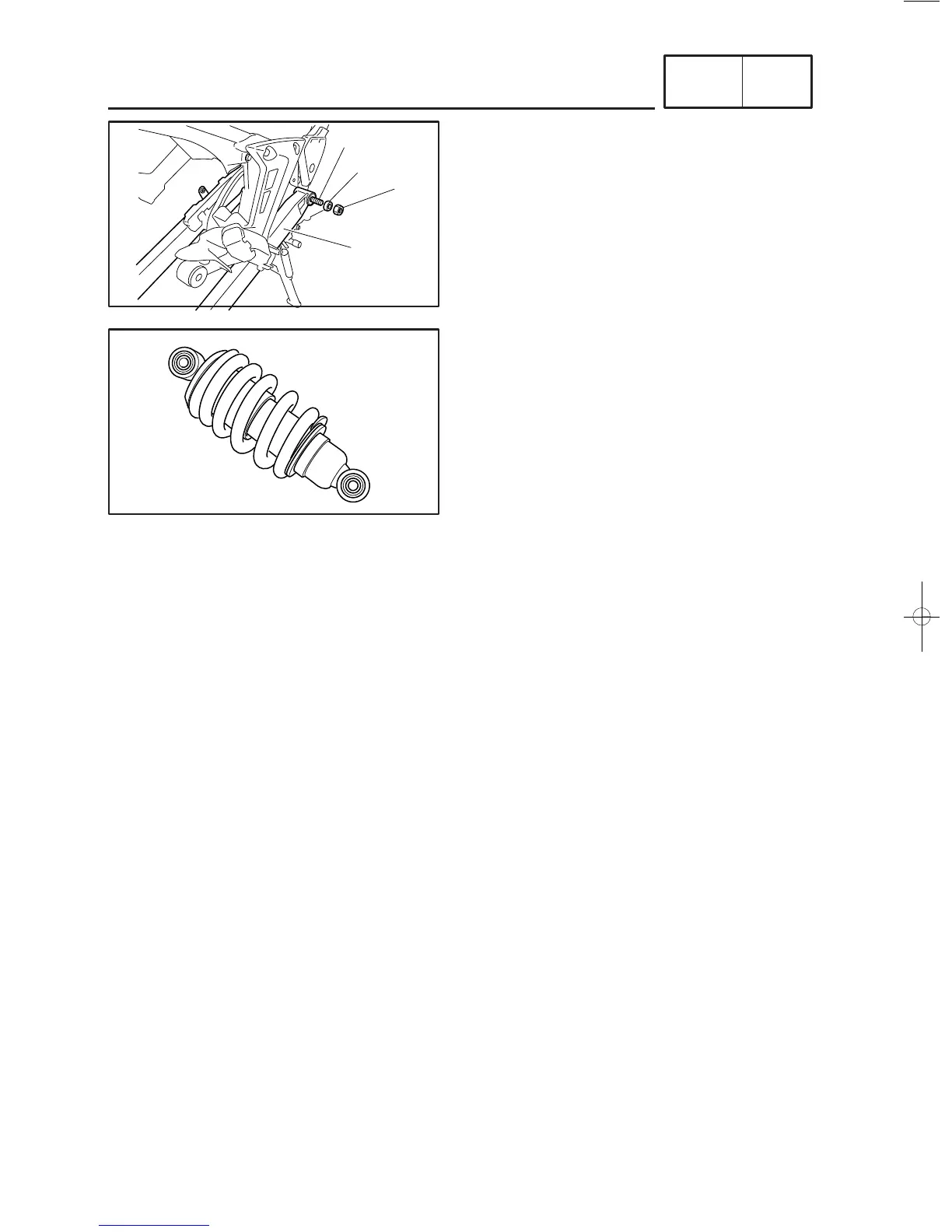

7. Remove:
9
swingarm pivot shaft nut
1
9
washer
2
9
swingarm pivot shaft
3
9
swingarm
4
EAS00695
CHECKING THE REAR SHOCK
ABSORBER ASSEMBLIES
The following procedure applies to both rear
shock absorber assemblies.
1. Check:
9
rear shock absorber rod
Bends/damage
→
Replace the rear shock
absorber assembly.
9
rear shock absorber
Oil leaks
→
Replace the rear shock
absorber assembly.
9
spring
Damage/wear
→
Replace the rear shock
absorber assembly.
9
bushings
Damage/wear
→
Replace.
9
bolts
Bends/damage/wear
→
Replace.
