CHAS
REAR SHOCK ABSORBER ASSEMBLYAND SWINGARM
7-50
EAS00691/EAS00702
REMOVING THE REAR SHOCK
ABSORBER ASSEMBLIES AND
SWINGARM
1. Stand the vehicle on a level surface.
w
Securely support the vehicle so that there is
no danger of it falling over.
NOTE:
Place the vehicle on a suitable stand so that the
rear wheel is elevated.
2. Remove:
9
center panel
9
rear cowlings (left and right)
Refer to “REMOVING THE REAR COWL-
INGS” in chapter 3.
9
muffler
Refer to “REMOVING THE ENGINE” in
chapter 4.
9
rear wheel
Refer to “REAR WHEELAND BRAKE”.

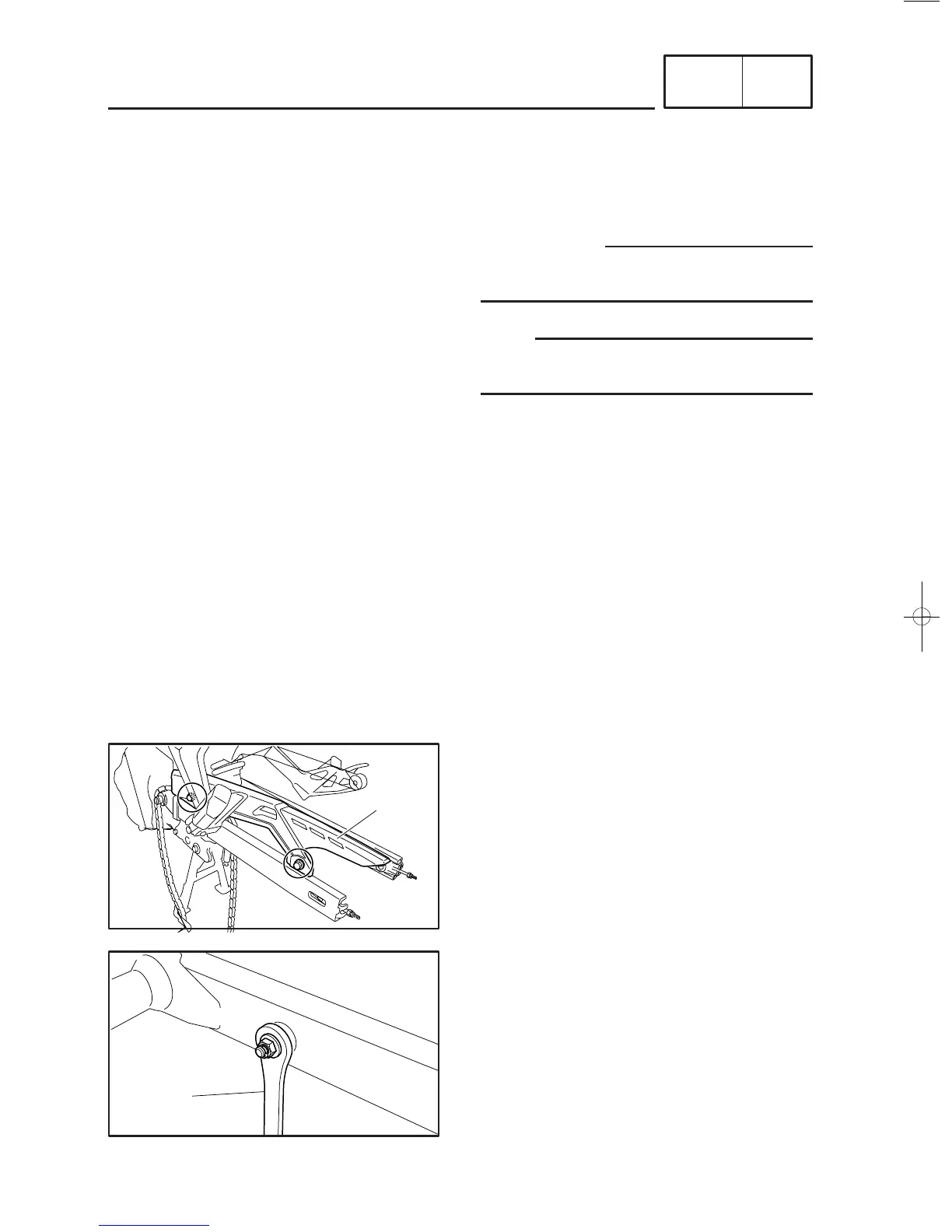

1
3. Remove:
9
drive chain case bolts
9
drive chain case
1
1
4. Remove:
9
cotter pin
9
washer
9
brake torque rod
1
