5-10
COOL
COOLINGSYSTEM
4. Check:
9
cooling system
Leaks
→
Repair or replace any faulty part.
✭✭✭✭✭✭✭✭✭✭✭✭✭✭✭✭✭✭✭✭✭✭✭✭

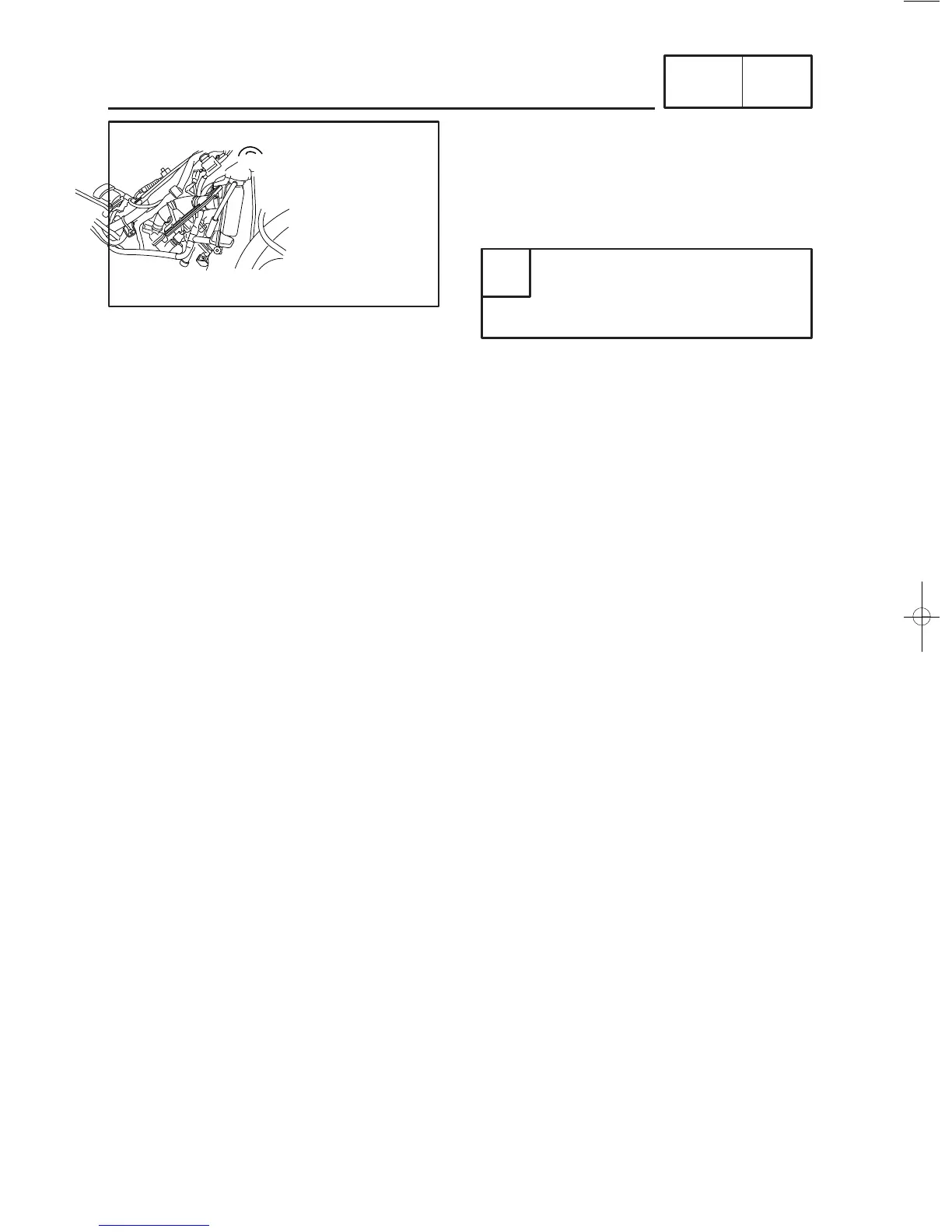

a. Attach the radiator cap tester 1 to the radi-
ator.
b. Apply 100 kPa (1.0 kg/cm
2
, 14.22 psi) of
pressure.
c. Measure the indicated pressure with the
gauge.
✬✬✬✬✬✬✬✬✬✬✬✬✬✬✬✬✬✬✬✬✬✬✬✬
5. Measure:
9
radiator cap opening pressure
Below the specified pressure
→
Replace the
radiator cap.
Refer to “CHECKING THE RADIATOR”.
6. Install:
9
inner panel
9
seat assembly with battery box
9
center panels
9
front cowling
9
side cowlings (left and right)
Refer to “REMOVING THE FRONTCOWL-
INGS” in chapter 3.
Radiator cap tester
90890-01325
Radiator cap tester adapter
90890-01352
