SPEC
2-26

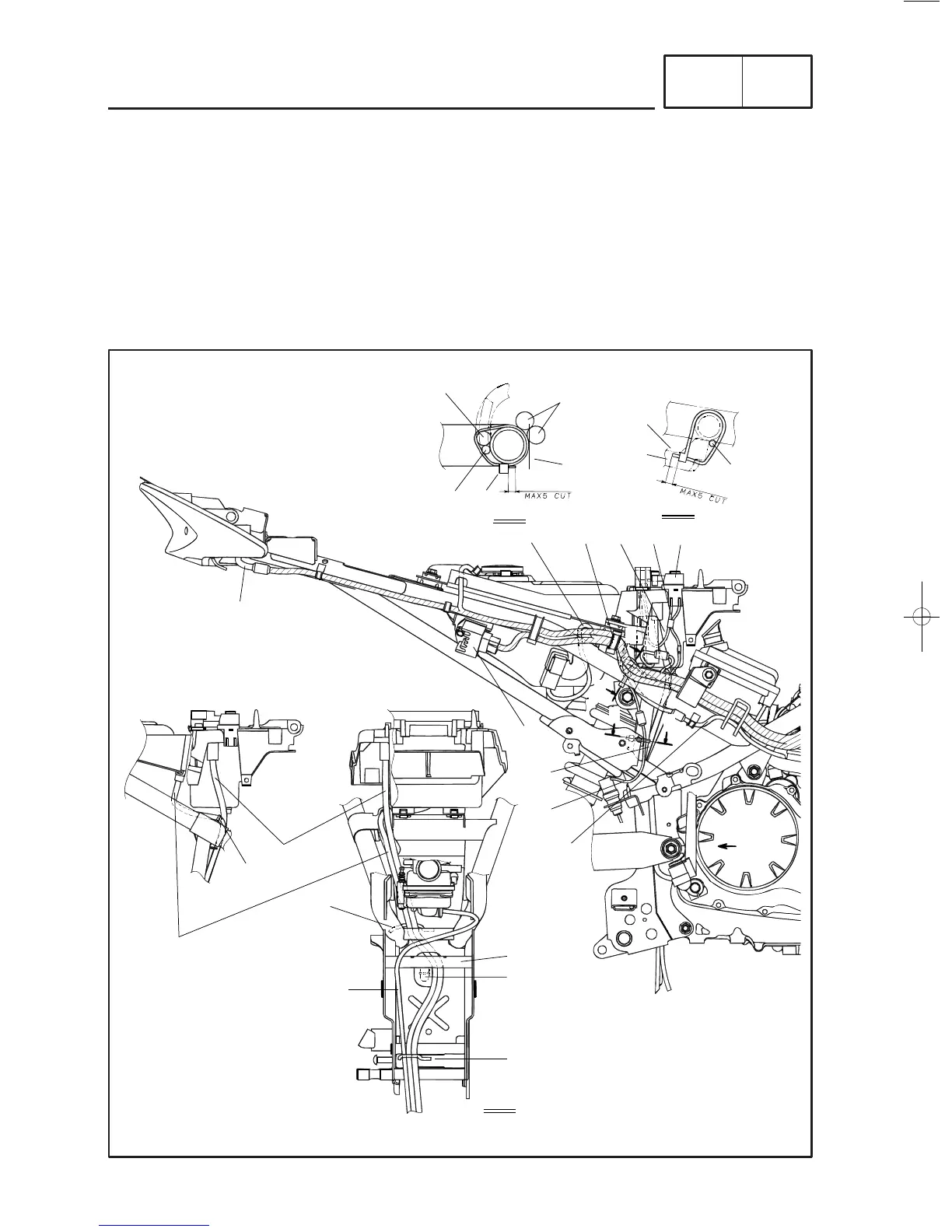

CABLE ROUTING
å
∫
ç
∂
´
ƒ
©
˙
ˆ
∆
˚
1
2
3
4
4
5
5
5
6
6
7
8
9
0
q
w
e
r
t
A
A
B
B
C
A-A
B-B
C
1
Fan relay lead
2
Positive lead
3
Fuse box
4
Starter motor lead (T135SE)
5
Rear brake switch lead
6
Battery breather pipe
7
Rectifier/regulator
8
Tail/brake light lead
9
Wireharness
0
Bracket
q
Frame
w
Air filter assembly
e
Overflow pipe
r
Drain hose
t
Protector
å
Pass through the fan relay
lead into the frame pipe and
fuel tank.
∫
Close the clamp end until stop
contact to the fuel tank.
ç
Pass through the positive lead
into the starter relay and
breather pipe. (T135SE)
∂
Pass through the starter motor
lead under the wireharness.
(T135SE)
´
Outside of the frame.
ƒ
Be sure does not over the out-
side of the frame.
©
Set in the connected point to
the bracket, after behind them.
˙
Pass through the drain hose,
battery breather pipe and over
flow pipe into the cable guide.
To Next Page
