SPEC

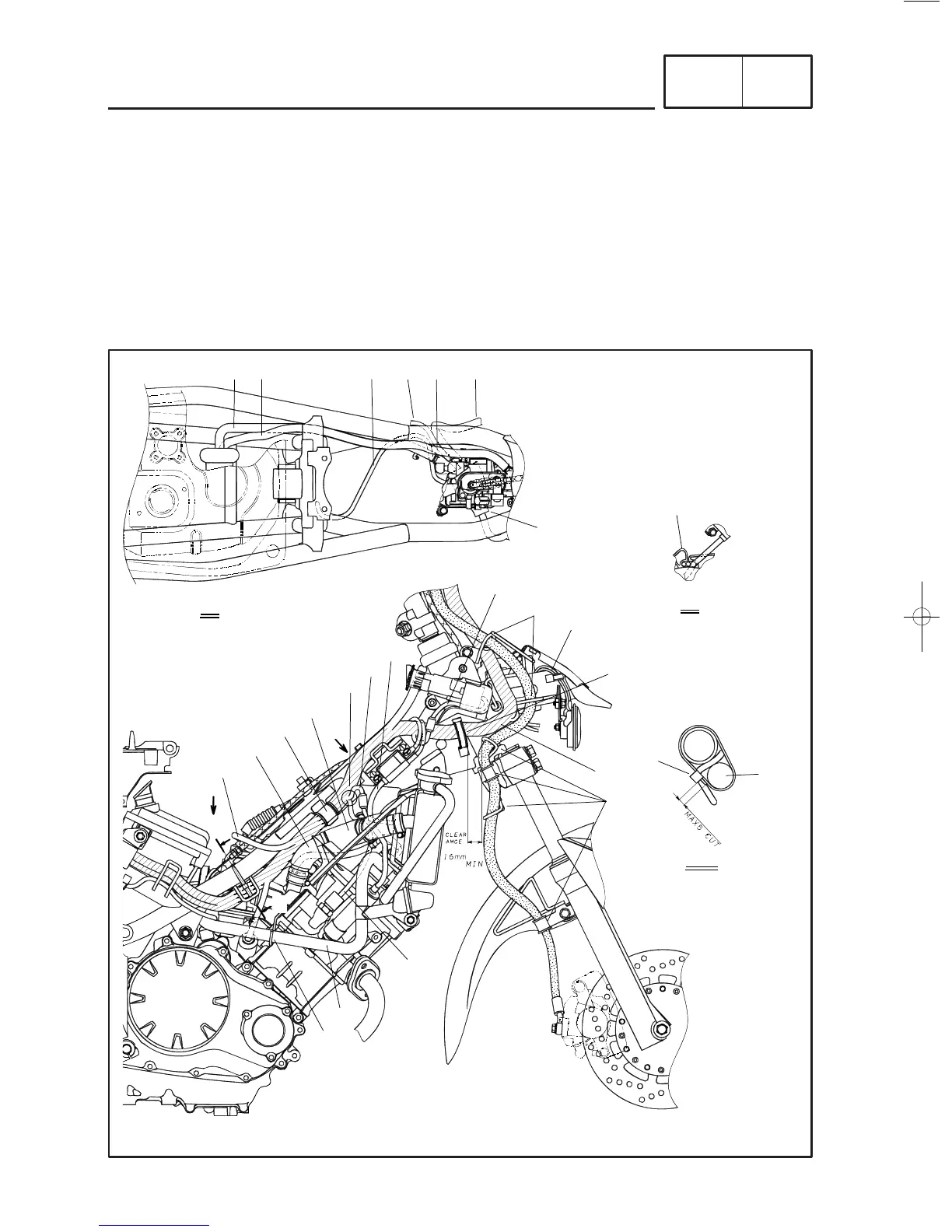

CABLE ROUTING
2-28
å
∫
ç
∂
´
ƒ
©
˙ˆ
∆
˚
¬
A
A
B
B
A-A
1
2
3
4
5
6
7
8
9
0
qw e
r
C
C
1
Throttle position sensor lead
2
Radiator inlet hose
3
Grommet
4
Plate
5
Fan motor lead
6
High tension cord
7
Main switch lead
8
Horn lead
9
Thermo switch lead
0
Bend hose
q
Fuel hose
w
Vacuum hose
e
Overflow pipe
r
Wireharness
å
Turn the downward of the sep-
arate part.
∫
Route the brake hose through
as shown.
ç
Close the clamp certainly.
Wireharness and cable guide
clearance is wit in 16 mm,
when straight the steering con-
dition.
∂
Pass through the wireharness
into the main switch and cable
guide.
Pass through the hone lead
and turn signal light lead under
the wireharness.
´
Route the brake hose as
shown.
ƒ
Clamp the bend hose.
©
To the neutral switch.
˙
Turn the clip inside without
contact the vacuum hose.
To Next Page
