CHK
ADJ
3-13

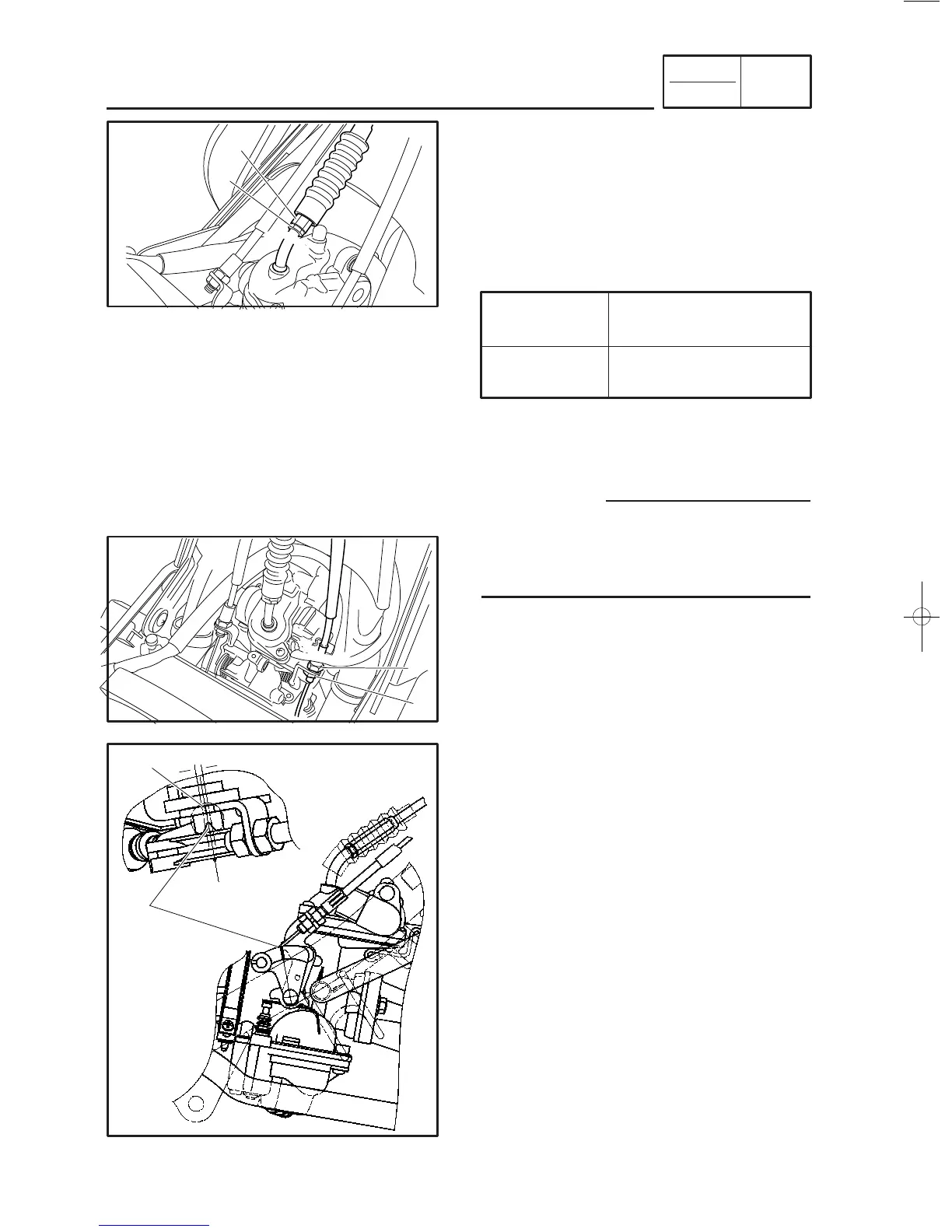

ADJUSTING THE THROTTLE CABLE FREE PLAY
a
b
1
2
1
2
a
b
c
d
e
3. Adjust:
9
throttle cable free play
✭✭✭✭✭✭✭✭✭✭✭✭✭✭✭✭✭✭✭✭✭✭✭✭
a. Pull back the adjusting nut cover.
b. Loosen the locknut
1
c. Turn the adjusting nut
2
in direction
a
or
b
until the specified throttle cable free play
is obtained.
d. Tighten the locknut.
e. Slide the adjusting nut cover to its original
position.
w
After adjusting the throttle cable free play,
start the engine and turn the handlebar to
the right or left to ensure that this does not
cause the engine idling speed to change.
✬✬✬✬✬✬✬✬✬✬✬✬✬✬✬✬✬✬✬✬✬✬✬✬
4. Adjust:
9
accelerator pump cable
✭✭✭✭✭✭✭✭✭✭✭✭✭✭✭✭✭✭✭✭✭✭✭✭
a. Loosen the locknut
1
b. Turn the adjusting nut
2
in direction
a
or
b
until align the projection
c
on the accel-
erator pump lever with projection
d
on the
bracket. (
e
: within ±1mm)
c. Tighten the locknut.
✬✬✬✬✬✬✬✬✬✬✬✬✬✬✬✬✬✬✬✬✬✬✬✬
Direction
aa
Throttle cable free play
is increased.
Direction
bb
Throttle cable free play
is decreased.
