QL5/QL1

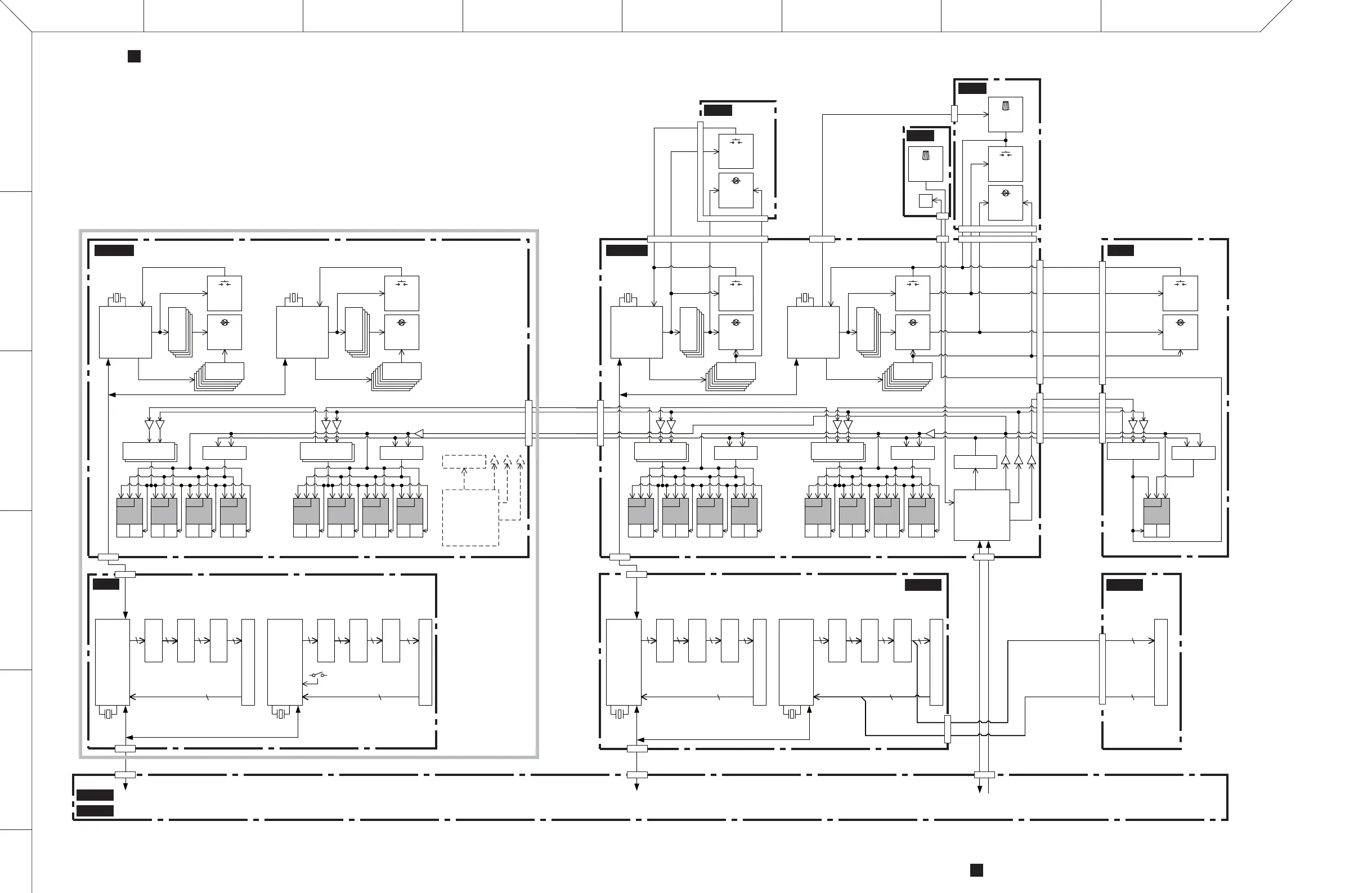

BLOCK DIAGRAM 004 (QL5/QL1)
BLOCK DIAGRAM 004 (QL5/QL1)
28CA1-2001135745-4
PN16M, PN16S, PNL, PNR, ENC, FD2, FD1M, FD1S, PN2, Ch Name LCD
E-Bus拡張I/F
16MHz
CPU
M38039
EC_PNS1
STANDARD MODE
SLAVE ADDRESS 0
LED
Matrix
SW
Matrix
LED Sink
Driver
LED Sink
Driver
LED Sink
Driver
LED Sink
Driver
CPU
M38039
EC_PNS1
STANDARD MODE
SLAVE ADDRESS 1
LED
Matrix
SW
Matrix
LED Sink
Driver
LED Sink
Driver
LED Sink
Driver
LED Sink
Driver
16MHz
3 to 8 DEMUX
LED
Matrix
SW
Matrix
CPU
LPC1763
P-MD1
100MHz
I2C MODE
I2C 400kbit/s
I2C ID 0
3 to 8 DEMUX
Ch Name
LCD
LCD
Multi
Color
LED
Multi
Color
LED
Ch Name
LCD
LCD
Multi
Color
LED
Multi
Color
LED
Ch Name
LCD
LCD
Multi
Color
LED
Multi
Color
LED
Ch Name
LCD
LCD
Multi
Color
LED
Multi
Color
LED
Constant current
LED Sink driver
Constant current
LED Sink driver
3 to 8 DEMUX
Ch Name
LCD
LCD
Multi
Color
LED
Multi
Color
LED
Ch Name
LCD
LCD
Multi
Color
LED
Multi
Color
LED
Ch Name
LCD
LCD
Multi
Color
LED
Multi
Color
LED
Ch Name
LCD
LCD
Multi
Color
LED
Multi
Color
LED
Constant current
LED Sink driver
Constant current
LED Sink driver
3 to 8 DEMUX
Ch Name
LCD
LCD
Multi
Color
LED
Multi
Color
LED
Constant current
LED Sink driver
I2C
LED Driver Data
CS
LED Driver Data
Ch Name LCD Control
LED Driver Control
100mm motorized fader (×2)
2
4
LED Source
Driver
LED Source
Driver
LED Source
Driver
LED Source
Driver
LED Source
Driver
LED Source
Driver
LED Source
Driver
LED Source
Driver
LED Source
Driver
LED Source
Driver
LED Source
Driver
LED Source
Driver
QL5 only
CPU
H8/3683
E-FDC
20MHz
100mm motorized fader (×8)
VHC541
(X2)
CPLD
EPM240T100
Motor driver
(×4)
8
30
16
8
16
CPU
H8/3683
E-FDC
20MHz
100mm motorized fader (×8)
VHC541
(X2)
CPLD
EPM240T100
Motor driver
(×5)
8
30
16
8
16
E-Bus
E-Bus
See page 4
Power OFF
LED
Matrix
SW
Matrix
Encoder
Matrix
LED
Matrix
SW
Matrix
LED Driver Data
Ch Name LCD Control
LED Driver Control
CSCS
E-Bus拡張I/F
16MHz
CPU
M38039
EC_PNS1
STANDARD MODE
SLAVE ADDRESS 0
LED
Matrix
SW
Matrix
LED Sink
Driver
LED Sink
Driver
LED Sink
Driver
LED Sink
Driver
CPU
M38039
EC_PNS1
STANDARD MODE
SLAVE ADDRESS 1
LED
Matrix
SW
Matrix
LED Sink
Driver
LED Sink
Driver
LED Sink
Driver
LED Sink
Driver
16MHz
3 to 8 DEMUX
CPU
LPC1763
P-MD1
100MHz
I2C MODE
I2C 400kbit/s
I2C ID 0
3 to 8 DEMUX
Ch Name
LCD
LCD
Multi
Color
LED
Multi
Color
LED
Ch Name
LCD
LCD
Multi
Color
LED
Multi
Color
LED
Ch Name
LCD
LCD
Multi
Color
LED
Multi
Color
LED
Ch Name
LCD
LCD
Multi
Color
LED
Multi
Color
LED
Constant current
LED Sink driver
Constant current
LED Sink driver
3 to 8 DEMUX
Ch Name
LCD
LCD
Multi
Color
LED
Multi
Color
LED
Ch Name
LCD
LCD
Multi
Color
LED
Multi
Color
LED
Ch Name
LCD
LCD
Multi
Color
LED
Multi
Color
LED
Ch Name
LCD
LCD
Multi
Color
LED
Multi
Color
LED
Constant current
LED Sink driver
Constant current
LED Sink driver
LED Driver Data
Ch Name LCD Control
LED Driver Control
LED Source
Driver
LED Source
Driver
LED Source
Driver
LED Source
Driver
LED Source
Driver
LED Source
Driver
LED Source
Driver
LED Source
Driver
LED Source
Driver
LED Source
Driver
LED Source
Driver
LED Source
Driver
CPU
H8/3683
E-FDC
20MHz
100mm motorized fader (×8)
VHC541
(X2)
CPLD
EPM240T100
Motor driver
(×4)
8
30
16
8
16
CPU
H8/3683
E-FDC
20MHz
ID:0
100mm motorized fader (×8)
VHC541
(X2)
CPLD
EPM240T100
Motor driver
(×5)
8
30
16
8
16
E-Bus
E-Bus
LED Driver Data
Ch Name LCD Control
LED Driver Control
CSCS
Multi
Color
LED
Encoder
A,B,SW
QL5
DSP32
QL1
DSP16
PNL
PNR
ENC
FD2
PN2
PN16M
FD1M FD1S
PN16S
CN101(12P)
CN001
(12P)
CN101(12P)
CN102(16P)
CN502(8P)
CN401(8P)
CN302(17P),
CN303(14P)
CN201(14P),
CN202(17P)
CN101
(16P)
CN505(8P)
VR401-402
VR301-308
IC301-304
(16P)
IC101-105
(16P)
IC205(100P) IC005(100P)
IC203-204
(20P)
IC003-004
(20P)
IC002
(64P)
IC002
(64P)
IC202
(64P)
VR101-108
CN001
(12P)
X002
X001
VR301-308
IC301-304
(16P)
IC101-105
(16P)
IC205(100P) IC005(100P)
IC203-204
(20P)
IC003-004
(20P)
IC202
(64P)
VR101-108
X002
X001
CN602(7P)
CN002(7P)
CN506
(22P)
CN006
(9P)
CN401
(9P)
CN501
(22P)
CN301(21P)
CN506(22P)
CN302(17P),
CN303(14P)
CN201(14P),
CN202(17P)
CN302(22P)
CN301(21P)
CN601(7P) CN603(8P)
CN002
(7P)
X101
X301
IC101(64P) IC301(64P)
IC601-604
(28P)
IC601-604
(28P)
IC507
(20P)
IC507
(20P)
FT101-104
FT301-304
TR102-110
TR302-310
X101
X301
IC101(64P) IC301(64P)
IC601-604
(28P)
IC601-604
(28P)
IC302
(28P)
IC507
(20P)
IC507(20P)
IC504
(20P)
IC301
(20P)
IC502(100P)
FT101-104
FT301-304
TR102-114
TR302-318
