15-3 Regenerative Unit (RGU-2)
15-3
Regenerative Unit (RGU-2)
15-3-1
Basic specifications
RGU-2
Basic
specifications
External dimensions
Weight
Cable length
Regenerative voltage
Regenerative stop voltage
Ambient temperature
Storage temperature
Ambient humidity
Noise immunity
W40
×
H250
×
D157mm
1.1kg
300mm
Approx. 380V or more
Approx. 360V or less
0
:
to 40
:
-10
:
to 65
:
35 to 85% RH (no condensation)
Conforms to IEC61000-4-4 Level 2
Special
specifications
General
specifications
Model
Specification item
15-3-2

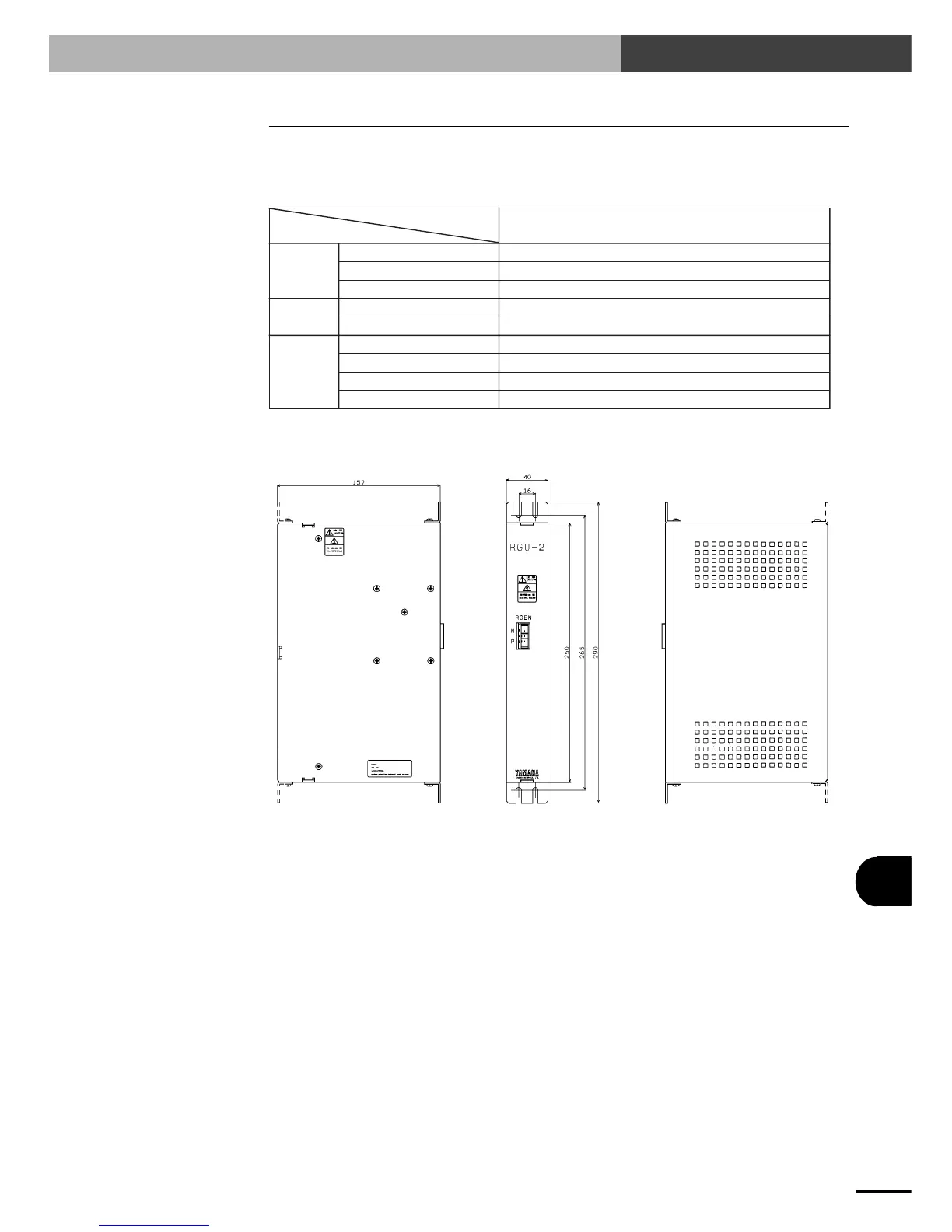

Dimensions
238
240
