Yamaha TMAX TECH MAX User Manual

Periodic maintenance and adjustment
8-32
8
TIP

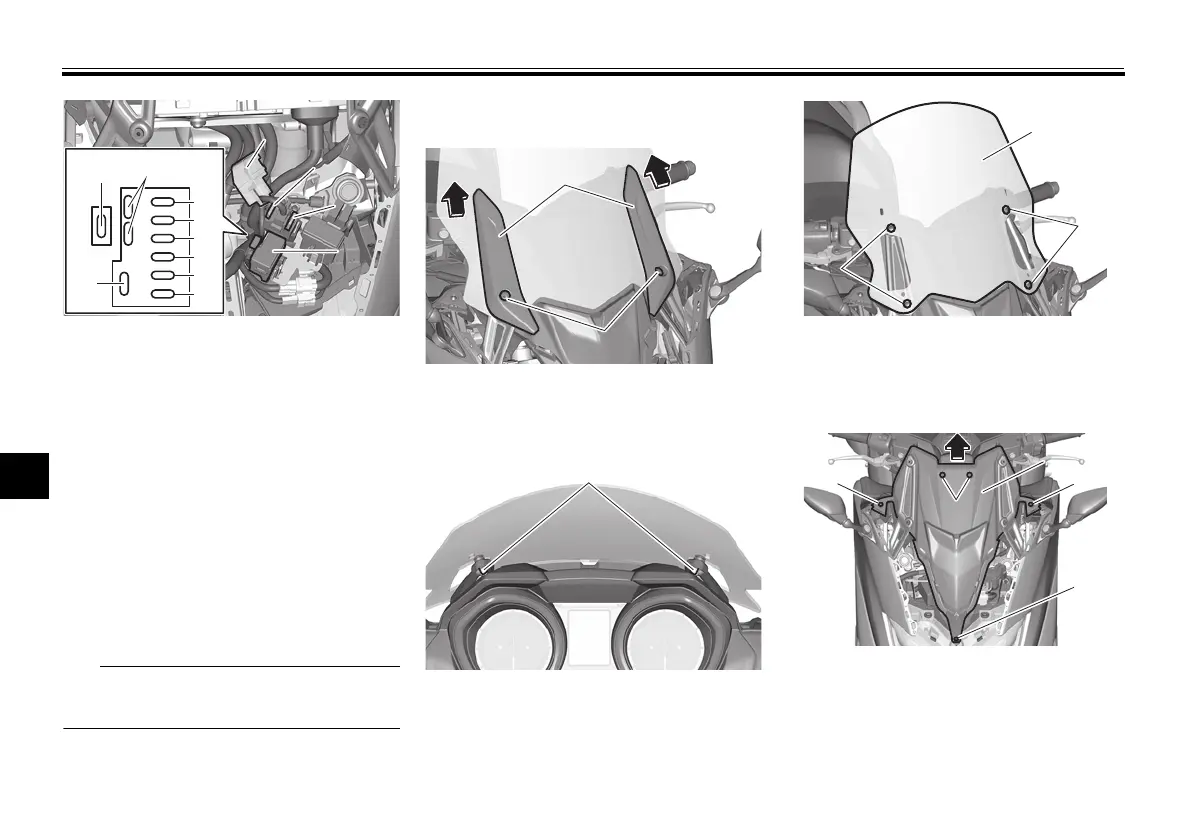

To access the main fuse, remove the
starter relay cover.
To access fuse box 2 and the main
fuse, proceed as follows.
1. Remove the screw access covers
by removing the quick fasteners.
2. Remove the caps.
3. Remove the windshield by remov-
ing the screws.
4. Remove the inner panel by remov-
ing the bolts and quick fasteners.
5. Install the inner panel by installing
the bolts and quick fasteners.
1. Starter relay cover
2. Main fuse
3. Spare main fuse
4. Fuse box 2
5. Signaling system fuse
6. Ignition fuse
7. Taillight fuse
8. Radiator fan motor fuse
9. Fuel injection system fuse
10.Backup fuse
11.Spare fuse
12.Spare fuse (XP560D)
13.Windshield motor fuse (XP560D)
14.Baggage fuse (XP560E)
5
6
7
8
9
10
12
13,14 11
11
2
3
2
3
44
1. Screw access cover
2. Quick fastener
1. Cap
1
2
1
2
1
1. Windshield
2. Screw
1. Inner panel
2. Bolt
3. Quick fastener
1
2
22
1
2
2
33
2
UB3TE0E0.book Page 32 Tuesday, September 17, 2019 9:35 AM

Yamaha TMAX TECH MAX Specifications

General

Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valves
Displacement	562cc
Bore x Stroke	70.0 mm x 73.0 mm
Compression Ratio	10.9:1
Fuel System	Fuel Injection
Transmission	V-Belt Automatic
Front Suspension	Telescopic forks
Rear Suspension	Swingarm
Front Brake	Hydraulic dual disc, Ø267 mm
Rear Brake	Hydraulic single disc, Ø282 mm
Overall Length	2, 200 mm
Overall Width	765 mm
Seat Height	800 mm
Wheelbase	1, 575 mm
Wet Weight	220 kg
Fuel Tank Capacity	15 litres
Lubrication System	Wet sump
Ignition System	TCI
Starter System	Electric
Front Suspension Travel	120 mm
Rear Suspension Travel	117 mm
Minimum Ground Clearance	135 mm
Maximum Torque	55.7 Nm @ 5, 250 rpm
Front Tyre	120/70R15
Rear Tyre	160/60R15
Overall Height	1, 420 mm - 1, 555 mm (adjustable windscreen)
