Instrument and control functions
5-6
5
Fuel meter
The fuel meter indicates the amount of
fuel in the fuel tank. The display seg-
ments of the fuel meter disappear from
“F” (full) towards “E” (empty) as the fuel
level decreases. When the last seg-
ment starts flashing, refuel as soon as
possible.
TIP
If a problem is detected in the fuel me-
ter electrical circuit, the fuel meter will
flash repeatedly. Have a Yamaha deal-
er check the vehicle.
Coolant temperature meter
The coolant temperature varies with
changes in the weather and engine
load. If the top segment starts flashing,
the information display automatically
changes to “C-TEMP” and “Hi” flash-
es. Stop the vehicle and let the engine
cool. (See page 8-37.)
TIP
The information display cannot be
changed while the engine is overheat-
ing.
NOTICE
ECA10022
Do not continue to operate the en-
gine if it is overheating.
Eco indicator
This indicator comes on when the vehi-
cle is being operated in an environ-
mentally friendly, fuel-efficient manner.
The indicator goes off when the vehicle
is stopped.
TIP
Consider the following tips to reduce
fuel consumption:
 Avoid high engine speeds during
acceleration.
 Travel at a constant speed.

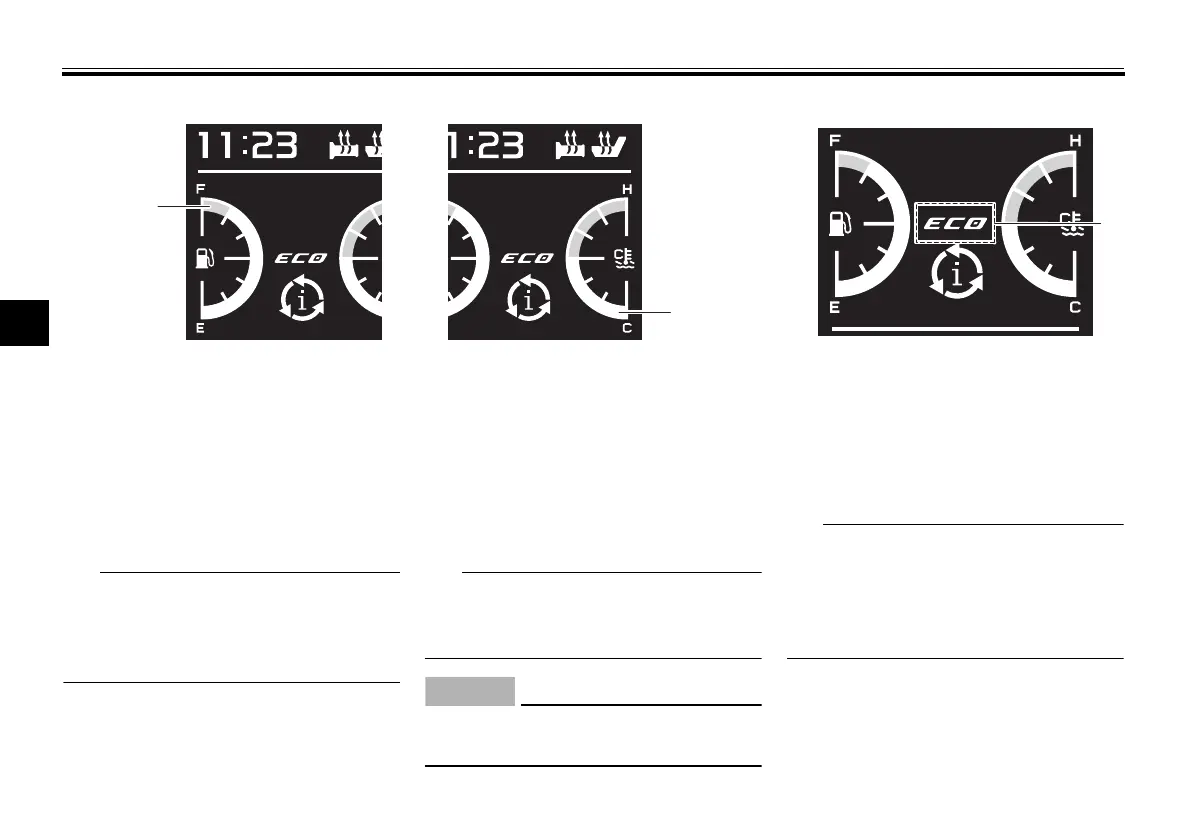

1. Fuel meter
1
1. Coolant temperature meter
1
1. Eco indicator “ECO”
1
UB3TE0E0.book Page 6 Tuesday, September 17, 2019 9:35 AM

Yamaha TMAX TECH MAX Specifications

General

Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valves
Displacement	562cc
Bore x Stroke	70.0 mm x 73.0 mm
Compression Ratio	10.9:1
Fuel System	Fuel Injection
Transmission	V-Belt Automatic
Front Suspension	Telescopic forks
Rear Suspension	Swingarm
Front Brake	Hydraulic dual disc, Ø267 mm
Rear Brake	Hydraulic single disc, Ø282 mm
Overall Length	2, 200 mm
Overall Width	765 mm
Seat Height	800 mm
Wheelbase	1, 575 mm
Wet Weight	220 kg
Fuel Tank Capacity	15 litres
Lubrication System	Wet sump
Ignition System	TCI
Starter System	Electric
Front Suspension Travel	120 mm
Rear Suspension Travel	117 mm
Minimum Ground Clearance	135 mm
Maximum Torque	55.7 Nm @ 5, 250 rpm
Front Tyre	120/70R15
Rear Tyre	160/60R15
Overall Height	1, 420 mm - 1, 555 mm (adjustable windscreen)
