Instrument and control functions
5-7
5
Drive mode display
This display indicates which drive
mode has been selected: “S” sporty or
“T” touring. (See page 4-3.)
V-belt replacement indicator
This indicator flashes every 20000 km
(12500 mi) when the V-belt needs to be
replaced.
After changing the V-belt, reset the V-
belt replacement indicator. (See page
5-13.)
TIP
If the V-belt is changed before the V-
belt replacement indicator flashes, the
indicator must be reset in order for the
next periodic V-belt change to be indi-
cated at the correct time.
Oil change indicator
This indicator flashes at the initial 1000
km (600 mi), then at 5000 km (3000 mi)
and every 5000 km (3000 mi) thereafter
to indicate that the engine oil should be
changed.
After changing the engine oil, reset the
oil change indicator. (See page 5-13.)
TIP
If the engine oil is changed before the
oil change indicator flashes, the indica-
tor must be reset in order for the next
periodic oil change to be indicated at
the correct time.
Grip warmer/Seat heater icons
Each icon will appear when the grip
warmer or seat heater is in use.

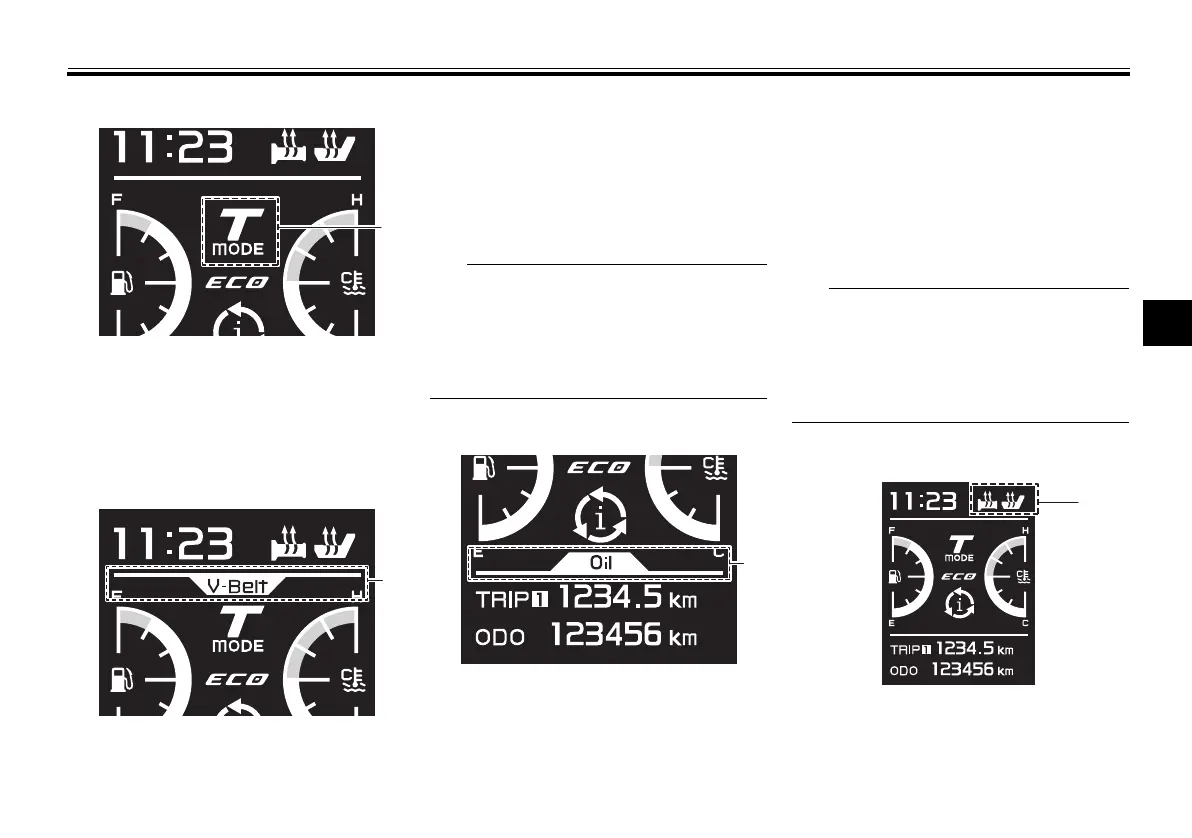

1. Drive mode display
1. V-belt replacement indicator “V-Belt”
1
1
1. Oil change indicator “Oil”
1
1. Grip warmer/Seat heater icons
1
UB3TE0E0.book Page 7 Tuesday, September 17, 2019 9:35 AM

Yamaha TMAX TECH MAX Specifications

General

Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valves
Displacement	562cc
Bore x Stroke	70.0 mm x 73.0 mm
Compression Ratio	10.9:1
Fuel System	Fuel Injection
Transmission	V-Belt Automatic
Front Suspension	Telescopic forks
Rear Suspension	Swingarm
Front Brake	Hydraulic dual disc, Ø267 mm
Rear Brake	Hydraulic single disc, Ø282 mm
Overall Length	2, 200 mm
Overall Width	765 mm
Seat Height	800 mm
Wheelbase	1, 575 mm
Wet Weight	220 kg
Fuel Tank Capacity	15 litres
Lubrication System	Wet sump
Ignition System	TCI
Starter System	Electric
Front Suspension Travel	120 mm
Rear Suspension Travel	117 mm
Minimum Ground Clearance	135 mm
Maximum Torque	55.7 Nm @ 5, 250 rpm
Front Tyre	120/70R15
Rear Tyre	160/60R15
Overall Height	1, 420 mm - 1, 555 mm (adjustable windscreen)
