Yamaha TMAX TECH MAX User Manual

Instrument and control functions
5-8
5

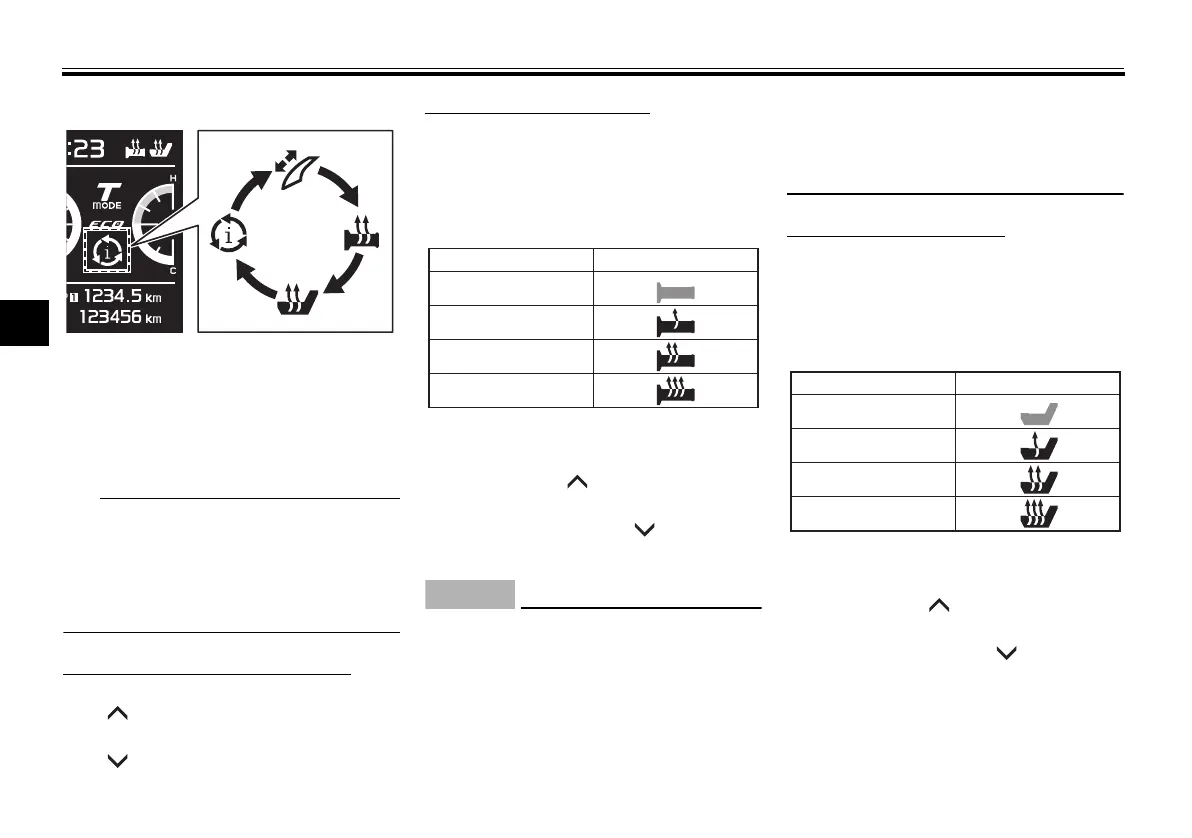

Function selection
Push the “MENU” switch to switch
among the windshield adjusting func-
tion, grip warmer adjusting function,
seat heater adjusting function, and in-
formation display selection function.
TIP
For XP560E: The windshield, grip
warmer, and seat heater cannot be se-
lected. However, the grip warmer can
be selected by attaching accessory
parts.
Adjusting the windshield position
To move the windshield up, push
the “ ” side of the select switch. To
move the windshield down, push
the “ ” side of the select switch.
Adjusting the grip warmer
This vehicle can be equipped with grip
warmers, which can only be used
when the engine is running. There are 4
grip warmer settings.
To increase the grip warmer tempera-
ture, push the “ ” side of the select
switch. To decrease the grip warmer
temperature, push the “ ” side of the
select switch.
NOTICE
ECA17932
 Be sure to wear gloves when
using the grip warmers.
 Do not use the grip warmers in
warm weather.
 If the handlebar grip or throttle
grip becomes worn or dam-
aged, stop using the grip warm-
ers and replace the grips.
Adjusting the seat heater
This vehicle can be equipped with a
seat heater, which can only be used
when the vehicle is running. There are
4 seat heater settings.
To increase the seat heater tempera-
ture, push the “ ” side of the select
switch. To decrease the seat heater
temperature, push the “ ” side of the
select switch.
Off
Low
Middle
DisplaySetting
High
Off
Low
Middle
DisplaySetting
High
