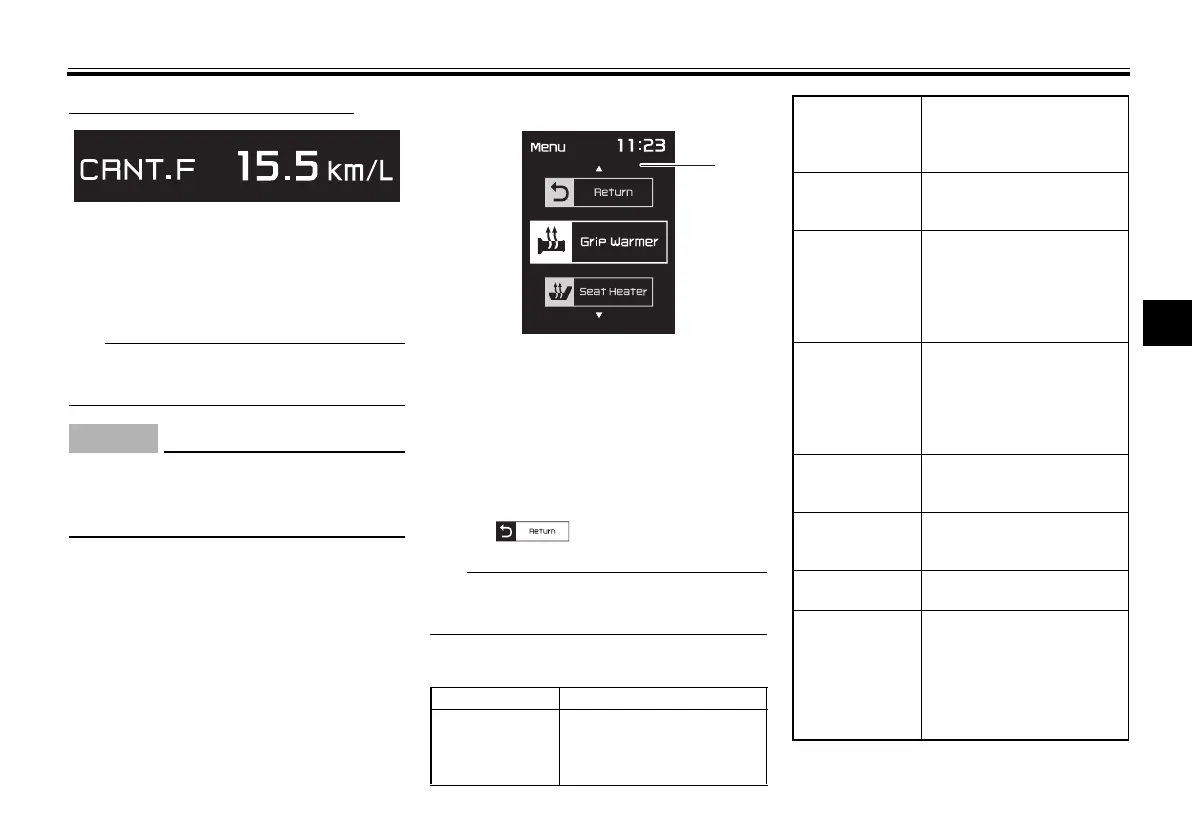

Instantaneous fuel consumption:
The instantaneous fuel consumption
mode “CRNT.F” can be set to “km/L”
or “L/100km”. For UK-spec vehicles:
“MPG”. (See page 5-14.)
TIP
If traveling at speeds under 10 km/h (6
mi/h), “– –.–” will be displayed.
NOTICE
ECA15474
If there is a malfunction, “– –.–” will
be continuously displayed. Have a
Yamaha dealer check the vehicle.
Setting mode
Stop the vehicle and then push the
“MENU” switch for 2 seconds to enter
the setting mode. To exit the setting
mode and return to the standard dis-
play mode, push the “MENU” switch
again for 2 seconds or
select “ ”.
TIP
When the malfunction indicator light is
on, setting mode cannot be entered.
Menu items
1. Setting mode display
Category Description
This function allows you to
set the low, middle, and
high settings to 10 tem-
perature levels.
1
Grip Warmer
This function allows you to
set the low, middle, and
high settings to 10 tem-
perature levels.
This function allows you to
turn the traction control
system on or off.
This function allows you to
check and reset the oil
change interval (indicator),
V-Belt change interval (in-
dicator), and the “FREE”
maintenance interval.
This function allows you to
switch the fuel consump-
tion units between
“L/100km” and “km/L”.
For UK-spec vehicles: this
function is not available.
This function allows you to
change the items shown in
3 information displays.
This function allows you to
adjust the brightness of
the instrument panel.
This function allows you to
set the clock.
This function allows you to
reset all items to their fac-
tory preset or default set-
tings; excepting the
odometer, clock, and
maintenance counter
items “Oil” and “V-Belt”.
Seat Heater
Traction Control
Maintenance
Unit
Display
Brightness
Cloc
k
All Reset
UB3TE0E0.book Page 11 Tuesday, September 17, 2019 9:35 AM

Yamaha TMAX TECH MAX Specifications

General

Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valves
Displacement	562cc
Bore x Stroke	70.0 mm x 73.0 mm
Compression Ratio	10.9:1
Fuel System	Fuel Injection
Transmission	V-Belt Automatic
Front Suspension	Telescopic forks
Rear Suspension	Swingarm
Front Brake	Hydraulic dual disc, Ø267 mm
Rear Brake	Hydraulic single disc, Ø282 mm
Overall Length	2, 200 mm
Overall Width	765 mm
Seat Height	800 mm
Wheelbase	1, 575 mm
Wet Weight	220 kg
Fuel Tank Capacity	15 litres
Lubrication System	Wet sump
Ignition System	TCI
Starter System	Electric
Front Suspension Travel	120 mm
Rear Suspension Travel	117 mm
Minimum Ground Clearance	135 mm
Maximum Torque	55.7 Nm @ 5, 250 rpm
Front Tyre	120/70R15
Rear Tyre	160/60R15
Overall Height	1, 420 mm - 1, 555 mm (adjustable windscreen)
