FEATURES
1-5
EAS5UXB003
INSTRUMENT FUNCTION
Multi-function display
WARNING
EWA5UXB001
Be sure to stop the motorcycle before mak-
ing any setting change to the multi-function
display.
The multi-function display is equipped with the
following:
●
an odometer (which shows the total distance
traveled)
●
two trip meters (which show the distance trav-
eled since they were last set to zero)
●
a fuel reserve trip meter (which shows the dis-
tance traveled on the fuel reserve)
●
a fuel meter
●
a clock
●
a self-diagnosis device
NOTE:
Be sure to turn the key to “ON” before using the
“SELECT” and “RESET” buttons.
Odometer and trip meter modes
Pushing the “SELECT” button switches the dis-
play between the odometer mode “ODO” and
the trip meter modes “TRIP 1” and “TRIP 2” in
the following order:
ODO
→
TRIP 1
→
TRIP 2 → ODO
When approximately 4.5 L (1.19 US gal) (0.99
Imp.gal) of fuel remains in the fuel tank, the dis-
play will automatically change to the fuel reserve
tripmeter mode “TRIP F” and start counting the
distance traveled from that point. In that case,
pushing the “SELECT” button switches the dis-
play between the various trip meter and odome-
ter modes in the following order:
TRIP F → ODO → TRIP 1 → TRIP 2 → TRIP F
To reset a trip meter, select it by pushing the
“SELECT” button, and then push the “RESET”
button for at least two seconds. If you do not re-
set the fuel reserve tripmeter manually, it will re-
set itself automatically and the display will return
to the prior mode after refueling and traveling 5
km (3 mi).

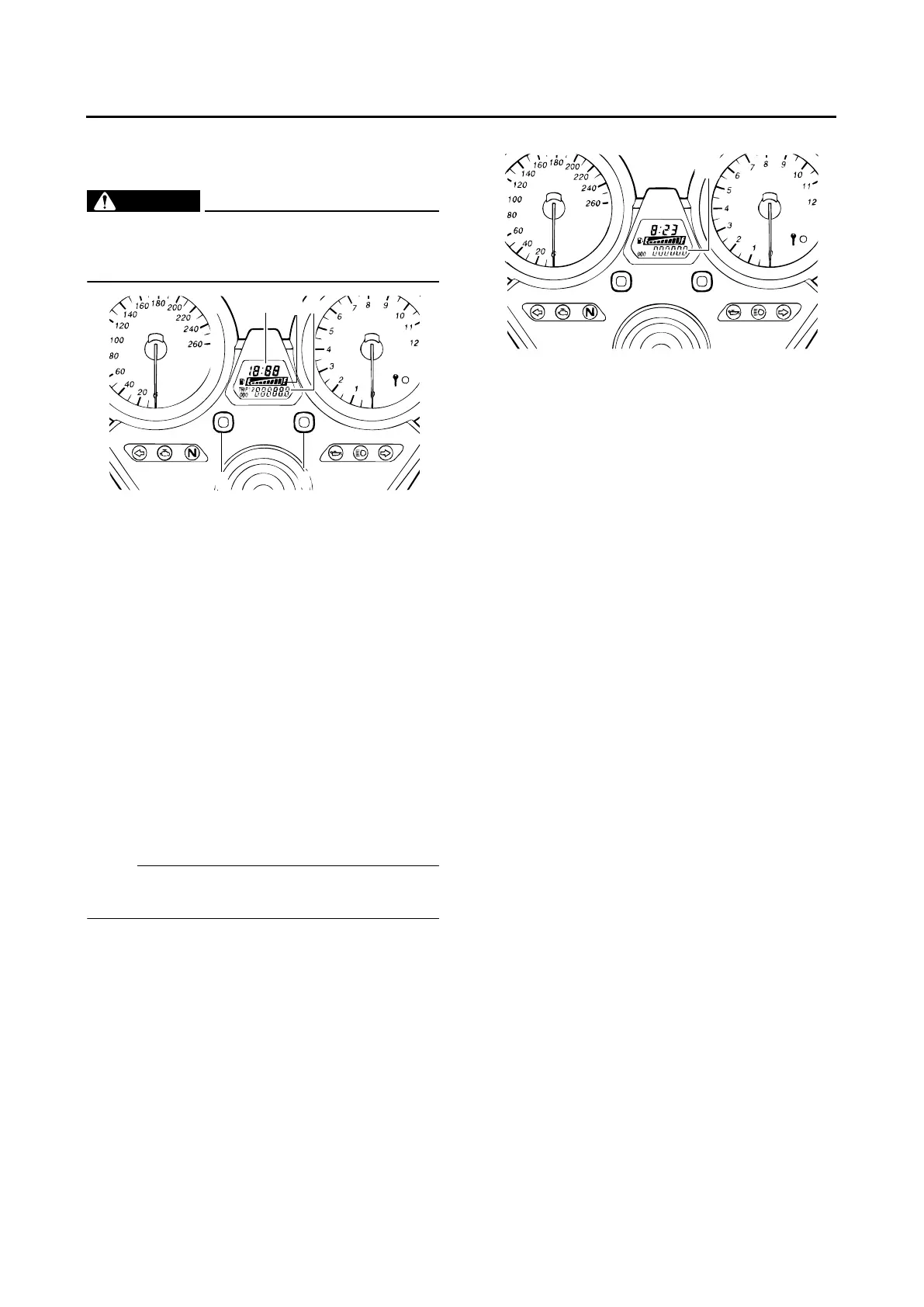

1. Fuel meter
2. Clock
3. Odometer/Trip meter/Fuel reserve trip meter/
Self-diagnostic function
4. RESET button
5. SELECT button
