ENGINE REMOVAL
5-4
EAS23720

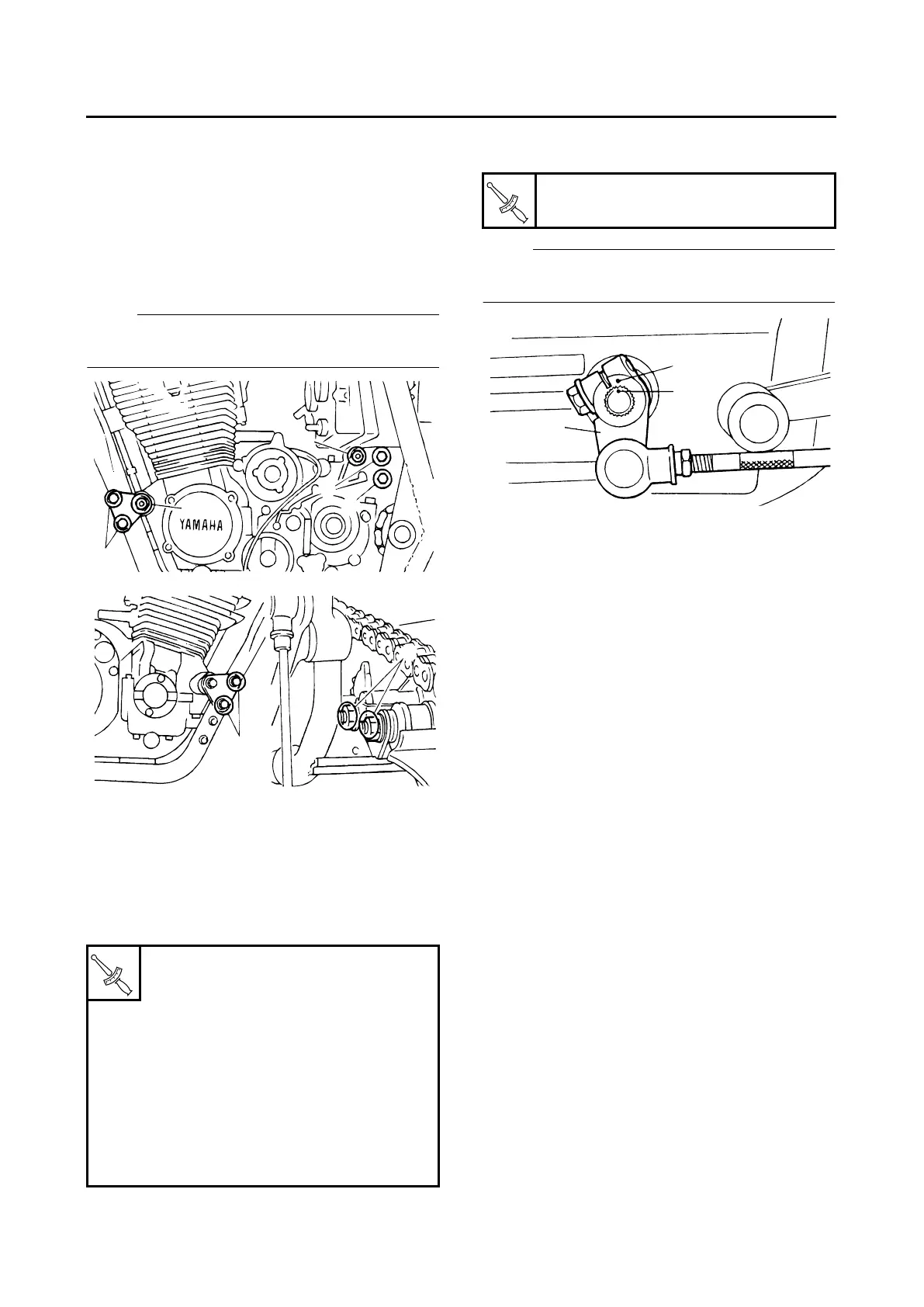

INSTALLING THE ENGINE
1. Install:
● Engine bracket bolt (rear upper) “1”
● Engine bracket bolt (rear upper) “2”
● Engine mounting nut (rear upper) “3”
● Engine bracket bolt (front) “4”
● Engine mounting nut (front) “5”
● Engine mounting nut (rear lower) “6”
NOTE:
Do not fully tighten the bolts. Temporarily tight-
en)
2. Tighten:
● Engine bracket bolt (rear upper)
● Engine bracket bolt (rear upper)
● Engine mounting nut (rear upper)
● Engine bracket bolt (front)
● Engine mounting nut (front)
● Engine mounting nut (rear lower)
3. Install:
● Shift arm “1”
NOTE:
Align the punch mark “a” in the shift shaft with
the punch mark “b” in the shift arm.
4. Adjust:
● Shift pedal position
Refer to “ADJUSTING THE SHIFT PEDAL”
on page 3-24.
Engine bracket bolt (rear upper)
88 Nm (8.8 m•kg, 64 ft•lb)
Engine bracket bolt (rear upper)
48 Nm (4.8 m•kg, 35 ft•lb)
Engine mounting nut (rear upper)
55 Nm (5.5 m•kg, 40 ft•lb)
Engine bracket bolt (front)
30 Nm (3.0 m•kg, 22 ft•lb)
Engine mounting nut (front)
64 Nm (6.4 m•kg, 46 ft•lb)
Engine mounting nut (rear lower)
64 Nm (6.4 m•kg, 46 ft•lb)
5
1
2
3
4
6
4
T
R
.
.
Shift arm mounting bolt
10 Nm (1.0 m•kg, 7.2 ft•lb)
T
R
.
.
1
b
a
