ENGINE
3-4
EAS20470
ENGINE
EAS20490

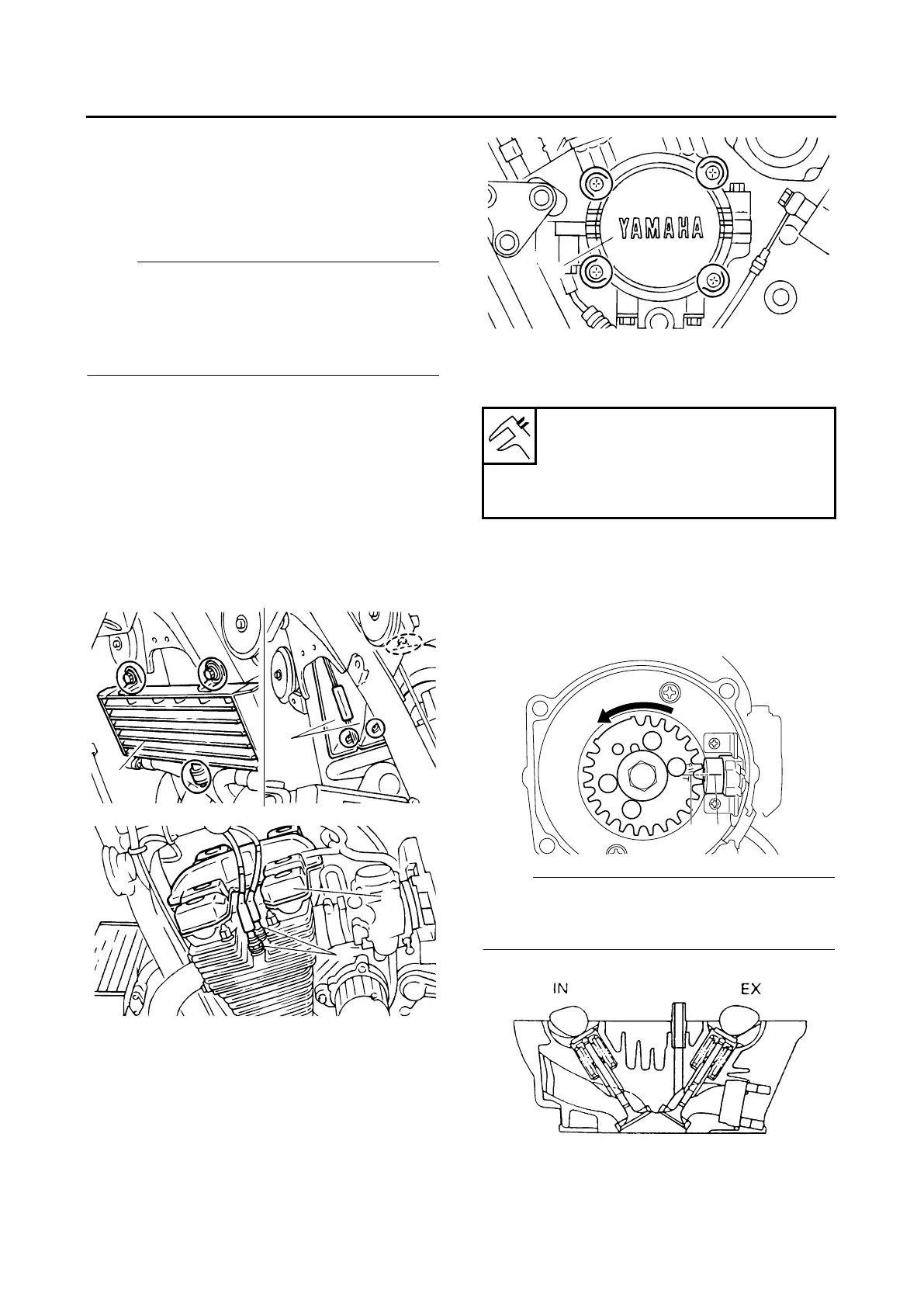

ADJUSTING THE VALVE CLEARANCE
The following procedure applies to all of the
valves.
NOTE:
● Valve clearance adjustment should be made
on a cold engine, at room temperature.
● When the valve clearance is to be measured or
adjusted, the piston must be at top dead center
(TDC) on the compression stroke.
1. Remove:
● Oil cooler “1”
● Air scoop “2”
Refer to “ENGINE REMOVAL” on page 5-1.
● Air induction system
Refer to “AIR INDUCTION SYSTEM” on
page 6-13.
● Spark plug “3”
● Cylinder head cover “4”
● Timing plate cover “5”
Refer to “CAMSHAFTS” on page 5-5.
2. Measure:
● Valve clearance
Out of specification → Adjust.
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Turn the crankshaft clockwise.
b. When the piston is at TDC on the compres-
sion stroke, align the mark “a” on the pickup
coil rotor with the mark “b” on the crankcase
cover. (TDC)
NOTE:
TDC on the compression stroke can be found
when the camshaft lobes are turned away from
each other.
c. Measure the valve clearance with a thickness
gauge “1”.
1
2
4
3
Valve clearance (cold)
Intake
0.11–0.15 mm (0.0043–0.0059 in)
Exhaust
0.16–0.20 mm (0.0063–0.0079 in)
5
ab

Yamaha XJR1300 2007 Specifications

General

Displacement	1251 cc
Bore x Stroke	79.0 mm x 63.8 mm
Compression Ratio	9.7:1
Fuel System	Fuel Injection
Ignition	TCI
Transmission	5-speed
Final Drive	Chain
Front Suspension	Telescopic fork
Front Brakes	Dual disc
Rear Brakes	Single disc
Front Tire	120/70 ZR17
Rear Tire	180/55 ZR17
Width	765 mm
Height	1, 115 mm
Seat Height	795 mm
Ground Clearance	135 mm
Fuel Capacity	21 liters
Engine Type	Air-cooled, 4-stroke, DOHC, 4-valve
Max Power	72 kW (98 PS) @ 8, 000 rpm
Max Torque	108.4 Nm @ 6, 000 rpm
Rear Suspension	Swingarm
