OIL PAN
5-59
EAS5UXB002
OIL PAN

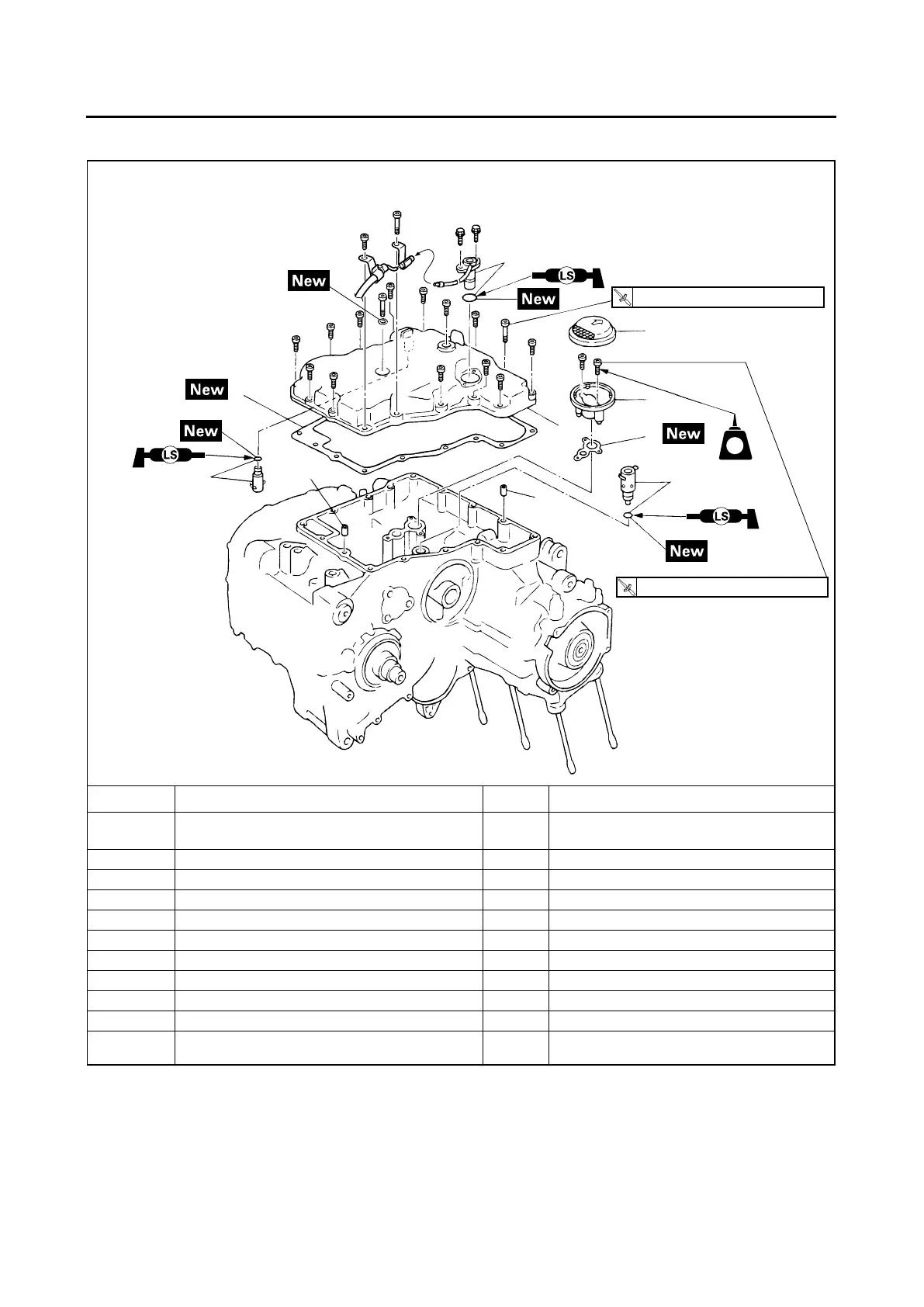

REMOVING THE OIL PAN
Order Job/Parts to remove Q’ty Remarks
Engine
Refer to
“ENGINE REMOVAL” on page
5-1.
1 Oil level switch/O-ring 1/1
2 Oil pan 1
3 Dowel pin 2
4 Oil pan gasket 1
5 Relief valve (Large) /O-ring 1/1
6 Relief valve (Small)/O-ring 1/1
7 Oil strainer 1
8 Oil strainer housing 1
9 Gasket 1
For installation, reverse the removal proce-
dure.
LT
4
6
3
3
2
5
9
8
7
1
T
R
.
.
10 Nm (1.0 m • kg, 7.2 ft • Ib)
T
R
.
.
10 Nm (1.0 m • kg, 7.2 ft • Ib)
